Fluke 718-30G
| Attribut | Wert |
|---|---|
| Druckbereich | 0 bis 30 psi (0 bis 2 bar) |
| Druckmedium | Luft und nicht brennbare, nicht korrosive Gase |
| Genauigkeit | ±0,1 % des Messbereichsendwerts |
| Pumpentyp | Integrierte Handpumpe |
| Druckanzeige | Digitales LCD-Display |
| Druckeinheiten | psi, bar, kPa, mbar, kg/cm², inHg, mmHg, inH₂O |
| Betriebstemperatur | -10 °C bis +50 °C |
| Stromversorgung | 9-V-Batterie (6F22) |
| Schutzart | IP40 |
| Gewicht | Ca. 680 g (mit Batterie) |
| Model | 718-30G |
|---|

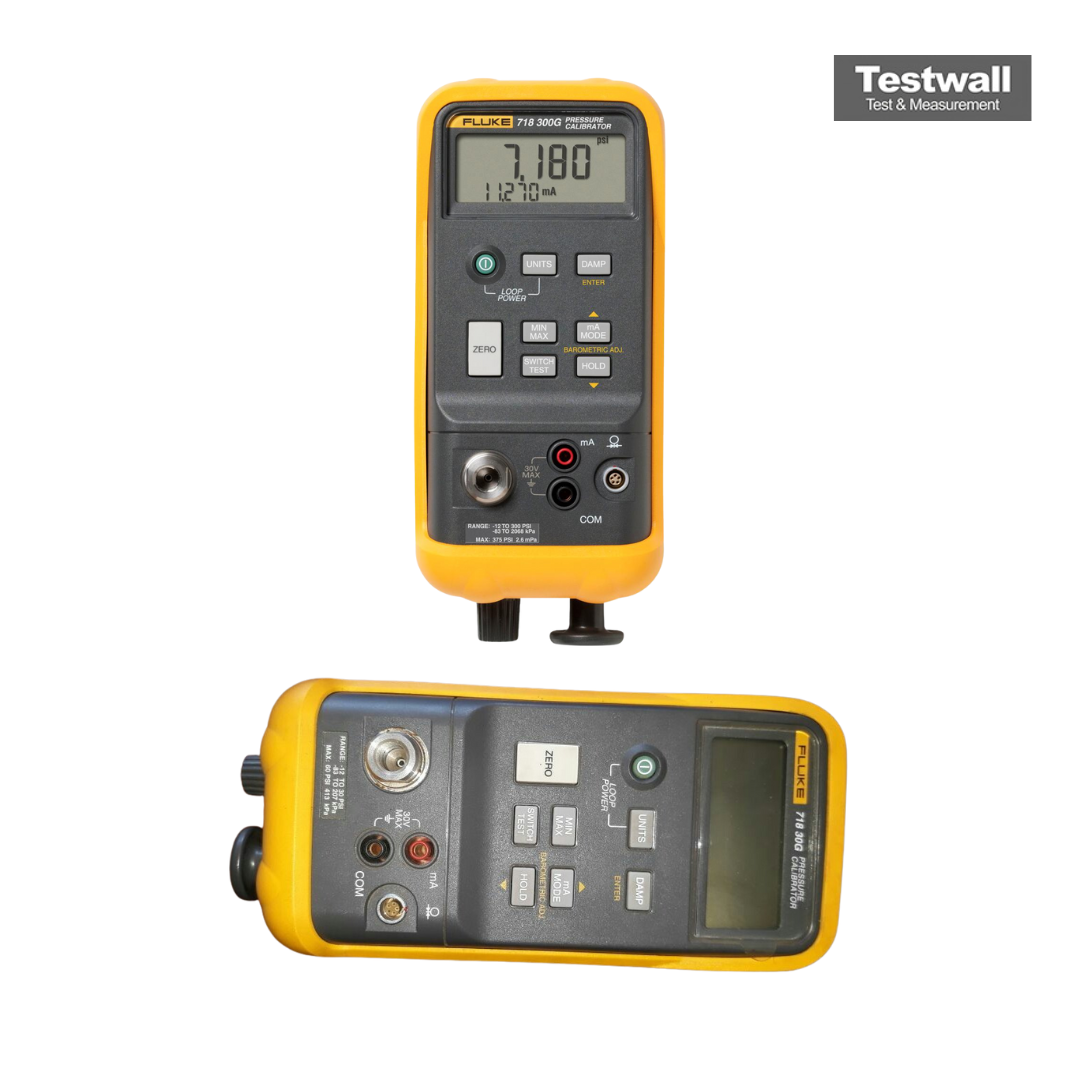

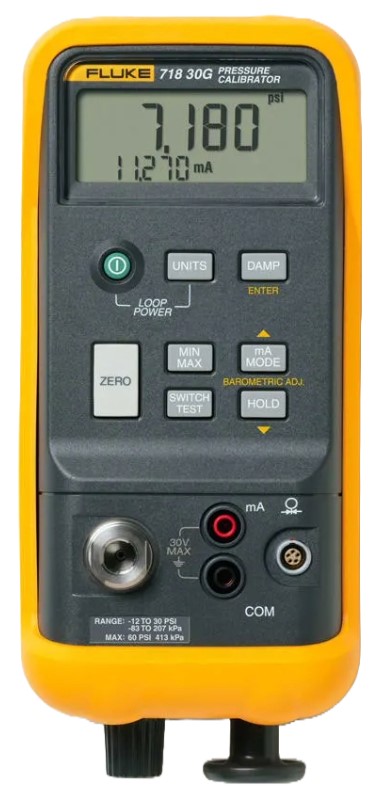

Fluke 718-30G Pressure Calibrator
The Fluke 718-30G Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges, and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). Fluke 718-30G is having a unique easy-to-clean integrated pump which helps protect it from damage and provides the ability to service the pump without disassembly, even in the field.
Fluke 718-30G Pressure Calibrator features Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device. With an easy-to-use error % calculation you can make pass/fail decisions quickly. Meaning you can make decisions in the field without having to analyze the results later. The min/max/hold function also makes it easy to capture changing measurements for comparison or documentation. Fluke 718-30G features the integrated pressure switch test function, and best-in-class mA accuracy (0.015%) which provide a high level of measurement confidence and even broader workload coverage.
Specifications for the Fluke 718-30G Pressure Calibrator Include:
| Range | -12 PSI to 30 PSI, (-850 mbar to 2 bar, -85 to 206.84 kPa) |
| Resolution | 0.001 psi, 0.1 mbar |
| Over pressure | 2x Full Scale |
| Functions | Zero, Min, Max, Hold, Damp |
