Fluke
Fluke 750P04
Pressure Module, 0 psi to 15 psi (0 to 1 bar), (0 to 100 kPa)
0 bis 2,5 bar (0 bis 36 psi) Druckbereich
Relativdruck Drucktyp
±0,05% des Messbereichsendwerts Genauigkeit
Kompatibel mit Fluke 750-Serie Documenting Process Calibrators Ausgangsanschluss
Gase und Flüssigkeiten, die mit Edelstahl kompatibel sind Medienkompatibilität
| Attribut | Wert |
|---|---|
| Druckbereich | 0 bis 2,5 bar (0 bis 36 psi) |
| Drucktyp | Relativdruck |
| Genauigkeit | ±0,05% des Messbereichsendwerts |
| Ausgangsanschluss | Kompatibel mit Fluke 750-Serie Documenting Process Calibrators |
| Medienkompatibilität | Gase und Flüssigkeiten, die mit Edelstahl kompatibel sind |
| Prozessanschluss | 1/4 NPT männlich |
| Betriebstemperatur | -10°C bis 50°C |
| Lagertemperatur | -20°C bis 70°C |
| Gehäusematerial | Edelstahl |
| Schutzart | IP54 |
Fluke 750P04 Options:
- 750P04 - FLUKE-750P00 - Pressure Module, 0 psi to 1 psi in H2O (0 to 2.5 mBar), (0 to 0.25 kPa)
- 750P04 - FLUKE-750P01 - Pressure Module, 0 psi to 10 psi in H2O (0 to 25 mBar), (0 to 2.5 kPa)
- 750P04 - FLUKE-750P02 - Pressure Module, 0 psi to 1 psi (0 to 70 mBar), (0 to 7 kPa)
- 750P04 - FLUKE-750P03 - Pressure Module, 0 psi to 5 psi (0 to 350 mBar), (0 to 35 kPa)
- 750P04 - FLUKE-750P22 - Pressure Module, 0 psi to 1 psi (0 to 70 mBar), (0 to 7 kPa)
- 750P04 - FLUKE-750P23 - Pressure Module, 0 psi to 5 psi (0 to 350 mBar), (0 to 35 kPa)
- 750P04 - FLUKE-750P24 - Pressure Module, 0 psi to 15 psi (0 to 1 bar), (0 to 100 kPa)
- 750P04 - FLUKE-750P05 - Pressure Module, 0 psi to 30 psi (0 to 2 bar), (0 to 200 kPa)
- 750P04 - FLUKE-750P06 - Pressure Module, 0 psi to 100 psi (0 to 7 bar), (0 to 700 kPa)
- 750P04 - FLUKE-750P27 - Pressure Module, 0 psi to 300 psi (0 to 20 bar), (0 to 2000 kPa)
- 750P04 - FLUKE-750P07 - Pressure Module, 0 psi to 500 psi (0 to 35 bar), (0 to 3500 kPa)
- 750P04 - FLUKE-750P08 - Pressure Module, 0 psi to 1000 psi (0 to 70 bar), (0 to 7000 kPa)
- 750P04 - FLUKE-750P09 - Pressure Module, 0 psi to 1500 psi (0 to 100 bar), (0 to 10 MPa)
- 750P04 - FLUKE-750P2000 - Pressure Module, 0 psi to 2000 psi (0 to 140 bar), (0 to 14 MPa)
- 750P04 - FLUKE-750P29 - Pressure Module, 0 psi to 3000 psi (0 to 200 bar), (0 to 20 MPa)
- 750P04 - FLUKE-750P30 - Pressure Module, 0 psi to 5000 psi (0 to 340 bar), (0 to 34 MPa)
- 750P04 - FLUKE-750P31 - Pressure Module, 0 psi to 10000 psi (0 to 700 bar), (0 to 70 MPa)
- 750P04 - FLUKE-750PA3 - Pressure Module, 0 psi to 5 psi (0 to 350 mBar), (0 to 35 kPa)
- 750P04 - FLUKE-750PA4 - Pressure Module, 0 psi to 15 psi (0 to 1 bar), (0 to 100 kPa)
- 750P04 - FLUKE-750PA5 - Pressure Module, 0 psi to 30 psi (0 to 2 bar), (0 to 200 kPa)
- 750P04 - FLUKE-750PA6 - Pressure Module, 0 psi to 100 psi (0 to 7 bar), (0 to 700 kPa)
- 750P04 - FLUKE-750PA27 - Pressure Module, 0 psi to 300 psi (0 to 20 bar), (0 to 2000 kPa)
- 750P04 - FLUKE-750PA7 - Pressure Module, 0 psi to 500 psi (0 to 35 bar), (0 to 3500 kPa)
- 750P04 - FLUKE-750PA8 - Pressure Module, 0 psi to 1000 psi (0 to 70 bar), (0 to 7000 kPa)
- 750P04 - FLUKE-750PA9 - Pressure Module, 0 psi to 1500 psi (0 to 100 bar), (0 to 10 MPa)
- 750P04 - FLUKE-750PV3 - Pressure Module, -5 psi (-350 mBar), (-35 kPa)
- 750P04 - FLUKE-750PV4 - Pressure Module, -15 psi (-1 bar), (-100 kPa)
- 750P04 - FLUKE-750PD2 - Pressure Module, -1 psi to 1 psi (-70 to 70 mBar), (-7 to 7 kPa)
- 750P04 - FLUKE-750PD3 - Pressure Module, -5 psi to 5 psi (-350 to 350 mBar), (-35 to 35 kPa)
- 750P04 - FLUKE-750PD10 - Pressure Module, -10 psi to 10 psi (-0.7 to 0.7 bar), (-70 to 70 kPa)
- 750P04 - FLUKE-750PD4 - Pressure Module, -15 psi to 15 psi (-1 to 1 bar), (-100 to 100 kPa)
- 750P04 - FLUKE-750PD5 - Pressure Module, -15 psi to 30 psi (-1 to 2 bar), (-100 to 200 kPa)
- 750P04 - FLUKE-750PD50 - Pressure Module, -15 psi to 50 psi (-1 to 3.5 bar), (-100 to 350 kPa)
- 750P04 - FLUKE-750PD6 - Pressure Module, -15 psi to 100 psi (-1 to 7 bar), (-100 to 700 kPa)
- 750P04 - FLUKE-750PD7 - Pressure Module, -15 psi to 200 psi (-1 to 14 bar), (-100 to 1400 kPa)
- 750P04 - FLUKE-750PD27 - Pressure Module, -15 psi to 300 psi (-1 to 20 bar), (-100 to 2000 kPa)
- 750P04 - FLUKE-750R04 - Pressure Module, 0 psi to 15 psi (0 to 1 bar), (0 to 100 kPa)
- 750P04 - FLUKE-750R06 - Pressure Module, 0 psi to 100 psi (0 to 7 bar), (0 to 700 kPa)
- 750P04 - FLUKE-750R27 - Pressure Module, 0 psi to 300 psi (0 to 20 bar), (0 to 2000 kPa)
- 750P04 - FLUKE-750R07 - Pressure Module, 0 psi to 500 psi (0 to 35 bar), (0 to 3500 kPa)
- 750P04 - FLUKE-750R08 - Pressure Module, 0 psi to 1000 psi (0 to 70 bar), (0 to 7000 kPa)
- 750P04 - FLUKE-750R29 - Pressure Module, 0 psi to 3000 psi (0 to 200 bar), (0 to 20 MPa)
- 750P04 - FLUKE-750R30 - Pressure Module, 0 psi to 5000 psi (0 to 340 bar), (0 to 34 MPa)
- 750P04 - FLUKE-750R31 - Pressure Module, 0 psi to 10000 psi (0 to 700 bar), (0 to 70 MPa)
- 750P04 - FLUKE-750RD5 - Pressure Module, -15 psi to 30 psi (-1 to 2 bar), (-100 to 200 kPa)
- 750P04 - FLUKE-750RD6 - Pressure Module, -12 psi to 100 psi (-0.8 to 7 bar), (-80 to 700 kPa)
- 750P04 - FLUKE-750RD27 - Pressure Module, -12 psi to 300 psi (-0.8 to 20 bar), (-80 to 2000 kPa)
- 750P04 - 700PTP-1 - Pneumatic Test Pump, vacuum to -13 psi/-0.9 bar or pressure to 600 psi/40 bar
- 750P04 - 700HTP-2 - Hydraulic Test Pump, pressures up to 10000 psi/700 bar
- 750P04 - 700LTP-1 - Low-Pressure Test Pump, vacuum to -12 psi/-.85 bar or pressures to 100 psi/6.9 bar
- 750P04 - 700HTH-1 - Hydraulic Test Hose, 10000 psi/700 bar working pressure test hose
- 750P04 - 700PRV-1 - Pressure Relief Valve Kit, two relief valves (1360 and 5450 psi) for use with 700HTP-1
- 750P04 - 700PMP - Pressure Pump, hand-operated, pressures up to 150 psi/1000 kPa
| Model | 750P04 |
|---|

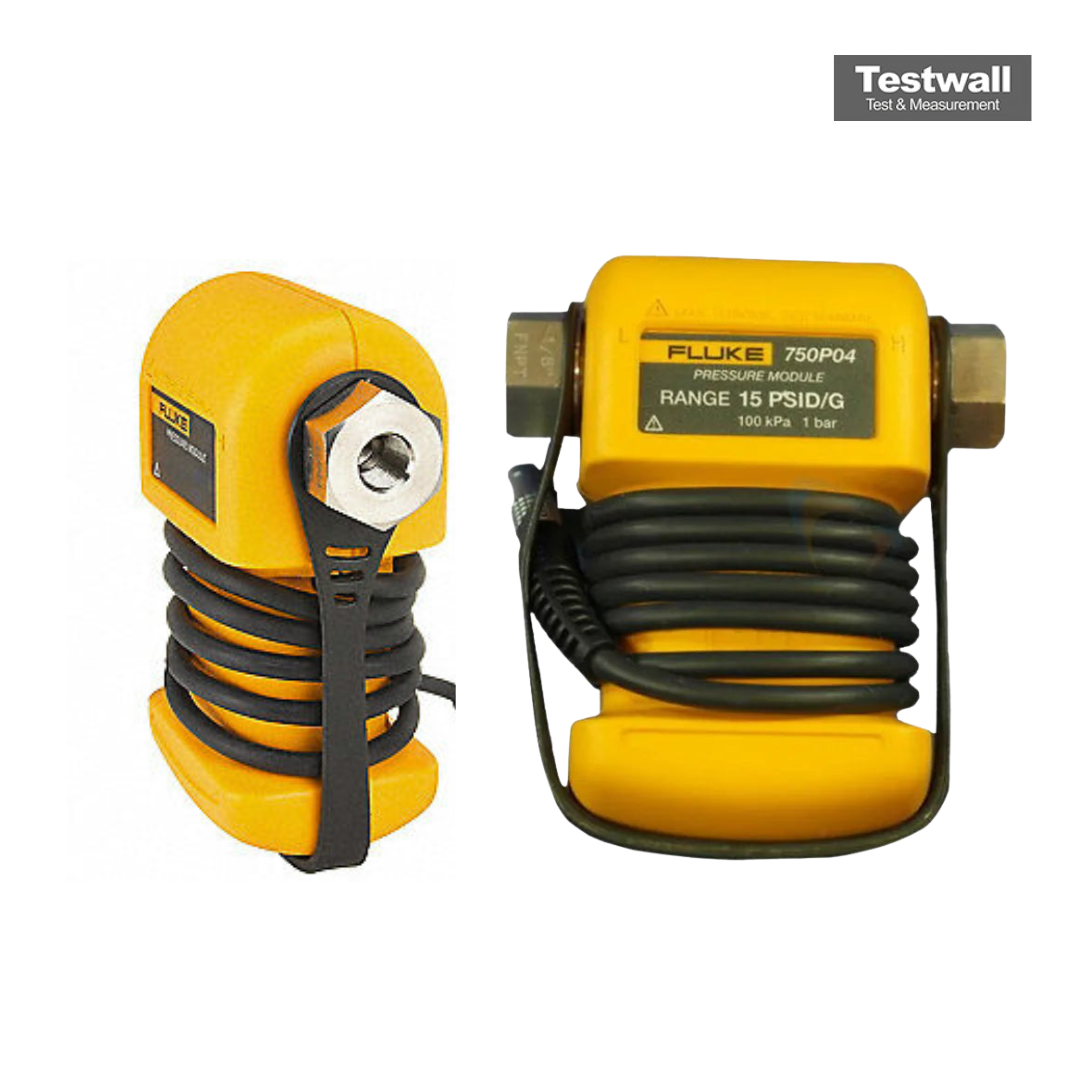

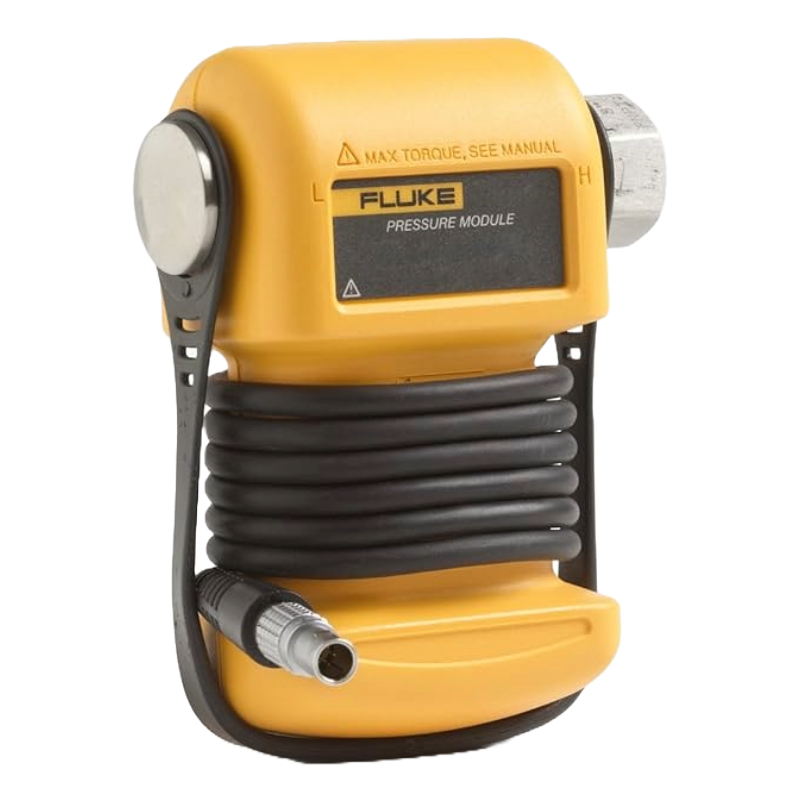

Fluke 750P04 Pressure Module
The Fluke 750P04 Pressure Module is a differential pressure module that turns the Fluke multifunction calibrator into a full-fledged pressure calibrator to measure pressure. This pressure module is highly accurate, with specifications that apply from 0 °C to 50 °C (32 °F to 122 °F), a feature that sets them apart from other pressure calibrators. Fluke 750P04 Pressure Module also extends the measurement range of Fluke pressure calibrators.
Fluke 750P04 Pressure Module is easy to use as to measure pressure, you have to connect the pressure module to a pressure source or hand pump and then connect the pressure module cable to the calibrator. Now if you apply pressure from the pressure source it will display digitally on the calibrator. At the touch of a button, the pressure may be displayed in up to 11 diffe engineering units. Fluke 750P04 Pressure Module has its own microprocessor, allowing it to run the measurement circuitry and to communicate digitally with a calibrator which eliminates errors due to poor connections and electrical interference.
Specifications for the Fluke 750P04 Pressure Module Include:
| Parameter / range | 0 to 15 psi (0 to 1 bar) |
| Burst rating | 3X |
| Reference uncertainty | ±0.0175% |
| Total uncertainty 6-month | ±0.04% |
