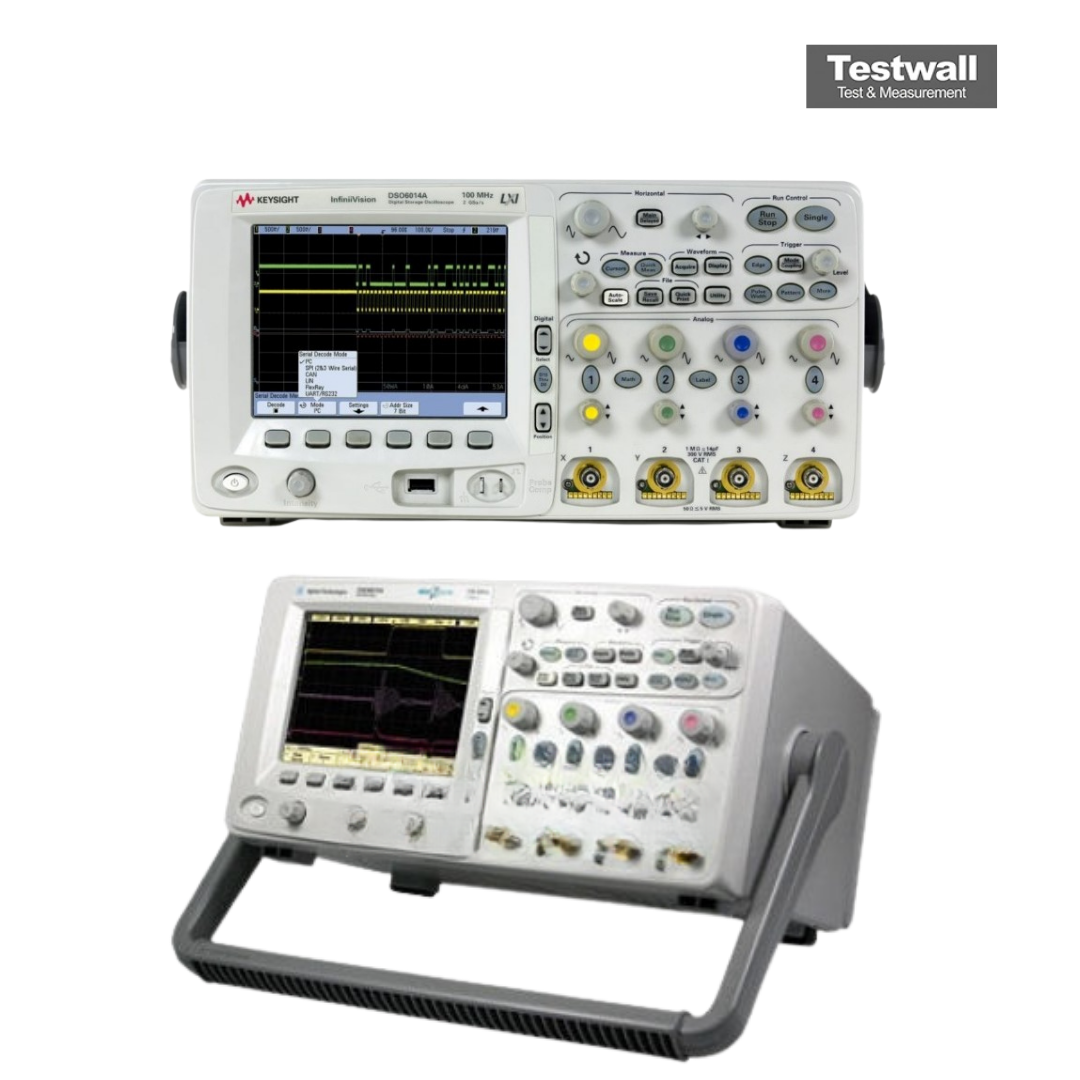

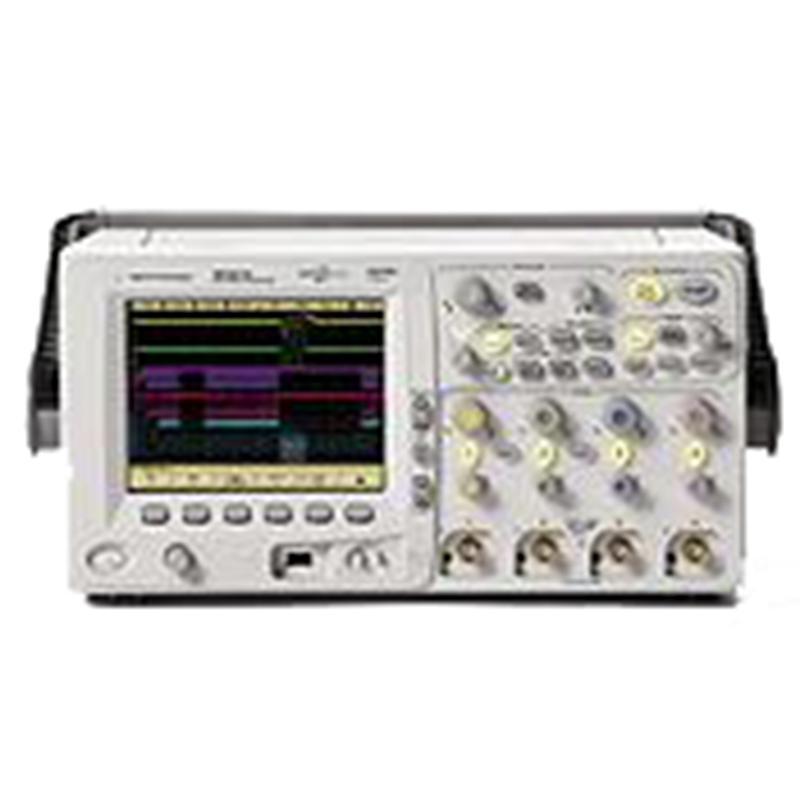

Keysight (Agilent) DSO6014A 4 Ch 100 MHz Digital Storage Oscilloscope
4 Ch 100 MHz Digital Storage Oscilloscope
100 MHz Bandbreite
4 Anzahl der Kanäle
2 GSa/s (bei einem Kanal), 1 GSa/s (bei zwei Kanälen) Abtastrate
8 MPoints (bei einem Kanal), 4 MPoints (bei zwei Kanälen) Speichertiefe
8 Bit Vertikale Auflösung
| Attribut | Wert |
|---|---|
| Bandbreite | 100 MHz |
| Anzahl der Kanäle | 4 |
| Abtastrate | 2 GSa/s (bei einem Kanal), 1 GSa/s (bei zwei Kanälen) |
| Speichertiefe | 8 MPoints (bei einem Kanal), 4 MPoints (bei zwei Kanälen) |
| Vertikale Auflösung | 8 Bit |
| Zeitbasis | 2 ns/div bis 50 s/div |
| Eingangsimpedanz | 1 MΩ parallel zu 13 pF |
| Display | 8,5 Zoll QVGA Farb-LCD-Display (800 x 600 Pixel) |
| Schnittstellen | USB, LAN (LXI), GPIB (optional) |
| Spannungsversorgung | 100–240 V AC, 50/60 Hz |
Keysight (Agilent) DSO6014A 4 Ch 100 MHz Digital Storage Oscilloscope Options:
- DSO6014A - SEC - Secure Environment Mode Option (prevents oscilloscope setup and trace information from being stored in internal memory)
- DSO6014A - SGM - Segmented Memory (capture infrequent or burst signals with great resolution)
- DSO6014A - LMT - Mask Limit Test (create a mask and test waveforms for compliance)
- DSO6014A - LSS - I2C/SPI Serial Decode Option (serial decode of I2C and SPI buses)
- DSO6014A - AMS - CAN/LIN Automotive Triggering and Decode (serial decode of CAN and LIN buses)
- DSO6014A - BAT - Battery Operation Option (available at time of purchase only)
- DSO6014A - N2911A - Memory Upgrade to 8 Mpts (for MSO/DSO6012A and MSO/DSO6032A models)
- DSO6014A - N5454A - Segmented Memory (order after purchase)
- DSO6014A - N5455A - Mask Limit Test (order after purchase)
- DSO6014A - N5466A - Measurement Statistics and Tracking Cursors (order after purchase)
- DSO6014A - N5423A - I2C/SPI Serial Decode Option (order after purchase)
- DSO6014A - N5424A - CAN/LIN Automotive Triggering and Decode (order after purchase)
- DSO6014A - N5432A - FlexRay Trigger and Decode Option
| Model | DSO6014A |
|---|
The Keysight (Agilent) DSO6014A is a 4-channel, 100 MHz digital storage oscilloscope with 2 GSa/s sample rate and 8 Mpts memory, supporting FPGA debug and serial decode protocols.
Includes probes, guides, front panel cover, storage, and wide I/O connectivity options for versatile testing.
Testwall kann liefern the used Keysight (Agilent) DSO6014A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Kontaktieren Sie uns directly if you need calibration or repair of the Keysight (Agilent) DSO6014A.
