Sorensen

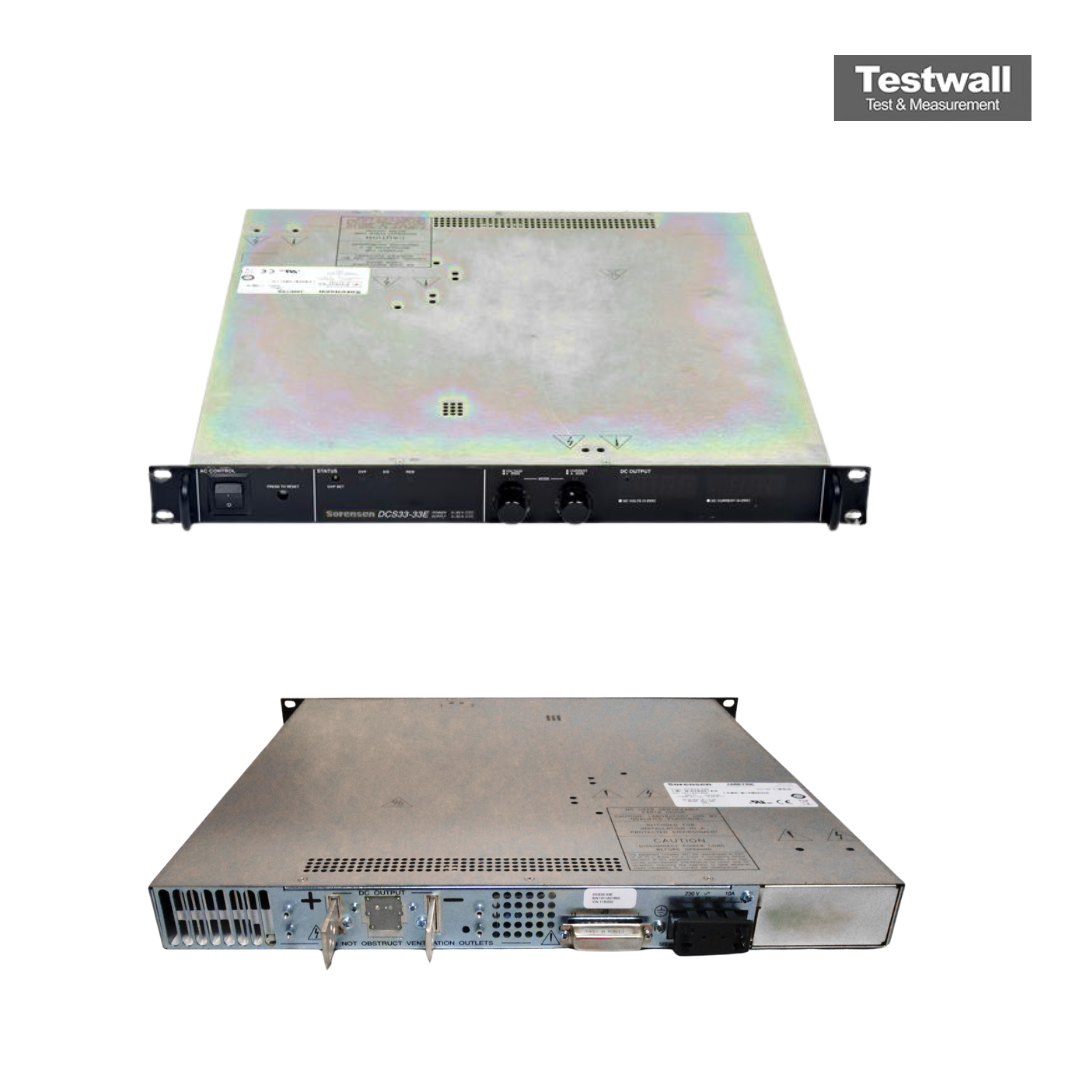

Sorensen DCS33-33E
33-33A DC Power Supply
0 – 33 V Ausgangsspannung
0 – 33 A Ausgangsstrom
1000 W Ausgangsleistung
105 – 132 V / 210 – 264 V AC, 47 – 63 Hz Eingangsspannung
≤ 0,01% + 2 mV Spannungsregelung (Netzeinfluss)
| Attribut | Wert |
|---|---|
| Ausgangsspannung | 0 – 33 V |
| Ausgangsstrom | 0 – 33 A |
| Ausgangsleistung | 1000 W |
| Eingangsspannung | 105 – 132 V / 210 – 264 V AC, 47 – 63 Hz |
| Spannungsregelung (Netzeinfluss) | ≤ 0,01% + 2 mV |
| Stromregelung (Netzeinfluss) | ≤ 0,01% + 2 mA |
| Restwelligkeit und Rauschen (Spannung) | ≤ 1 mV RMS / 5 mV Spitze-Spitze |
| Betriebstemperaturbereich | 0 °C – 50 °C |
| Schutzfunktionen | Überspannungsschutz (OVP), Überstromschutz (OCP) |
| Abmessungen (B x H x T) | 425 mm x 88 mm x 597 mm (19 Zoll, 2 HE) |
Sorensen DCS33-33E Options:
- DCS33-33E - M1 - Factory configured for 115 VAC input (1 kW and 1.2 kW units only)
- DCS33-33E - M9C - Internal IEEE-488/RS 232 Interface (May not be combined with M51A or M85)
- DCS33-33E - M13 - Locking shafts (front panel potentiometers)
- DCS33-33E - M32 - Master/slave paralleling cable configured for two or more units
- DCS33-33E - M51A - Isolated analog programming control of V/I/OVP and isolated V/I monitor and status outputs up to 500V relative to the supply's return line (May not be combined with M9C or M85)
- DCS33-33E - M85 - Multichannel slave interface allows use of a single GPIB address (using 1 master unit with M9C option) to control multiple units via a standard RS485 connector, 3 ft. connector included (May not be combined with M9C or M51A)
| Model | DCS33-33E |
|---|
