| Model | 2350 |
|---|

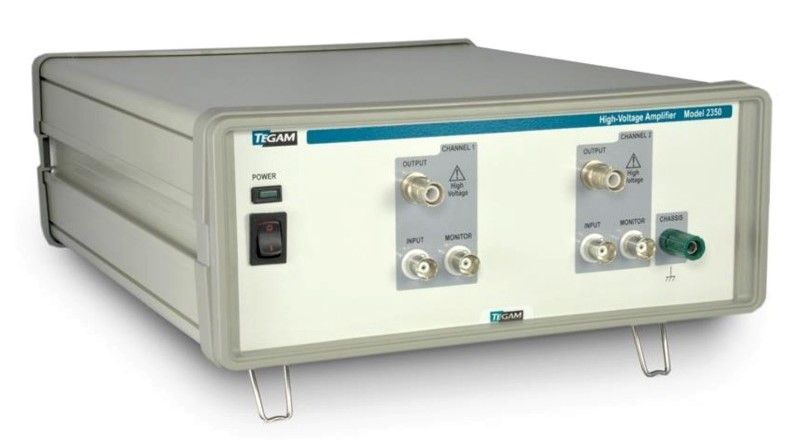

The Tegam 2350 High Voltage Amplifier expands the amplitude range of any standard, 50 ohm function, pulse, or waveform generator to 400 volts p-p. The Tegam 2350 Amplifier comes standard with a fixed gain of +50.
The output cur of the Tegam 2350 is rated at 40 mA continuous with a 0.2 ohm output impedance. Each channel has an independent, buffered, voltage monitor output for applications that require a low-level representation of the output signal. The buffers produce a reduction of 200:1 for 50 ohm inputs and 100:1 for 1 Mohm and above inputs. A cur limiting function senses the cur in either direction providing maximum protection to the amplifier during operation.
Specificaitons of the Tegam 2350 include:
- Output Voltage: 400 Vp-p
- Output Current: 40 mA
- Bandwidth: DC to 2 MHz
- Slew Rate: >250 V/ µSec
- Channels: 2
- Standard x50 gain (10-100 available)
- Independent monitor output
