Yokogawa
Yokogawa 701265
High Precision Temperature Input Module
16 Kanäle Messkanäle
100 MS/s Maximale Abtastrate
12 Bit Vertikale Auflösung
±10 V Eingangsspannungsbereich
bis zu 64 MW pro Kanal Speichertiefe
| Attribut | Wert |
|---|---|
| Messkanäle | 16 Kanäle |
| Maximale Abtastrate | 100 MS/s |
| Vertikale Auflösung | 12 Bit |
| Eingangsspannungsbereich | ±10 V |
| Speichertiefe | bis zu 64 MW pro Kanal |
| Bandbreite | 20 MHz |
| Eingangsimpedanz | 1 MΩ / 50 Ω umschaltbar |
| Schnittstellen | USB, Ethernet (LAN), GP-IB |
| Isolationsspannung | 300 V CAT II (Kanal zu Kanal) |
| Betriebstemperatur | 5 °C bis 40 °C |
Yokogawa 701265 Options:
- 701947 - 701947 - 100:1 Probe (for isolated BNC input) 1000 V (DC+ACpeak) CAT II, 1.5 m
- 702902 - 702902 - 10:1 Probe (for isolated BNC input) operating temp. range: −40 to 85°C, 2.5 m
- 700929 - 700929 - 10:1 Probe (for isolated BNC input) 1000 V (DC+ACpeak) CAT II, 1.5 m
- 701901 - 701901 - 1:1 Safety BNC adapter lead 1000 Vrms CAT II
- 701904 - 701904 - 1:1 Safety Adapter Lead 1000 Vrms CAT II, 600 Vrms CAT III
- B9852MM - B9852MM - Safety mini-clip (Hook type) 1000 Vrms CAT III black
- B9852MN - B9852MN - Safety mini-clip (Hook type) 1000 Vrms CAT III red
- 701954 - 701954 - Large alligator-clip (Dolphin type) 1000 Vrms CAT II, 1 set each of red and black
- 758929 - 758929 - Alligator clip adaptor set (Rated voltage 1000 V) 1000 Vrms CAT II, 1 set each of red and black
- 758922 - 758922 - Alligator clip adaptor set (Rated voltage 300 V) 300 Vrms CAT II, 1 set each of red and black
- 758921 - 758921 - Fork terminal adapter set 1000 Vrms CAT II, 1 set each of red and black
- 366926 - 366926 - 1:1 BNC-alligator cable Non-isolated 42 V or less, 1 m
- 366961 - 366961 - 1:1 Banana-alligator cable Non-isolated 42 V or less, 1.2 m
- 701917 - 701917 - Current probe 5 Arms, DC to 50 MHz
- 701918 - 701918 - Current probe 5 Arms, DC to 120 MHz
- 701932 - 701932 - Current probe 30 Arms, DC to 100 MHz
- 701933 - 701933 - Current probe 30 Arms, DC to 50 MHz
- 701930 - 701930 - Current probe 150 Arms, DC to 10 MHz
- 701931 - 701931 - Current probe 500 Arms, DC to 2 MHz
- 720930 - 720930 - Clamp-on probe AC 50 Arms
- 720931 - 720931 - Clamp-on probe AC 200 Arms
- 701934 - 701934 - Probe power supply, large current output, external probe power supply (4 outputs)
- 438920 - 438920 - Shunt resistor 250 Ω ±0.1%
- 438921 - 438921 - Shunt resistor 100 Ω ±0.1%
- 438922 - 438922 - Shunt resistor 10 Ω ±0.1%
- 700924 - 700924 - Differential probe 1400 Vpk, 1000 Vrms CAT II
- 700925 - 700925 - Differential probe 500 Vpk, 350 Vrms (For 701255)
- 701926 - 701926 - Differential probe 7000 Vpk, 5000 Vrms
- 758924 - 758924 - Safety BNC-banana adapter 500 Vrms CAT II
- 758917 - 758917 - Measurement lead set, measurement leads (2 per set), alligator-clip required separately
- 758933 - 758933 - Measurement lead set 1000 V/19 A/1 m length, alligator-clip required separately
- 701902 - 701902 - Safety BNC-BNC cable (1 m) 1000 Vrms CAT II
- 701903 - 701903 - Safety BNC-BNC cable (2 m) 1000 Vrms CAT II
- 701948 - 701948 - Plug-on clip for 700929 and 701947
- 701906 - 701906 - Long test clip for 700924, 701901 and 701926
| Model | 701265 |
|---|

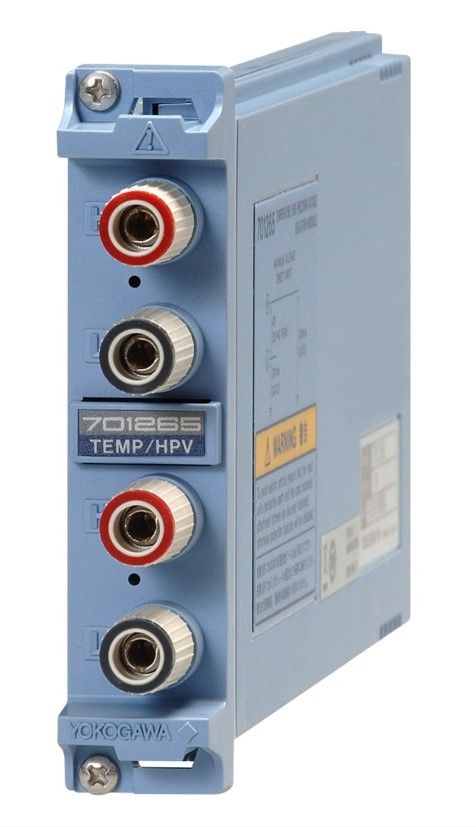

YOKOGAWA 701265 HIGH PRECISION TEMPERATURE INPUT MODULE
The Yokogawa 701265 High Precision Temperature Input Module provides 2 channels of temperature (thermocouple) or voltage (switchable) measurement.
Specifications of the Yokogawa 701265 High Precision Temperature Input Module include:
- Function: Temperature (thermocouple) or voltage measurement (switchable)
- Effective measurement range: Voltage mesurement: twice of setting range
- Number of input channels: 2
- Input coupling:
- TC, DC, and GND
- TC: Temperature (thermocouple) measurement
- DC: Voltage measurement (DC coupling)
- Voltage measurement maximum sample rate: 100 kS/s
- Temperature measurement data update rate: 500 Hz
- Voltage:
- rms: 1.5 mV
- peak-to-peak: 10 mV
- Measurement range/accuracy:
- Voltage measurement:
- Voltage sensitivity: 1 mV to 100 V range (1-2-5 steps)
- Voltage accuracy: ±(0.08% or range + 2μ V)
- Frequency characteristics (-3 dB point when a sine wave of amplitude 60% of range is input):
- Voltage measurement: DC to 100 Hz
- Temperature measurement: DC to 100 Hz
- Maximum input voltage (at a frequency of 1 kHz or less):
- Temperature input: 42 V (DC + ACpeak)
- Voltage input: 42 V (DC + ACpeak)
- Maximum allowable common mode voltage (at a frequency of 1 kHz or less):
- Temperature input: 42 V (DC + ACpeak)(CAT l and CAT ll, 30 Vrms)
- Voltage input: 42 V (DC + ACpeak)(CAT l and CAT ll, 30 V)
- Vertical resolution:
- Voltage measurement during voltage input: 2400 LSB/div
- Temperature measurement when measuring temperature: 0.1 ºC
- -3 dB point when AC coupled low frequency attenuation point: Voltage measurement 0.5 Hz or less
- Input connector: Binding post
- Input impedance: Approximately 1 MΩ
- Common mode rejection ratio:
- Voltage measurement: 80 dB (50/60 Hz) or more typical
- Temperature measurement: 120 dB or more (50/60 Hz, with 2-Hz filter ON, signal source resistance of 500 Ω or less) typical
- Residual noise level (input section shorted):
- Voltage measurement: ±4 μ V or ±0.1% of range, whichever is greater (typical)
- A/D conversion resolution:
- Voltage measurement: 16 bits (24000 LSB/range)
- Temperature coefficient:
- Voltage measurement:
- Zero point: ±(0.01% of range)/ ºC (typical)
- Gain: ±(0.02% of range)/ ºC (typical)
- Bandwidth limit (digital filter): Select from OFF, 30 Hz, 8 Hz, and 2 Hz
- Input bias current: 20 nA or less
