EA Elektro-Automatik PSB10200-420
| Attribute | Value |
|---|---|
| Voltage Range | 0 – 200 V |
| Current Range | 0 – 420 A |
| Power Rating | 10,000 W (10 kW) |
| Operating Modes | Source and Sink (Regenerative Bidirectional DC Power Supply) |
| Regenerative Efficiency | Up to 96% energy feedback to the grid |
| Interface / Connectivity | USB, Ethernet, and analog interface standard; optional CAN, EtherCAT, Profibus, Modbus |
| Display | Graphical TFT color touchscreen |
| Protection Features | Overvoltage, overcurrent, overpower, and overtemperature protection |
| Form Factor | 19-inch rack-mountable, 3U height |
| Input Voltage (AC Mains) | 3-phase AC 400 V (±10%), 50/60 Hz |
EA Elektro-Automatik PSB10200-420 Options:
- PSB10200-420 - 30000802 - Standard model (380/400/480V AC supply)
- PSB10200-420 - 30000822 - Water-cooling (WC) model (380/400/480V AC supply)
- PSB10200-420 - 30008802 - US 208V model
- PSB10200-420 - 30008822 - US 208V model with Water-cooling (WC)
| Model | PSB10200-420 |
|---|

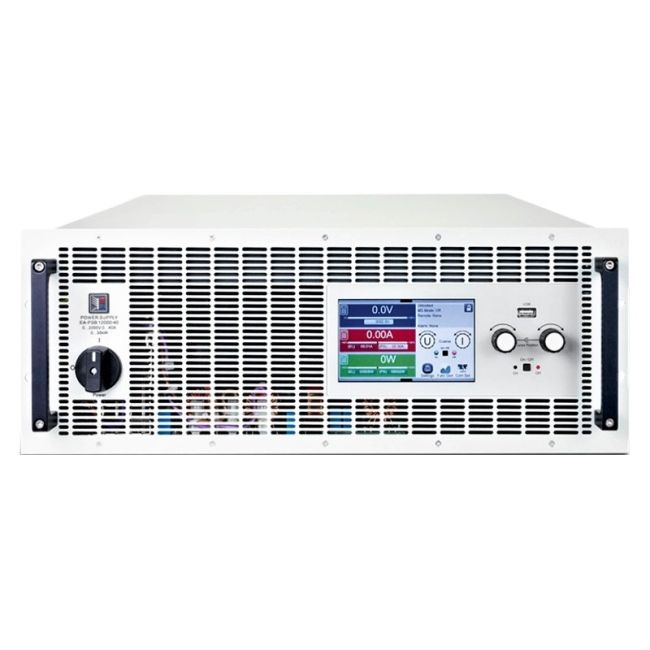

ELEKTRO-AUTOMATIK PSB10200-420 Bi-Directional DC Power Supply
The Elektro-Automatik PSB10200-420 Bi-directional DC power supplies offer 30kW of power in a compact 4U chassis. The unit incorporates two devices into one: a power supply (source) and an electronic load (sink) with energy recovery. The advantage of having both device types in a single unit and at the same time it eliminates the disadvantages of separate units regarding weight, space requirement, costs and effort to implement them into custom test software. The Elektro-Automatik PSB10200-420 is equipped with a flexible autoranging bi-directional power stage, which provides automatic adjustments of voltage and cur outputs, limited only by the maximum rated output power.
The most important feature of the Elektro-Automatik PSB10200-420 DC power supply is that the AC input while connected to the grid is also used as output for the recovery of the supplied DC energy during load operation, which is converted with an efficiency of up to 95.5%. The EA PSB10200-420 includes a software based function generator, which can generate typical functions and apply them to either the voltage and current. In addition to standard functions, the generator is accessible for the creation and execution of complex sets of function runs, separated in to up to 99 sequence points. There is also a galvanically isolated analog interface terminal which offers analog inputs to set voltage, current, power and resistance. Several inputs and outputs are available for controlling and monitoring the device status.
Specifications for the ELEKTRO-AUTOMATIK PSB10200-420 Bi-Directional DC Power Supply Include:
| Voltage (Source/Sink) | 0 - 200V |
| Cur (Source/Sink) | 0 - 420A |
| Total Power | 30kW |
| Efficiency | Up to 94.2% |
