EA Elektro-Automatik PSB10200-50
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 200 V DC |
| Output Current Range | 0 – 50 A |
| Output Power | 10,000 W (10 kW) |
| Input Voltage | 3-phase, 208–480 V AC, 50/60 Hz |
| Operating Modes | Source (power supply) and Sink (electronic load) bidirectional operation |
| Efficiency | Up to 95% |
| Interface / Connectivity | Analog, USB, Ethernet; compatible with SCPI and EtherCAT (optional) |
| Cooling Method | Forced air cooling (fan-based) |
| Form Factor | 19-inch rack mount, 3U |
| Protection Features | Overvoltage (OVP), Overcurrent (OCP), Overpower (OPP), Overtemperature (OTP) |
| Model | PSB10200-50 |
|---|

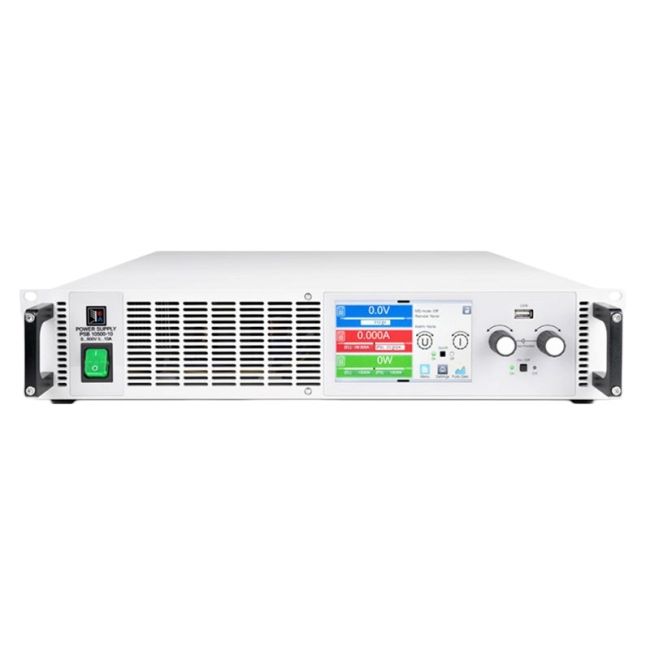

ELEKTRO-AUTOMATIK PSB10200-50 Bi-Directional Power Supply
The Elektro-Automatik PSB10200-50 is available as a laboratory power supply, electronic load with power feedback and a bi-directional power supply. The unit is programmable via analogue and digital interfaces as well as via the 5 " TFT touch display. They offer the same configuration and functionality as those in this series with higher power. The EA PSB10200-50 has an AC mains input with an extended range, from 110V to 240VAC. The PSB10200-50 bidirectional DC power supply features 5 €³ s touchscreen display for intuitive control and programming. The intelligent interface allows you to configure and test quickly.
The EA PSB10200-50 bidirectional dc power supplies come standard with an arbitrary waveform function generator, swappable digital interface module and built-in test routines for battery test, fuel cell simulation, photovoltaic simulation with MPP tracking, and more. All EA bidirectional DC power supplies offer true autoranging which means that the full source and sink power of the devices is available over a wider operating range. The lower the cur required in these ranges the higher the voltage available to maintain full power output. This allows a wider range of DUTs to be tested with a single power supply. EA's autoranging feature provides full power, output as well as input, all the way down to 33% of system voltage and current.
Specifications for the ELEKTRO-AUTOMATIK PSB10200-50 Bi-Directional Power Supply Include:
| Voltage | 0 - 200V |
| Current | 0 - 50A |
| Total Power | 3000W |
| Power factor | >0.99 |
