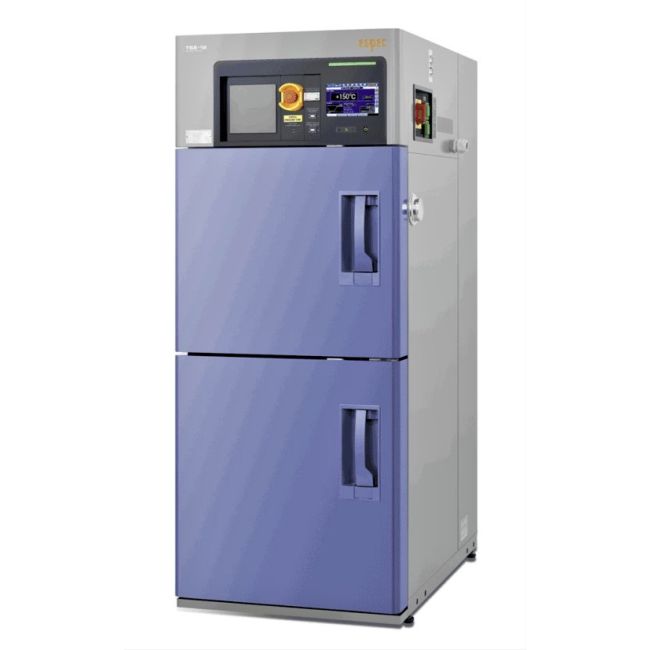

Espec TSE-12-A
| Attribute | Value |
|---|---|
| Temperature Range | -65°C to +150°C |
| Number of Zones | 2 Zone (Hot and Cold) |
| Basket Capacity | 12 Liters |
| Transfer Time | 10 seconds or less |
| Temperature Stability | ±2°C |
| Hot Zone Temperature Range | +60°C to +150°C |
| Cold Zone Temperature Range | -65°C to 0°C |
| Power Supply | 208V / 240V, Single Phase, 60Hz |
| Refrigerant Type | R-404A |
| Compliance Standards | MIL-STD-883, JESD22-A104, IEC 60068-2-14 |
Espec TSE-12-A Options:
- TSE-12-A - Power Cable - Standard power cable (approx. 2.5m, included as standard fitting)
- TSE-12-A - Recorder (digital) - Temperature recorder digital, RK-61 (1 pen), RK-63 (3 pens), or RK-64 (6 dots), -100 to +220°C /100mm
- TSE-12-A - Paperless Recorder - Records temperature of each section; 5.7-inch color touch panel, multiple input channel configurations, internal memory 8MB
- TSE-12-A - Recorder Wiring - Preparation of power cable, temperature sensor, and grounding wire for additional recorder installation
- TSE-12-A - Recorder Terminal - Used to output temperature within test area, hot chamber, cold chamber
- TSE-12-A - Emergency Stop Pushbutton - Stops the chamber immediately (with cover or with guard)
- TSE-12-A - Specimen Basket - Additional specimen basket, 18-8 Cr-Ni stainless steel 5 mesh, W320×H35×D230mm, load capacity 2kg
- TSE-12-A - Thermocouple - T JIS C1602 with ball attached, available in 2m, 4m, or 6m lengths
- TSE-12-A - Cable Port Rubber Plug - Prevents air leakage from the cable port
- TSE-12-A - Interface RS-485C - RS-485C communication interface
- TSE-12-A - Interface RS-232C - RS-232C communication interface
- TSE-12-A - Interface GPIB - GPIB communication interface
- TSE-12-A - Communication Cable RS-485C - RS-485C cable, 5m/10m/30m
- TSE-12-A - Communication Cable GPIB - GPIB cable, 2m/4m
- TSE-12-A - Total Cycle Counter - Indicates cycle counts, display range 1-99999999 with resetting function
- TSE-12-A - External Alarm Terminal - Notifies remote point when safety device is activated
- TSE-12-A - Auxiliary Cooling Injector LCO2 - Reduces temperature recovery time by injecting liquefied carbon dioxide at beginning of exposure
- TSE-12-A - Auxiliary Cooling Injector LN2 - Reduces temperature recovery time by injecting liquefied nitrogen at beginning of exposure
- TSE-12-A - Additional Overheat Protector - Additional preventive measures for excessive temperature rise, in addition to standard double overheat protector
- TSE-12-A - Anchoring Fixtures - Used to bolt the chamber to the floor
- TSE-12-A - Chamber Dew Tray - Prevents water leakage from the chamber onto the floor
- TSE-12-A - Reports & Certificates - Testing and inspection report, test data, calibration report, calibration certificate, traceability system chart, traceability certificate
- TSE-12-A - Operation Manual CD - Operation manual on CD
- TSE-12-A - Operation Manual Booklet - Operation manual in booklet format
| Model | TSE-12-A |
|---|
The Espec TSE-12-A is a thermal shock chamber engineered for high-precision testing of material endurance under extreme temperature transitions. With rapid hot and cold cycling, it ensures accurate simulation of real-world stress environments, making it essential for electronics, automotive, and aerospace industries. Its advanced control systems guarantee repeatable performance aligned with international standards.
Ideal for product validation, the TSE-12-A provides reliability in compliance testing while reducing risk of field failures. Its design supports critical applications requiring durability and accuracy.
Testwall can supply the used Espec TSE-12-A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Espec TSE-12-A.
