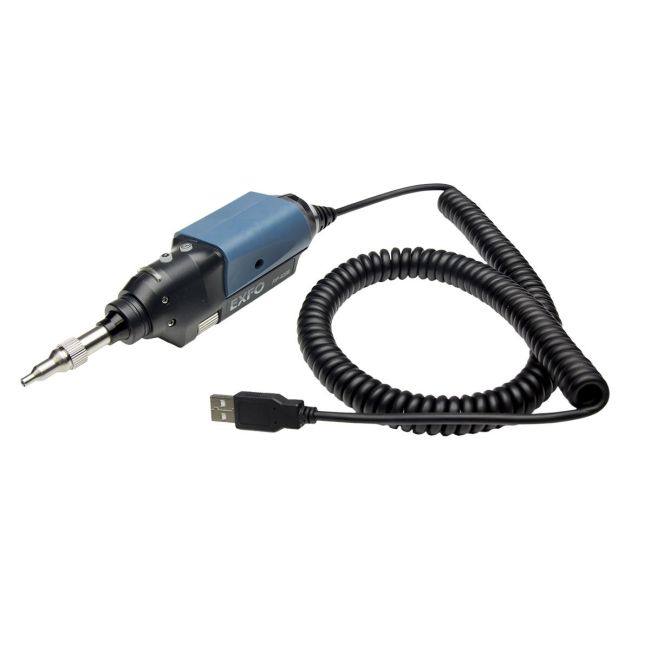

Exfo FIP-430B Automated Analysis Digital Video Inspection Probe
Automated Analysis Digital Video Inspection Probe
400x Tip Magnification
1920 x 1080 (Full HD) Display Resolution
IEC 61300-3-35 Automated Pass/Fail Analysis Analysis Standard
Single-mode and multimode fiber connectors (SC, LC, MPO, and more) Connector Compatibility
USB 3.0 Interface
| Attribute | Value |
|---|---|
| Tip Magnification | 400x |
| Display Resolution | 1920 x 1080 (Full HD) |
| Analysis Standard | IEC 61300-3-35 Automated Pass/Fail Analysis |
| Connector Compatibility | Single-mode and multimode fiber connectors (SC, LC, MPO, and more) |
| Interface | USB 3.0 |
| Image Capture Format | JPEG and BMP |
| Illumination | LED-based white light illumination |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Compatible Software | EXFO Connect, FastReporter 3 |
Exfo FIP-430B Automated Analysis Digital Video Inspection Probe Options:
- FIP-430B - APC - Base Tips: Includes FIPT-400-U25MA and FIPT-400-SC-APC
- FIP-430B - UPC - Base Tips: Includes FIPT-400-U25M and FIPT-400-FC-SC
| Model | FIP-430B |
|---|
The EXFO FIP-430B is an advanced fiber inspection probe that offers cutting-edge automatic focus adjustment capabilities. The FIP-430B comes equipped with a unique fiber image-centering system and onboard connector-endface pass/fail analysis based on IEC or custom standards. This allows users to quickly acquire precise connector certification on a consistent basis. Here are the key features of the EXFO FIP-430B:
Fully automated, one-step process:
- Automatic fiber-connection detection
- Automatic image centering
- Automatic focus adjustment and optimization
- Automatic capture
- Automatic pass/fail analysis
- Automatic reporting
