Exfo

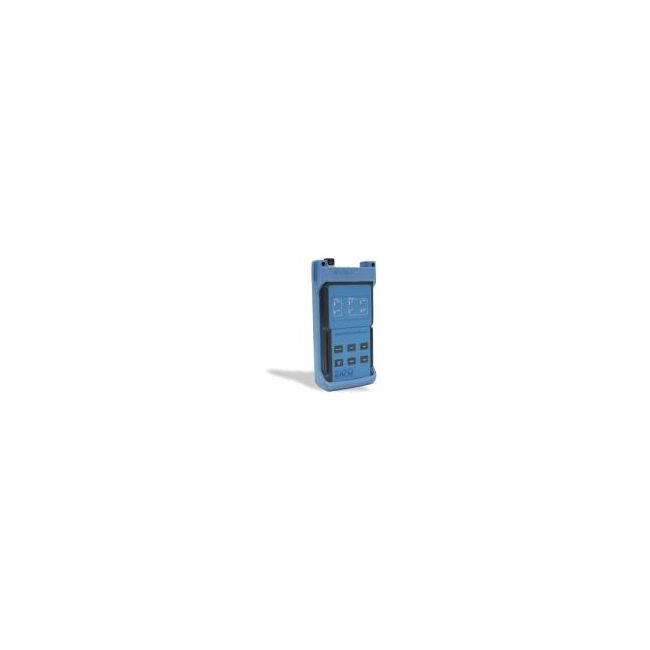

Exfo FLS-110-03P
1310nM 1550nM Optical Polarized Source
1310 / 1550 nm Wavelength
-7 dBm (typical) Output Power
FP Laser (Fabry-Perot) Source Type
SC/UPC Connector Type
Single-Mode (SM) Fiber Type
| Attribute | Value |
|---|---|
| Wavelength | 1310 / 1550 nm |
| Output Power | -7 dBm (typical) |
| Source Type | FP Laser (Fabry-Perot) |
| Connector Type | SC/UPC |
| Fiber Type | Single-Mode (SM) |
| Modulation Modes | CW, 270 Hz, 1 kHz, 2 kHz |
| Power Supply | 2 x AA Batteries or AC Adapter |
| Battery Life | Up to 200 hours (CW mode) |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Dimensions | Approximately 155 x 67 x 32 mm |
Exfo FLS-110-03P Options:
- FLS-110-03P - 58 - FC/APC narrow key connector
- FLS-110-03P - 89 - FC/UPC connector
- FLS-110-03P - 91 - SC/UPC connector
- FLS-110-03P - EI-EUI-28 - UPC/DIN 47256 connector
- FLS-110-03P - EI-EUI-76 - UPC/HMS-10/AG connector
- FLS-110-03P - EI-EUI-89 - UPC/FC connector
- FLS-110-03P - EI-EUI-90 - UPC/ST connector
- FLS-110-03P - EI-EUI-91 - UPC/SC connector
- FLS-110-03P - EI-EUI-95 - UPC/E-2000 connector
- FLS-110-03P - EA-EUI-28 - APC/DIN 47256 connector
- FLS-110-03P - EA-EUI-89 - APC/FC connector
- FLS-110-03P - EA-EUI-91 - APC/SC connector
- FLS-110-03P - EA-EUI-95 - APC/E-2000 connector
| Model | FLS-110-03P |
|---|
The EXFO FLS-110 is an Optical Polarized Source that offers CW and 2 KHz modulation for fiber identification, complete status indicators, low battery indicator and an auto-off function.
