Exfo

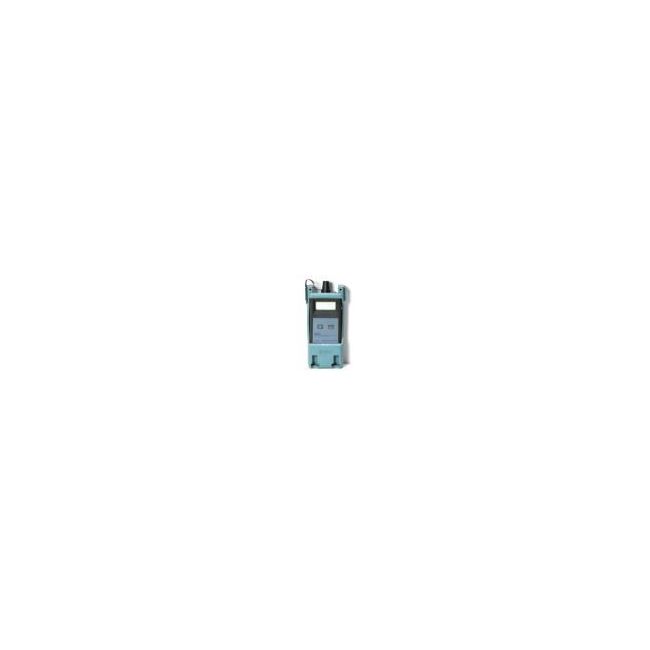

Exfo FOT-22AX
850 / 1300 nm (multimode), 1310 / 1550 nm (singlemode) Wavelengths
Up to 62 dB (singlemode), up to 42 dB (multimode) Dynamic Range
-70 to +10 dBm Measurement Range
-7 dBm (typical) at 1310/1550 nm Light Source Output Power
Universal adapter port (accepts SC, ST, FC, LC adapters) Connector Interface
| Attribute | Value |
|---|---|
| Wavelengths | 850 / 1300 nm (multimode), 1310 / 1550 nm (singlemode) |
| Dynamic Range | Up to 62 dB (singlemode), up to 42 dB (multimode) |
| Measurement Range | -70 to +10 dBm |
| Light Source Output Power | -7 dBm (typical) at 1310/1550 nm |
| Connector Interface | Universal adapter port (accepts SC, ST, FC, LC adapters) |
| Display | Large backlit LCD display with simultaneous power and loss readings |
| Battery Life | Up to 150 hours of continuous operation (alkaline batteries) |
| Power Supply | 4 x AA alkaline batteries or optional AC adapter |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Standards Compliance | Compliant with TIA/EIA-526-7, TIA/EIA-526-14A, IEEE 802.3 fiber optic test standards |
| Model | FOT-22AX |
|---|
