Exfo

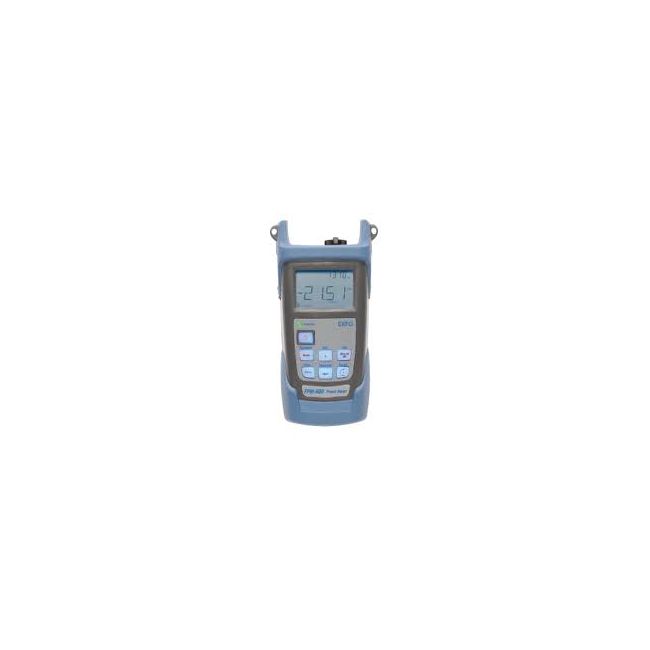

Exfo FPM-600
800nM Fiber Optic Optical Power Meter
400 nm to 1700 nm Wavelength Range
-70 dBm to +10 dBm Power Measurement Range
±0.2 dB Power Measurement Uncertainty
Graphic LCD with backlight Display
Universal 2.5 mm adapter port (FC, SC, ST compatible) Connector Interface
| Attribute | Value |
|---|---|
| Wavelength Range | 400 nm to 1700 nm |
| Power Measurement Range | -70 dBm to +10 dBm |
| Power Measurement Uncertainty | ±0.2 dB |
| Display | Graphic LCD with backlight |
| Connector Interface | Universal 2.5 mm adapter port (FC, SC, ST compatible) |
| Battery Life | Up to 300 hours with standard alkaline batteries (2x AA) |
| Data Storage | Up to 99 measurement memory locations |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Detector Type | InGaAs photodetector |
| Dimensions | 155 mm x 76 mm x 32 mm (6.1 in x 3.0 in x 1.3 in) |
| Model | FPM-600 |
|---|
The EXFO FPM-600 is a 800 nM Fiber Optic Optical Power Meter
