Exfo

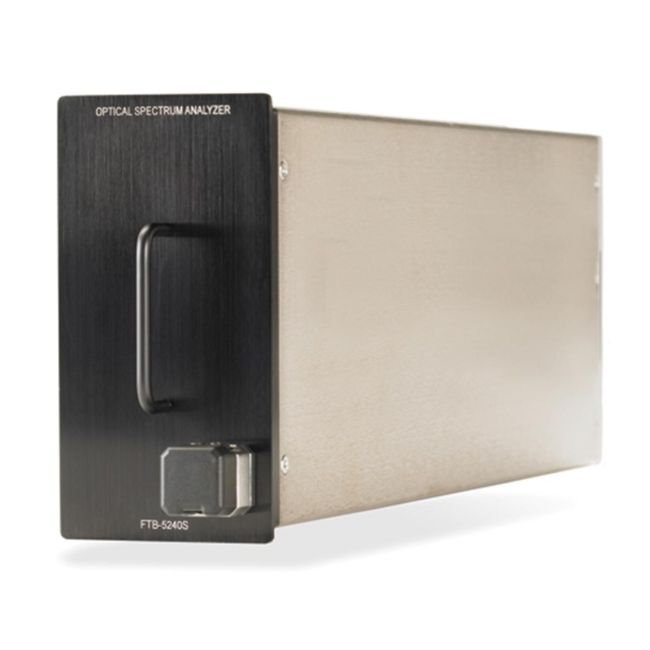

Exfo FTB-5240S-P
Optical Spectrum Analyzer Module
1260 nm to 1650 nm Wavelength Range
up to 45 dB Dynamic Range
-80 dBm to +10 dBm Measurement Range
±0.01 nm Wavelength Accuracy
0.07 nm (3 dB bandwidth) Spectral Resolution
| Attribute | Value |
|---|---|
| Wavelength Range | 1260 nm to 1650 nm |
| Dynamic Range | up to 45 dB |
| Measurement Range | -80 dBm to +10 dBm |
| Wavelength Accuracy | ±0.01 nm |
| Spectral Resolution | 0.07 nm (3 dB bandwidth) |
| Display Range | 0.2 nm to 400 nm |
| Polarization Sensitivity | ≤ 0.05 dB |
| Input Connector | FC/APC |
| Platform Compatibility | EXFO FTB-500 and FTB-200 platforms |
| Application | DWDM network testing, optical spectrum analysis, passive component testing |
Exfo FTB-5240S-P Options:
- FTB-5240S-P - EI-EUI-28 - Connector adapter UPC/DIN 47256
- FTB-5240S-P - EI-EUI-76 - Connector adapter UPC/HMS-10/AG
- FTB-5240S-P - EI-EUI-89 - Connector adapter UPC/FC narrow key
- FTB-5240S-P - EI-EUI-90 - Connector adapter UPC/ST
- FTB-5240S-P - EI-EUI-91 - Connector adapter UPC/SC
- FTB-5240S-P - EI-EUI-95 - Connector adapter UPC/E-2000
- FTB-5240S-P - EA-EUI-28 - Connector adapter APC/DIN 47256
- FTB-5240S-P - EA-EUI-89 - Connector adapter APC/FC narrow key
- FTB-5240S-P - EA-EUI-91 - Connector adapter APC/SC
- FTB-5240S-P - EA-EUI-95 - Connector adapter APC/E-2000
- FTB-5240S-P - 00 - Without software option
- FTB-5240S-P - InB - With In-Band OSNR software
| Model | FTB-5240S-P |
|---|
The EXFO FTB-5240S-P OSA test module, housed in either the FTB-500 Platform or the FTB-200 Compact Platform, is purpose-built for fast and accurate dense wavelength-division multiplexing (DWDM) network commissioning and high-speed networking up to 40 Gbit/s. The built-in polarization-resolved optical spectrum method of EXFO's FTB 5240S P and FTB 5240BP OSAs enables you to achieve accurate in-band OSNR measurements of a ROADM or 40 Gbit/s system directly and automatically.
Here are the key features of the FTB-5240S:
- In-band OSNR measurement for 40 Gbit/s and ROADM deployments with the PROS-OSNR breakthrough approach
- One-button operation for easy setup and automatic measurement
- Truly portable spectral characterization for DWDM network commissioning
- Over 90 dB dynamic range per scan
- Flexibility to analyze WDM, EDFA, drift, spectral transmittance and DFB laser
- High-power option, ideal for multiservice operators and CATV operators
You can refurbished with warranty the EXFO FTB-5240S-P OSA test module at Testwall with 365 days customer service. Request a quote today.
