Exfo

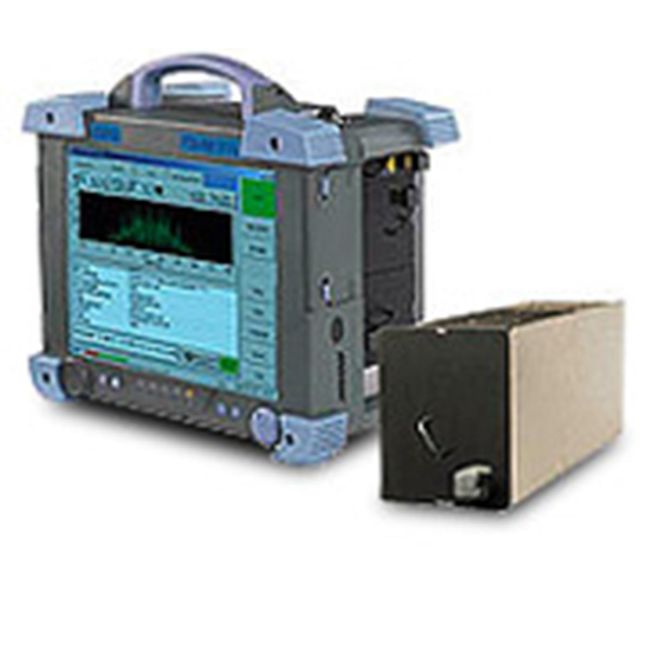

Exfo FTB-5523
PMD Analyzer Module
1260 nm to 1650 nm Wavelength Range
Up to 45 dB Dynamic Range
+10 dBm to -55 dBm Measurement Range
±0.01 nm Wavelength Accuracy
0.001 nm Wavelength Resolution
| Attribute | Value |
|---|---|
| Wavelength Range | 1260 nm to 1650 nm |
| Dynamic Range | Up to 45 dB |
| Measurement Range | +10 dBm to -55 dBm |
| Wavelength Accuracy | ±0.01 nm |
| Wavelength Resolution | 0.001 nm |
| Power Accuracy | ±0.4 dB |
| Spectral Resolution (3 dB) | 0.07 nm |
| Fiber Connector Type | FC/PC (Universal adapter compatible) |
| Platform Compatibility | EXFO FTB-500 and FTB-200 platforms |
| Application | Optical Spectrum Analysis for DWDM and CWDM network testing |
Exfo FTB-5523 Options:
- FTB-5523 - ER - Extended range option (analysis range 0.05 to 200 ps)
- FTB-5523 - 89 - Connector type FC/UPC
- FTB-5523 - 90 - Connector type ST/UPC
| Model | FTB-5523 |
|---|
Housed in the FTB-400 portable platform, the FTB-5523 Polarization Mode Dispersion Analyzer uses a patented approach to measuring PMD of installed links -- amplified or not -- as specified by the TIA's new FOTP-124A standard and according to the generalized interferometric approach (GINTY). It is the only PMD unit in the world to test through EDFAs, which is made possible thanks to the mathematical subtraction of the autocorrelation peak in the interferogram. This also enables the use of any source shape. For the first time, a PMD of zero can be measured as such. PMD is now measured precisely, no more mere assumptions.
