Exfo

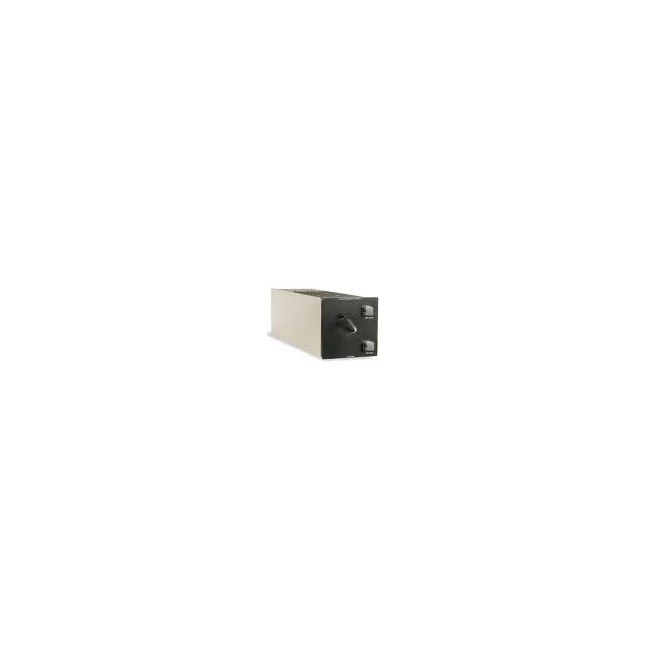

Exfo FTB-5800
Chromatic Dispersion Analyser
1260 nm to 1650 nm Wavelength Range
Up to 45 dB Dynamic Range
Up to 250 km Measurement Range
3 ns to 20000 ns Pulse Width
0.01 m Distance Resolution
| Attribute | Value |
|---|---|
| Wavelength Range | 1260 nm to 1650 nm |
| Dynamic Range | Up to 45 dB |
| Measurement Range | Up to 250 km |
| Pulse Width | 3 ns to 20000 ns |
| Distance Resolution | 0.01 m |
| Event Dead Zone | As low as 0.8 m |
| Attenuation Dead Zone | As low as 3 m |
| Connector Interface | Universal FC/PC adapter (SC, ST, LC available) |
| Platform Compatibility | EXFO FTB-500 and FTB-200 platform modules |
| Fiber Type Compatibility | Single-mode (SM) and multimode (MM) optical fiber |
| Model | FTB-5800 |
|---|
EXFO?s FTB-5800 uses the approved phase-shift method to measure chromatic dispersion (CD) in Networks and fiber links in DWDM, long-haul and ultra-long-haul Systems.
