Exfo

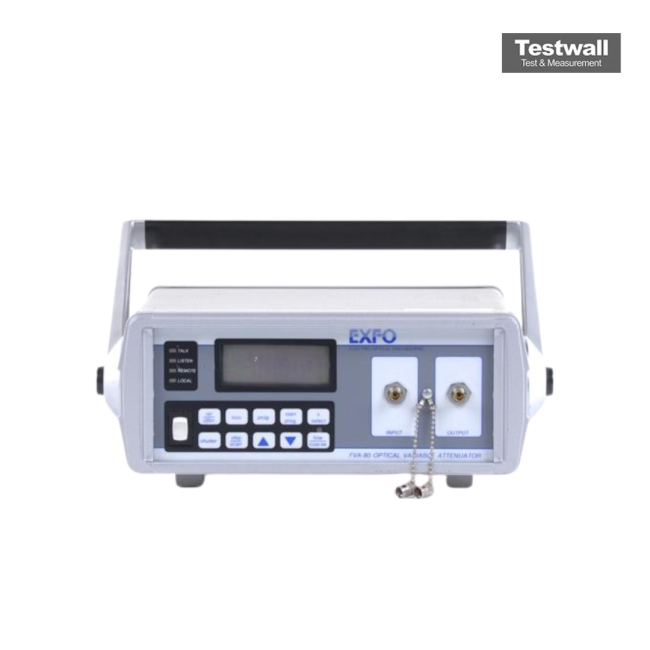

Exfo FVA-80,
FVA80, FVA 80 Optical Variable Attenuator
1260 nm to 1640 nm Wavelength Range
0 to 80 dB Attenuation Range
0.001 dB Attenuation Resolution
< 3 dB Insertion Loss
± 0.4 dB Attenuation Accuracy
| Attribute | Value |
|---|---|
| Wavelength Range | 1260 nm to 1640 nm |
| Attenuation Range | 0 to 80 dB |
| Attenuation Resolution | 0.001 dB |
| Insertion Loss | < 3 dB |
| Attenuation Accuracy | ± 0.4 dB |
| Return Loss | > 40 dB |
| Maximum Input Power | +27 dBm |
| Connector Type | FC/APC (interchangeable) |
| Interface | GPIB, RS-232, USB |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Model | FVA-80, |
|---|
