Exfo

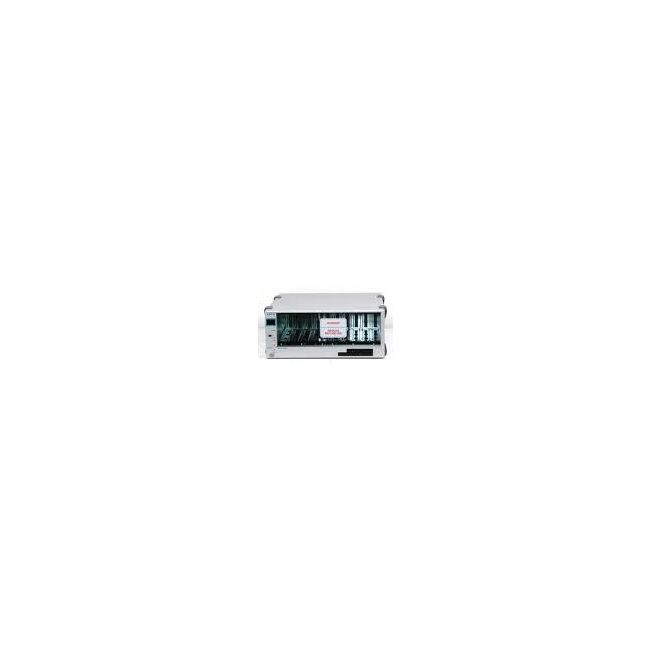

Exfo IQS-500
Intelligent Test System.
EXFO IQS-600, IQS-700 Mainframes Platform Compatibility
Optical Spectrum Analyzer (OSA) Module Module Type
1250 nm – 1650 nm Wavelength Range
±0.05 nm Wavelength Accuracy
Up to 45 dB Dynamic Range
| Attribute | Value |
|---|---|
| Platform Compatibility | EXFO IQS-600, IQS-700 Mainframes |
| Module Type | Optical Spectrum Analyzer (OSA) Module |
| Wavelength Range | 1250 nm – 1650 nm |
| Wavelength Accuracy | ±0.05 nm |
| Dynamic Range | Up to 45 dB |
| Optical Resolution Bandwidth | 0.07 nm (typical) |
| Power Measurement Range | -90 dBm to +20 dBm |
| Connector Type | FC/APC |
| Application | DWDM Network Testing, Component Characterization, Amplifier Testing |
| Form Factor | Plug-in Module for IQS Mainframe Platform |
Exfo IQS-500 Options:
- IQS-505P - N10 - Standard 256 MB Memory
- IQS-505P - N12 - Additional 256 MB (total of 512 MB) Memory
- IQS-505P - 00 - No GPIB Card Requested
- IQS-505P - I3 - GPIB Card
- IQS-505P - G1 - CD-ROM
- IQS-505P - G2 - CD-Writer
- IQS-510P - N10 - Standard 256 MB Memory
- IQS-510P - N12 - Additional 256 MB (total of 512 MB) Memory
- IQS-510P - 00 - No GPIB Card Requested
- IQS-510P - I3 - GPIB Card
- IQS-510P - G1 - CD-ROM
- IQS-510P - G2 - CD-Writer
- IQS-510E - E0 - EXFO Bus Cable 0.3 m (1 ft)
- IQS-510E - E3 - EXFO Bus Cable 0.8 m (2.5 ft)
- IQS-510E - E4 - EXFO Bus Cable 1.5 m (5 ft)
| Model | IQS-500 |
|---|
The Exfo IQS-500 is and intelligent test System.
