Exfo

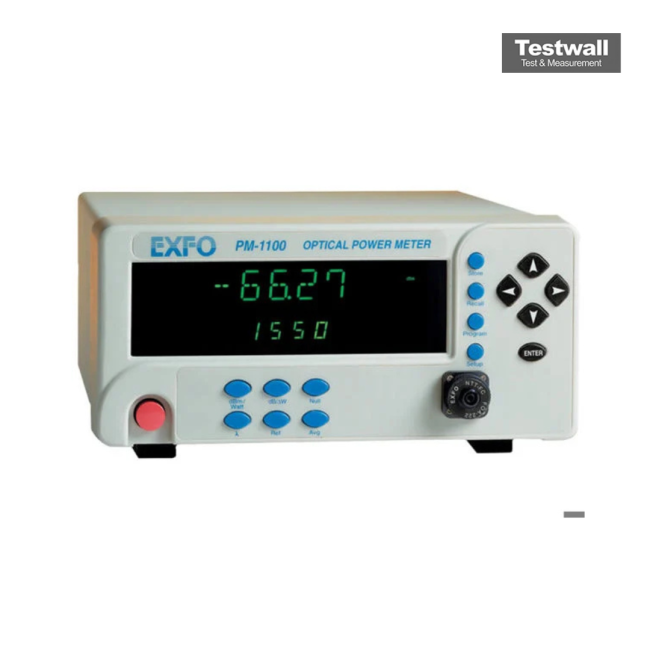

Exfo PM-1100
750nM Fiber Optic Optical Power Meter
800 nm to 1700 nm Wavelength Range
-70 dBm to +10 dBm Power Measurement Range
InGaAs Detector Type
±0.2 dB Measurement Uncertainty
0.01 dB / 0.01 nW Display Resolution
| Attribute | Value |
|---|---|
| Wavelength Range | 800 nm to 1700 nm |
| Power Measurement Range | -70 dBm to +10 dBm |
| Detector Type | InGaAs |
| Measurement Uncertainty | ±0.2 dB |
| Display Resolution | 0.01 dB / 0.01 nW |
| Connector Interface | Universal 2.5 mm (FC, SC, ST compatible) |
| Battery Life | Up to 200 hours with standard AA batteries |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Data Storage | Up to 3000 measurement results stored internally |
| Communication Interface | USB and RS-232 for PC connectivity and data transfer |
| Model | PM-1100 |
|---|
