Exfo

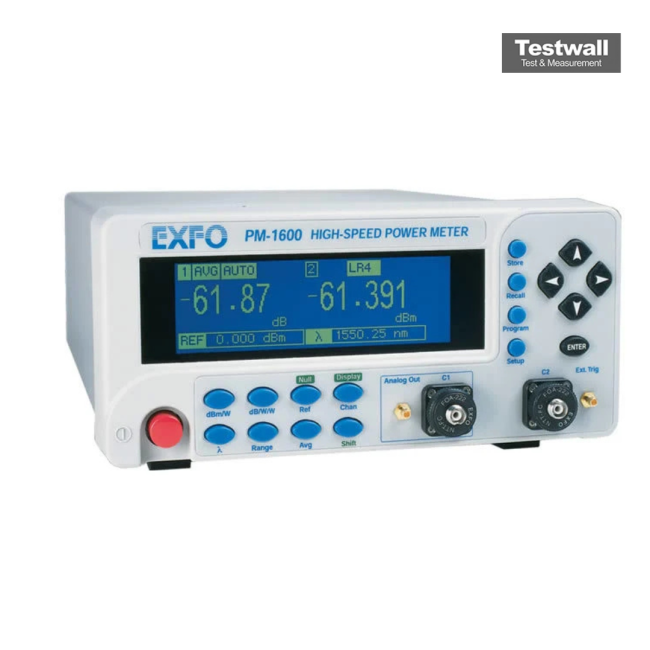

Exfo PM-1600
800nM Fiber Optic Optical Power Meter
800 nm to 1650 nm Wavelength Range
-70 dBm to +10 dBm Power Measurement Range
InGaAs Detector Type
Universal 2.5 mm (FC, SC, ST compatible) Connector Type
Backlit LCD Display
| Attribute | Value |
|---|---|
| Wavelength Range | 800 nm to 1650 nm |
| Power Measurement Range | -70 dBm to +10 dBm |
| Detector Type | InGaAs |
| Connector Type | Universal 2.5 mm (FC, SC, ST compatible) |
| Display | Backlit LCD |
| Measurement Units | dBm, dB, W, % |
| Battery Life | Up to 200 hours with standard alkaline batteries |
| Power Supply | 2 x AA alkaline batteries |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Calibration Uncertainty | ±0.2 dB |
| Model | PM-1600 |
|---|
