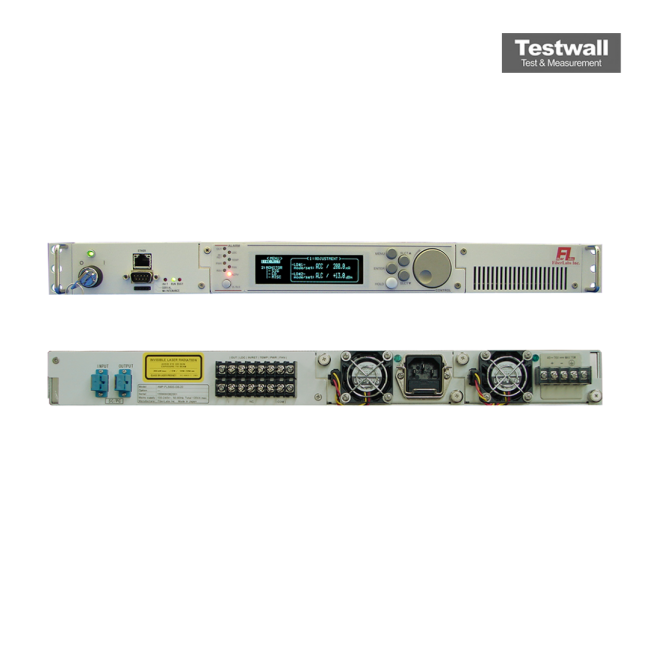

Fiber Labs AMP-FL5011
Optical Amplifier
1550 nm (C-Band) Operating Wavelength
+11 dBm (typical) Output Power
Up to 30 dB Gain
EDFA (Erbium-Doped Fiber Amplifier) Amplifier Type
-20 dBm to 0 dBm Input Power Range
| Attribute | Value |
|---|---|
| Operating Wavelength | 1550 nm (C-Band) |
| Output Power | +11 dBm (typical) |
| Gain | Up to 30 dB |
| Amplifier Type | EDFA (Erbium-Doped Fiber Amplifier) |
| Input Power Range | -20 dBm to 0 dBm |
| Noise Figure | ≤ 5.5 dB |
| Connector Type | FC/APC |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to +50°C |
| Interface | RS-232 Serial Control Interface |
| Model | Labs |
|---|
