Fitel S175
| Attribute | Value |
|---|---|
| Fiber Type | Single-mode and Multimode |
| Splicing Method | Core alignment fusion splicing |
| Splice Loss (SM) | 0.02 dB typical |
| Splice Loss (MM) | 0.01 dB typical |
| Splicing Time | 9 seconds typical |
| Heating Time | 35 seconds typical (with standard sleeve) |
| Battery Capacity | Minimum 200 splice and heat cycles per charge |
| Display | 5.0-inch color LCD touchscreen monitor |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Tension Test | Standard 1.96 N (0.44 lbf) |
Fitel S175 Options:
- S175 - S210 - Stripper (0.25/0.9 mm coating strip)
- S175 - S323A - Cleaver (16 mm cleave)
- S175 - S423X - Tool kit
- S175 - S175X-A04 - Battery: attachable at the back of S175, 12VDC 5.0AH, including AC adapter and DC power cord, operates 30 fusion splices with heating
- S175 - S902 - Printer (prints splice data)
- S175 - S175X-A02 - RS232C cord (connect to PC/Printer)
- S175 - S175X-A01 - DC power cord (with car cigarette adapter)
| Model | S175 |
|---|

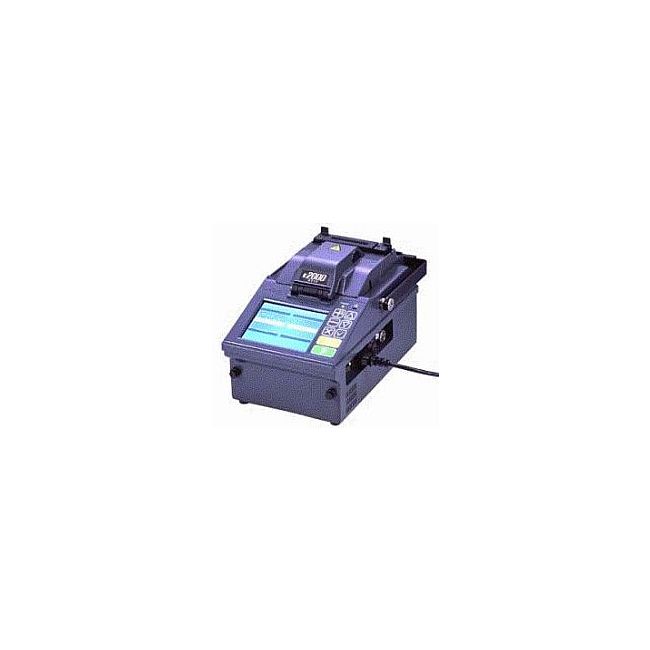

The Furukawa Fitel S175 Fusion Splicer is designed as one of the fastest and most compact direct core monitoring machines available. It supports Single Mode, Multi Mode, and Dispersion Shift fibers with automatic analysis and program selection. With splice times of 20 seconds and heating in 90 seconds, it ensures high productivity. The unit features a splice loss of 0.02dB (SM), 0.01dB (MM), and 0.04dB (DS), alongside reflection values of -60dB or lower. It also integrates 32 splice programs, customizable settings, and advanced inspection functions for core eccentricity, tilt, end gap, and micro bending, making it a reliable optical splicing solution.
The splicer is optimized for silica-based fibers with coating diameters of 0.25–0.9mm and clad diameters of 0.1–0.15mm. It offers a cleave length of 16mm (optional 10mm) and tension testing up to 440g. Attenuation splicing ranges from 0 to 10dB in 0.1dB steps, with clear display information including estimation loss, finder images, heater status, and ARC counter.
Testwall can supply the used Furukawa Fitel S175 Fusion Splicer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Furukawa Fitel S175 Fusion Splicer.
