Fluke 1742
| Attribute | Value |
|---|---|
| Measurement Parameters | Voltage, Current, Power, Power Factor, Harmonics, Flicker, Unbalance |
| Voltage Input Range | Up to 1000 V AC (phase-to-neutral), Up to 1732 V AC (phase-to-phase) |
| Current Input Range | 1 mA to 10,000 A (via flexible current probes) |
| Frequency Range | 40 Hz to 70 Hz |
| Power Quality Standards Compliance | EN 50160, IEC 61000-4-30 Class S |
| Memory Storage | 256 MB internal memory (expandable via SD card up to 2 GB) |
| Display | Color graphical LCD display with intuitive user interface |
| Communication Interface | USB, Ethernet (LAN), compatible with Fluke Energy Analyze software |
| Power Supply | 100 V to 500 V AC via measurement inputs (self-powered), or external AC adapter |
| Safety Rating | CAT IV 300 V / CAT III 600 V, IEC 61010-1 |
Fluke 1742 Options:
- 1742 - 1742-6/UPGRADE - Upgrade 1742 to 1746 functionality (includes magnetic probes)
- 1742 - 1742-8/UPGRADE - Upgrade 1742 to 1748 functionality (includes magnetic probes and hanger kit)
- 1742 - IEEE519/REPORT - Software license for IEEE 519 reporting
- 1742 - /15 - Includes i17XX-flex1500 24" Current Probe (x4)
- 1742 - /30 - Includes i17XX-flex3000 24" Current Probe (x4)
- 1742 - /B - Base model (no current probes included)
- 1742 - /EUS - Power Cords supplied with MA-C8 adapter: EU/US/UK
- 1742 - /INTL - Power Cords supplied with MA-C8 adapter: EU/US/UK/CN-AUS/BR
| Model | 1742 |
|---|

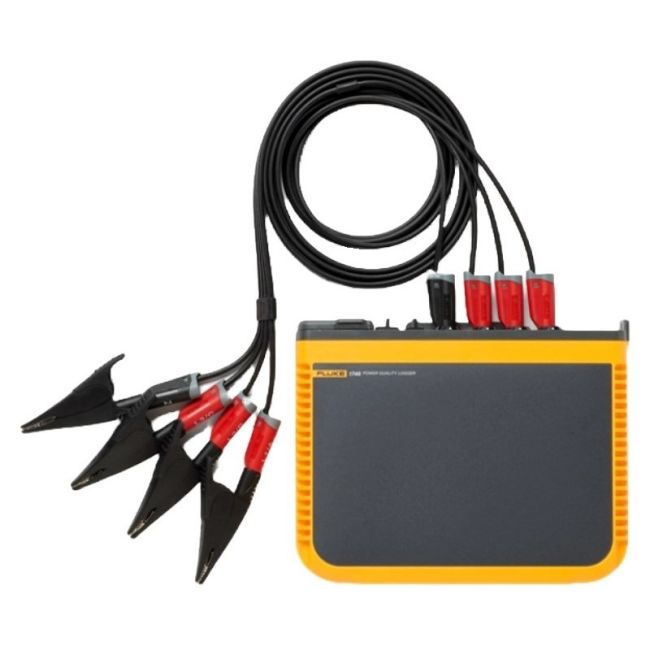

FLUKE 1742 Three Phase Power Quality Logger
The Fluke 1742 Three-Phase Power Quality Loggers is designed for technicians and engineers troubleshooting, quantifying energy usage, and analyzing power distribution systems. Compliant with international power quality standards, such as IEC 61000-4-30, it can capture events to uncover intermittent power quality issues more easily.
The Fluke 1742 logger measures all three voltage and cur phases, plus neutral current, meeting IEC 61000-4-30 Class A Edition 3 standard for power quality measurement. It includes features like event waveform capture, RMS event profile, and measures harmonics, interharmonics, unbalance, flicker, and rapid voltage changes. The Fluke 1742 offers wireless real-time measurements, easy data download, and advanced analysis capabilities through the Energy Analyze plus software.
Specifications for the FLUKE 1742 Three Phase Power Quality Logger Include:
| Voltage Range | 1000 V |
| Frequency Range | 42.5 Hz to 69 Hz |
| Max Voltage Resolution | 0.1 V |
