Fluke 1748
| Attribute | Value |
|---|---|
| Voltage Measurement Range | Up to 1000V AC/DC |
| Current Measurement | Up to 6000A AC/DC (with optional current probes) |
| Memory / Storage | Internal memory capable of storing up to 600 days of data logging |
| Power Quality Parameters | Voltage, current, power (W, VA, VAR), power factor, harmonics up to 50th order |
| Display | Color LCD touchscreen display |
| Communication Interface | USB and Ethernet connectivity for data transfer and remote monitoring |
| Measurement Categories | CAT IV 400V / CAT III 600V safety rated |
| Power Supply | AC power adapter or battery-powered operation |
| Phases Supported | Single-phase, split-phase, and three-phase systems |
| Software | Compatible with Fluke Energy Analyze Plus software for advanced analysis and reporting |
Fluke 1748 Options:
- 1748 - /15/EUS - With WiFi/BLE Adapter and i17XX-flex1500 24" Current Probe (x4), EU/US/UK Power Cords with MA-C8 adapter
- 1748 - /30/EUS - With WiFi/BLE Adapter and i17XX-flex3000 24" Current Probe (x4), EU/US/UK Power Cords with MA-C8 adapter
- 1748 - /B/EUS - With WiFi/BLE Adapter, no current probes, EU/US/UK Power Cords with MA-C8 adapter
- 1748 - /15/INTL - With i17XX-flex1500 24" Current Probe (x4), EU/US/UK/CN-AUS/BR Power Cords with MA-C8 adapter
- 1748 - /30/INTL - With i17XX-flex3000 24" Current Probe (x4), EU/US/UK/CN-AUS/BR Power Cords with MA-C8 adapter
- 1748 - /B/INTL - No current probes, EU/US/UK/CN-AUS/BR Power Cords with MA-C8 adapter
- 1748 - 1746-8/UPGRADE - Upgrade 1746 to 1748 functionality (includes hanger kit)
- 1748 - 1742-8/UPGRADE - Upgrade 1742 to 1748 functionality (includes magnetic probes and hanger kit)
- 1748 - IEEE519/REPORT - Software license for IEEE 519 reporting
| Model | 1748 |
|---|

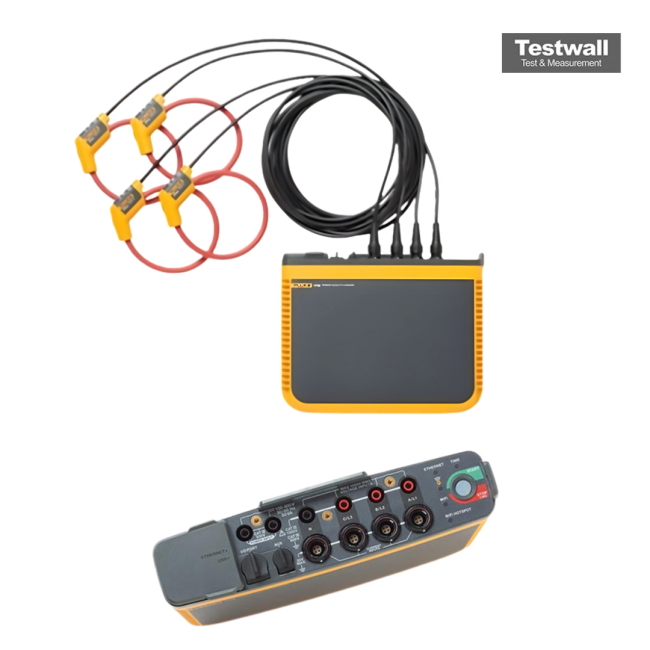

FLUKE 1748 Three Phase Power Quality Logger
The Fluke 1748 Three-Phase Power Quality Loggers is designed for technicians and engineers troubleshooting, quantifying energy usage, and analyzing power distribution systems. Compliant with international power quality standards, such as IEC 61000-4-30, it can simultaneously log up to 500 parameters, capturing events to uncover intermittent power quality issues more easily.
The Fluke 1748 logger measures all three voltage and cur phases, plus neutral current, meeting IEC 61000-4-30 Class A Edition 3 standard for power quality measurement. It includes features like event waveform capture, RMS event profile, and measures harmonics, interharmonics, unbalance, flicker, and rapid voltage changes. The Fluke 1748 logs over 500 parameters, aiding in detailed power quality analysis and predictive maintenance by calculating cur harmonics limits. It offers wireless real-time measurements, easy data download, and advanced analysis capabilities through the Energy Analyze plus software.
Specifications for the FLUKE 1748 Three Phase Power Quality Logger Include:
| Voltage Range | 1000 V |
| Frequency Range | 42.5 Hz to 69 Hz |
| Max Voltage Resolution | 0.1 V |
