Fluke 393-FC
| Attribute | Value |
|---|---|
| AC/DC Voltage Measurement Range | Up to 1500V DC / 1000V AC |
| Current Measurement Range | Up to 999.9A AC/DC (clamp meter) |
| True RMS | Yes |
| CAT III Safety Rating | CAT III 1500V / CAT IV 600V |
| Wireless Connectivity | Bluetooth (Fluke Connect compatible) |
| Display | Large backlit digital display |
| Resistance Measurement | Up to 40 MΩ |
| Frequency Measurement | 5 Hz to 1 kHz |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Battery Type | 4 x AA batteries |
| Model | 393-FC |
|---|

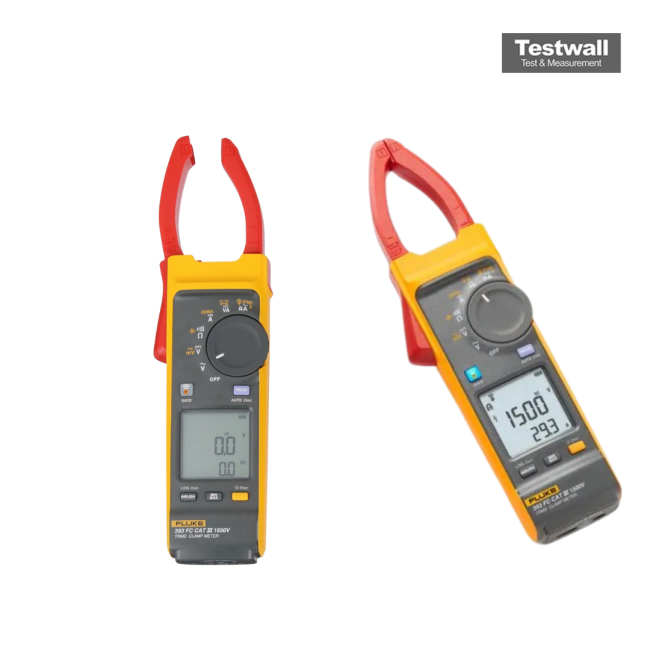

Fluke 393-FC Solar Clamp Meter
The Fluke 393-FC Solar Clamp Meter with iFlex is designed for technicians who work in high voltage dc environment: solar arrays, wind power, electric railways, data centers battery banks for uninterruptible power supplies. The clamp will measure up to 1500 V dc, 1000 V ac, and up to 999.9 A dc or ac through the clamp jaw. The included iFlex flexible cur probe extended ac cur measurements up to 2500 amps.
Fluke 393-FC Solar Clamp Meter has a thin jaw, giving you access to cables in crowded combiner boxes. Test leads are designed with your work in mind, and are also rated to CAT III 1500 V. Fluke 393-FC is IP54 rated, ideal for work outdoors including PV panel testing. When measuring ac cur the included iFlex flexible cur probe gives you unparalleled access to cable is tight spaces. The iFlex probe can be twisted through extremely small spaces and provide accurate cur measurements. Fluke 393-FC Solar Clamp Meter works efficiently with dc power measurement, audio polarity and visual continuity.
Specifications for the Fluke 393-FC Solar Clamp Meter Include:
| Maximum AC current | 2500 A |
| Maximum DC current | 999.9 A |
| Maximum AC voltage | 1000 V |
| Maximum DC voltage | 1500 V |
