Fluke 4180
| Attribute | Value |
|---|---|
| Temperature Range | -10°C to 1000°C (14°F to 1832°F) |
| Temperature Accuracy | ±1°C or ±1% of reading (whichever is greater) |
| Emissivity Range | 0.100 to 1.000 (adjustable in 0.001 increments) |
| Optical Resolution (D:S) | 50:1 |
| Spectral Response | 8 µm to 14 µm |
| Display | Backlit LCD with simultaneous IR and visible light imaging |
| Response Time | Less than 500 ms (95% response) |
| Communication Interface | USB and RS-232 |
| Power Supply | 4 AA alkaline batteries or AC adapter |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Model | 4180 |
|---|

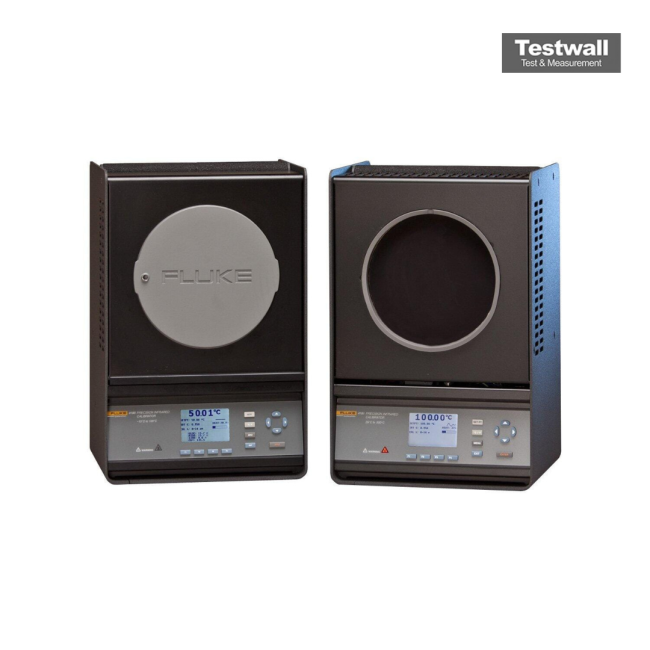

Fluke 4180 Black Body Calibrator
The Fluke 4180 Black Body Calibrator is a Precision Infrared calibrator designed for calibrating infrared thermometers and thermal imagers within a specific temperature range. It is is fast, accurate, and easy to use. Fluke 4180 Black Body Calibrator comes with an accredited calibration from one of the world's most trusted temperature calibration laboratories, sample calibration procedures for Fluke thermometers built right in and everything you need to get started making highquality infrared thermometer calibrations.
Fluke 4180 Black Body Calibrator has a temperature range temperatures from €“15 °C to 120 °C. In addition, with accuracies as good as ± 0.35 °C the 4180 can meet its specifications without additional emissivity related corrections, leading to legitimate test uncertainty ratios (TUR) as good as 4:1. Most people associate a blackbody calibration source with calibrating infrared thermometers. Although the word blackbody specifically refers to an ideal surface that emits and absorbs electromagnetic radiation with the maximum amount of power possible at a given temperature, many calibrators with non-ideal surfaces are also referred to as "blackbody calibrators." Fluke 4180 Black Body Calibrator can be radiometrically calibrated to correct for uncertainties caused by emissivity and heat loss at the surface of the "blackbody" calibration source.
Specifications for the Fluke 4180 Black Body Calibrator Include:
| Temperature range | €“15 °C to 120 °C |
| Nominal emissivity | 0.95 |
| Stability | ±0.10 °C at €“15 °C; ±0.05 °C at 0 °C; ±0.10 °C at 120 °C |
| Heating time | 15 min: €“15 °C to 120 °C; 14 min: 23 °C to 120 °C |
