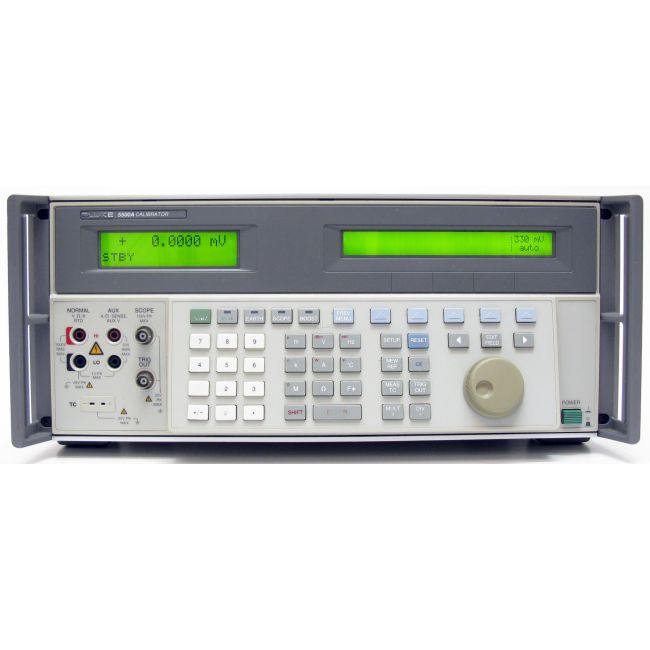

Fluke 5500A-SC600
| Attribute | Value |
|---|---|
| Calibration Option | SC600 Oscilloscope Calibration Option |
| Compatible Base Model | Fluke 5500A Multi-Product Calibrator |
| Oscilloscope Bandwidth Coverage | Up to 600 MHz |
| Leveled Sine Wave Output Frequency Range | 0.1 Hz to 600 MHz |
| Leveled Sine Wave Amplitude Range | 1 mV to 2.2 V (into 50 Ω) |
| Time Mark Output | Provides time mark signals for oscilloscope time base calibration |
| Edge Speed (Rise/Fall Time) | Transition duration less than 600 ps |
| Output Impedance | 50 Ω |
| Supported Calibration Standards | Meets requirements for calibrating oscilloscopes per manufacturer specifications |
| Interface/Integration | Fully integrated with Fluke 5500A calibrator via internal option module |
| Model | 5500A-SC600 |
|---|
The Fluke 5500A-SC600 is a precision high-frequency calibration accessory designed for oscilloscope calibration up to 600 MHz when paired with the Fluke 5500A. It generates ultra-fast edge transitions, stable pulse outputs, and clean reference signals to verify rise time, overshoot, bandwidth, and triggering accuracy in modern digital oscilloscopes.
With comprehensive checks for timebase linearity, vertical gain, and overall signal integrity, the SC600 ensures precise and repeatable calibration results for advanced laboratories and high-speed applications.
Testwall can supply the used Fluke 5500A-SC600, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Fluke 5500A-SC600.
