Fluke 568
| Attribute | Value |
|---|---|
| Temperature Range | -40°C to 800°C (-40°F to 1472°F) |
| Accuracy | ±1°C or ±1% (whichever is greater) for infrared measurements |
| Distance-to-Spot Ratio | 50:1 |
| Emissivity | Adjustable from 0.10 to 1.00 |
| Thermocouple Input | Type K thermocouple input for contact temperature measurement |
| Display | Backlit LCD display with laser sighting |
| Response Time | 500 milliseconds |
| Spectral Response | 8 to 14 µm |
| Power Supply | 9V alkaline battery (approximately 12 hours of continuous use) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Model | 568 |
|---|

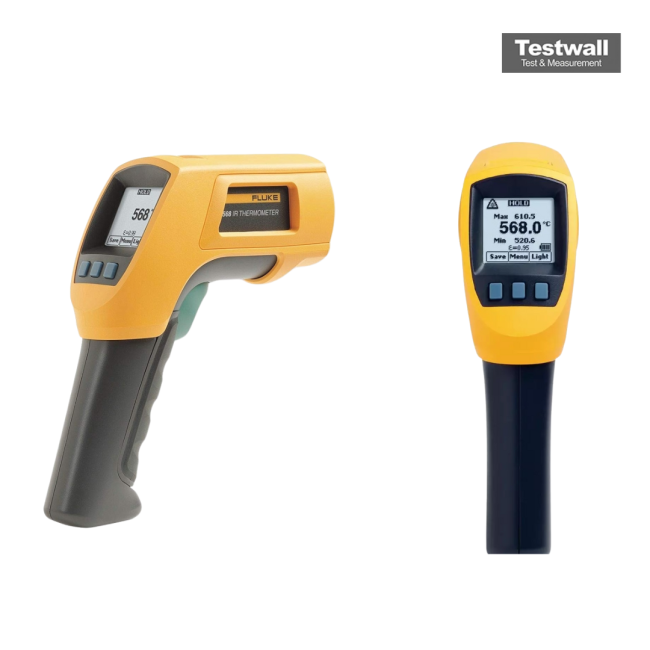

Fluke 568 Contact & Infrared Temperature Gun
Fluke 568 Contact & Infrared Temperature Gun is a two-in-one infrared and contact thermometer with an innovative dot matrix display. It comes with a simple, three-button on-screen menu interface (in 7 languages), which is quick to use and makes even complex measurements easy. It is a combination of a contact and non-contact thermometer in one compact tool. Fluke 568 Contact & Infrared Temperature Gun provides a larger temperature range and features controlled through an intuitive graphical display and menu.
Fluke 568 Contact & Infrared Temperature Gun confidently measures a wide variety of surfaces with the adjustable emissivity feature, including a built-in material table. With just a few pushes of a button, users can adjust emissivity, record data, or turn on and off alarms. The 50:1 distance-to-spot ratio allows users to measure smaller objects from further away. Featuring rugged and ergonomic design, Fluke 568 is built to withstand tough industrial, electrical, HVAC, and mechanical environments.
Specifications for the Fluke 568 Contact & Infrared Temperature Gun Include:
| Infrared temperature range | -40 °C to 800 °C (-40 °F to 1472 °F) |
| Display resolution | 0.1 °C / 0.1 °F |
| Infrared spectral response | 8 µm to 14 µm |
| Infrared response time | < 500 msec |
