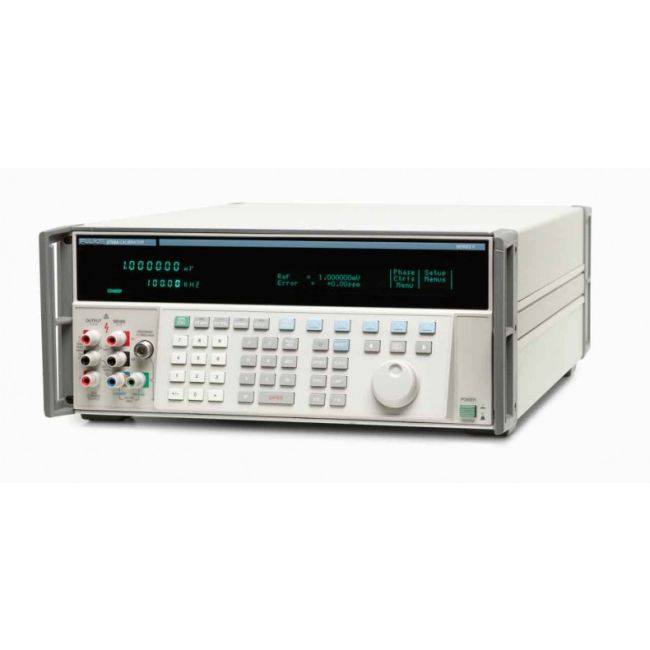

Fluke 5720A - 03 Calibrator
| Attribute | Value |
|---|---|
| DC Voltage Range | 0 to ±1020 V |
| DC Voltage Accuracy (Best) | ±1.5 ppm of output |
| AC Voltage Range | 1 mV to 1020 V (10 Hz to 500 kHz) |
| DC Current Range | 0 to ±20.5 A |
| AC Current Range | up to 20.5 A (10 Hz to 10 kHz) |
| Resistance Range | 0 Ω to 1.9 GΩ |
| Resistance Accuracy (Best) | ±8 ppm of output |
| Output Terminals | 2-wire and 4-wire configurations |
| Operating Temperature | 18 °C to 28 °C |
| Power Requirements | 100 V to 240 V AC, 50/60 Hz |
Fluke 5720A - 03 Calibrator Options:
- 5700A - 03 - Wideband AC Voltage (compatible with both the 5700A and the 5720A)
| Model | 5720A |
|---|
The Fluke 5720A Calibrator surpasses the benchmark 5700A with enhanced accuracy, offering DC voltage from 0 to ±1100V at ±3.5 ppm, AC voltage up to 1100V across 10 Hz–1 MHz at ±45 ppm, and resistance up to 100 MΩ with ±8.5 ppm accuracy. It also supports DC currents to ±2.2A (11A with 5725A) and AC currents up to 10 kHz. With its wideband AC option, it delivers precise voltage from 300 mV to 3.5V up to 30 MHz with unmatched stability.
Designed for demanding workloads, it calibrates multimeters up to 8½ digits with exceptional speed, accuracy, and reliability. Hardware and firmware enhancements ensure tighter performance tolerances.
Testwall can supply the used Fluke 5720A Calibrator with Wideband Option, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Fluke 5720A Calibrator.
