Fluke 718-300G
| Attribute | Value |
|---|---|
| Pressure Range | 0 to 300 psi (0 to 2068 kPa) |
| Pressure Type | Gauge |
| Accuracy | ±0.2% of full scale |
| Pump Type | Internal hand pump with fine adjustment |
| Display | Dual display LCD with backlight |
| Pressure Units | psi, kPa, bar, kg/cm², inHg, mmHg, inH2O, cmH2O |
| Battery Life | Approximately 150 hours of continuous use |
| Battery Type | 9V alkaline battery |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Pressure Port Connection | 1/4 NPT male fitting |
| Model | 718-300G |
|---|

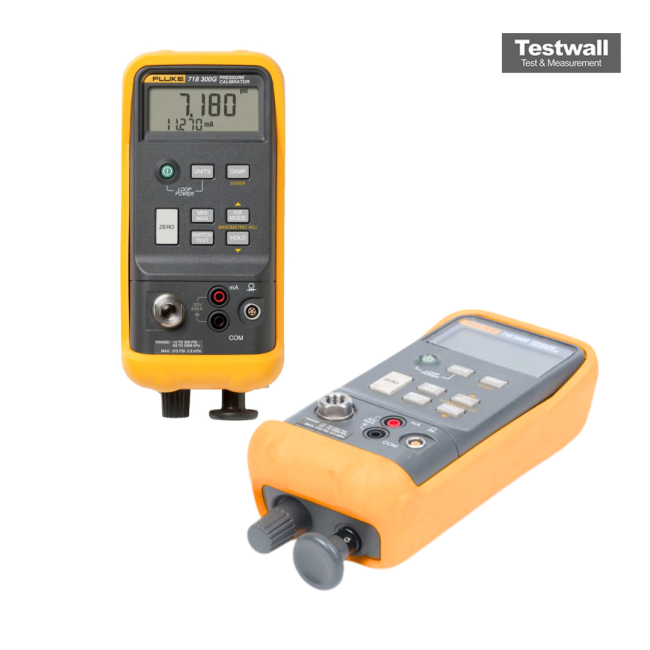

Fluke 718-300G Pressure Calibrator
The Fluke 718-300G Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges, and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). Fluke 718-300G is having a unique easy-to-clean integrated pump which helps protect it from damage and provides the ability to service the pump without disassembly, even in the field.
Fluke 718-300G Pressure Calibrator features Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device. With an easy-to-use error % calculation you can make pass/fail decisions quickly. Meaning you can make decisions in the field without having to analyze the results later. The min/max/hold function also makes it easy to capture changing measurements for comparison or documentation. Fluke 718-300G features the integrated pressure switch test function, and best-in-class mA accuracy (0.015%) which provide a high level of measurement confidence and even broader workload coverage.
Specifications for the Fluke 718-100G Pressure Calibrator Include:
| Range | -12 PSI to 300 PSI, (-850 mbar to 20.68 bar, -85 to 2068.42 kPa) |
| Resolution | 0.01 psi, 0.1 mbar, 0.01 kPa |
| Over pressure | 375 PSI, 25 bar |
| Functions | Zero, Min, Max, Hold, Damp |
