Fluke 831
| Attribute | Value |
|---|---|
| Measurement Type | Laser Shaft Alignment |
| Display | Color touchscreen LCD |
| Alignment Modes | Horizontal, Vertical, Cardan shaft, Bracket, and Geometric alignment |
| Measurement Method | Single-laser, single-detector technology |
| Detector Resolution | 1 µm |
| Measurement Range | Up to 10 m (33 ft) between shafts |
| Battery Life | Up to 8 hours of continuous operation |
| Memory | Stores up to 500 alignment jobs |
| Connectivity | USB and Bluetooth for data transfer and reporting |
| Environmental Rating | IP54 (dust and splash resistant) |
| Model | 831 |
|---|

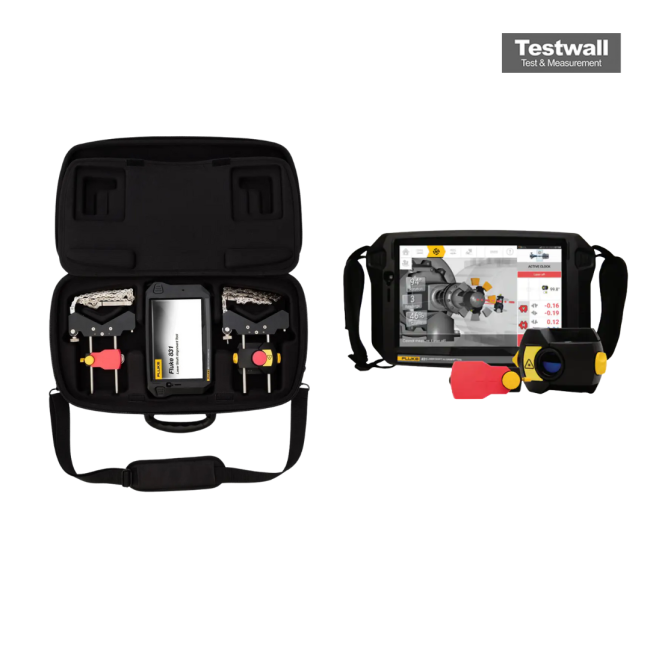

Fluke 831 Laser Shaft Alignment Tool
The Fluke 831 Laser shaft alignment contributes to energy savings and a cleaner environment. It protects assets, extends machine availability, and increases product quality, reducing vibration to a minimal level. Machines that are well aligned at the commissioning stage and regularly maintained will have reduced wear in couplings, bearings, and seals, all of which means reduced plant operating and maintenance costs. A combination of software and hardware evolutions, enabling maintenance and reliability teams to address the full variety of horizontal, angular, and vertical alignment challenges.
The Fluke 831 provides a wide range of coupling types, making it easier for the user to receive an optimal measuring result without deviating from the specific tolerances. The Fluke 831 has a faster setup than any dial indicator, it has a higher precision than any feeler gauge and it produces quicker and easier to read results than a manual matrix calculation. Eliminate sagging over large distances with the Fluke 831 laser technology. You can leverage its integrated Wi-Fi cloud solution to easily transfer data from the 831 handheld device to the ARC 4.0 PC software.
Specifications for the Fluke 831 Laser Shaft Alignment Tool Include:
| Laser Wavelength | 630 - 680 nm (red, visible) |
| Camera Resolution Main/Front | 13.0 MP, Auto Focus/5.0 MP |
| Transmission Distance | Up to 30 m (98 ft) direct line of sight |
| Reflector (prism) Accuracy (avg) | >99% |
