Fluke 9150-A
| Attribute | Value |
|---|---|
| Temperature Range | -45°C to 155°C (-49°F to 311°F) |
| Temperature Stability | ±0.005°C |
| Temperature Uniformity | ±0.01°C at 0°C |
| Display Resolution | 0.001°C |
| Heating/Cooling Time | Approximately 10 minutes from 23°C to 155°C; approximately 20 minutes from 23°C to -45°C |
| Well Dimensions (Depth x Diameter) | 165 mm x 28 mm (6.5 in x 1.1 in) |
| Power Requirements | 100 V to 240 V AC, 50/60 Hz, 300 W maximum |
| Communication Interface | RS-232 |
| Operating Environment | 10°C to 40°C (50°F to 104°F), up to 95% relative humidity (non-condensing) |
| Dimensions (H x W x D) | 330 mm x 160 mm x 290 mm (13 in x 6.3 in x 11.4 in) |
Fluke 9150-A Options:
- 9150-A - A - Thermocouple Furnace with Insert "A" included
- 9150-B - B - Thermocouple Furnace with Insert "B" included
- 9150-C - C - Thermocouple Furnace with Insert "C" included
- 9150-D - D - Thermocouple Furnace with Insert "D" included
| Model | 9150-A |
|---|

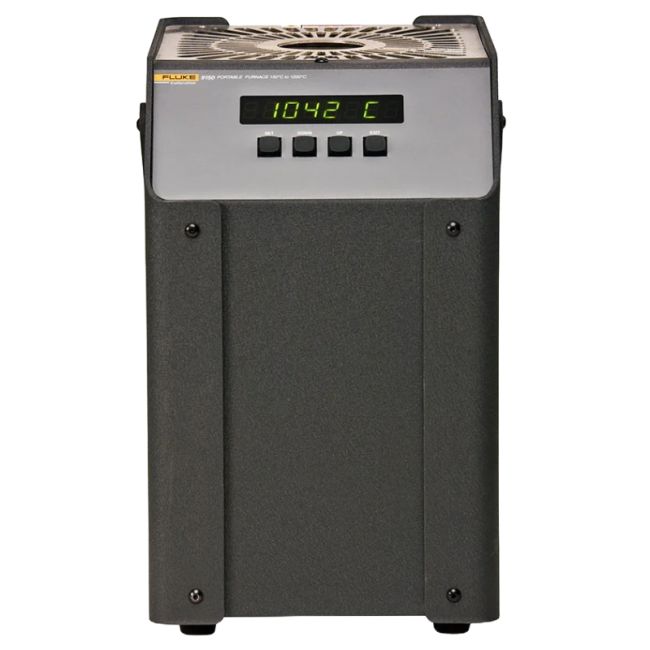

Fluke 9150-A Thermocouple Furnace
The Fluke 9150-A Thermocouple Furnace is a highly accurate and versatile dry block designed for calibrating a wide range of thermocouples. It offers exceptional termperature stability and control, making it ideal for various industrial and laboratory applications. With a stability of ±0.5 °C, it has a temperature range to 1200 °C and a display accuracy of ±5 °C across its entire range. With interchangeable temperature blocks, you can check thermocouples as small as 1/16 of an inch to 1/2 inch in diameter. The Fluke 9150-A Thermocouple Furnace works with 115 or 230 VAC power.
Fluke 9150-A Thermocouple Furnace uses Fluke Calibration's own microprocessor-based controller for great stability and setpoint accuracy. It has a removable well insert for versatility. Well-inserts are removable for even greater versatility, while multiple fault protection devices ensure user and instrument safety and protection. It has rapid cool-down and heat-up times. With a large LED front panel, the cur well temperature can be read and set to any desired temperature within the specified range. Fluke 9150-A Thermocouple Furnace comes with an RS-232 port for connection to a PC.
Specifications for the Fluke 9150-A Thermocouple Furnace Include:
| Temperature range | 150 °C to 1200 °C (302 °F to 2192 °F) |
| Display resolution | 0.1 ° to 999.9 °, 1 ° above 1000 ° |
| Stability | ±0.5 °C |
| Display accuracy | ±5 °C |
