Fluke DSX-5000QI
| Attribute | Value |
|---|---|
| Cable Testing Standard | Cat 8/Class I and II, Cat 7A/Class FA, Cat 6A/Class EA, Cat 6/Class E, Cat 5e/Class D |
| Frequency Range | Up to 2000 MHz |
| Test Speed | 10 seconds for Cat 6A (typical) |
| Display | 5-inch color touchscreen LCD |
| Storage Capacity | Up to 10,000 Cat 6A Autotest results (internal memory) |
| Connector Interface | Permanent Link and Channel adapters with Quick Install (QI) interface |
| Battery Life | Up to 8 hours of continuous testing |
| Certifications | IEEE 802.3an, ANSI/TIA-568-C.2, ISO/IEC 11801 |
| Wireless Connectivity | Wi-Fi 802.11 b/g/n for cloud upload via LinkWare Live |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Model | DSX-5000QI |
|---|

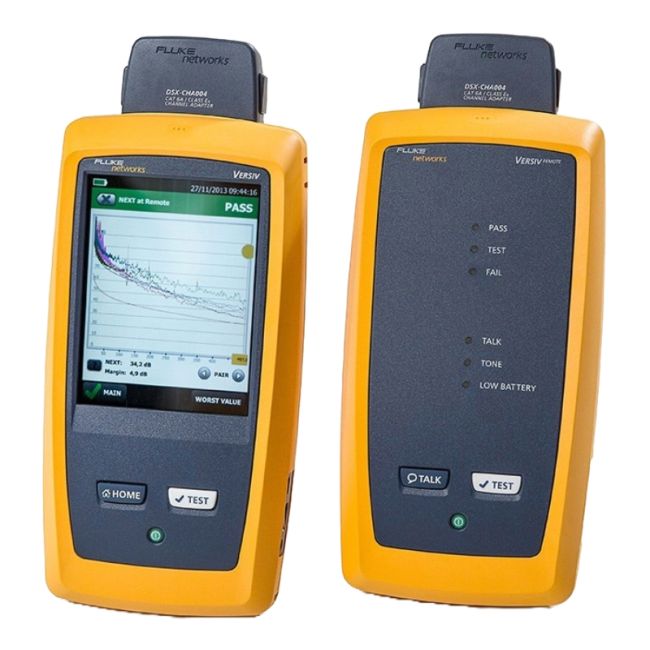

FLUKE DSX-5000QI Versiv Cable Analyzer
The Fluke DSX-5000QI CableAnalyzer copper test solution, streamlines the testing and certification of twisted pair cabling for 10 Gigabit Ethernet deployments, covering Cat 5e, 6, 6A, and Class FA systems. It accelerates the certification process, ensuring accuracy and reducing common slowdowns like setup errors and result misinterpretation. With features like ProjX management, Taptive user interface, and LinkWare software, it caters to users of varying skill levels, enhancing efficiency and project management.
The Fluke DSX-5000QI performance includes a 10-second Cat 6A test, graphical fault analysis, and support for industry standards. It excels in accuracy, exceeding Level V standards, and supports balance measurements critical for noise immunity. The DSX-5000 CableAnalyzer is endorsed by cabling vendors worldwide, offering unmatched speed and efficiency for project completion and system acceptance.
Specifications for the FLUKE DSX-5000QI Versiv Cable Analyzer Include:
| Speed of Autotest | Full 2-way Autotest of Cat 5E or 6D or E: 9s (10s for Cat 6A/Class EA) |
| Max Frequency | 1200 MHz |
| TIA (Test Standard) | Cat 3, 4, 5, 5E, 6, 6A per TIA 568-C.2 |
| ISO/IEC (Test Standard) | Class C and D, E, Ea, F, FA certification per ISO/IEC 11801:2002 and amendments |
