Fluke DSX2-5000
| Attribute | Value |
|---|---|
| Cable Testing Standard | Cat 8/Class I and II, Cat 7A/Class FA, Cat 6A/Class EA, Cat 6/Class E, Cat 5e/Class D |
| Frequency Range | Up to 2000 MHz |
| Test Speed | 10 seconds for Cat 6A, 14 seconds for Cat 8 |
| Display | 5-inch color touchscreen LCD |
| Memory Storage | Up to 10,000 autotest results stored internally |
| Battery Life | Up to 8 hours of continuous testing |
| Connector Interface | Permanent Link and Channel adapters with automatic adapter recognition |
| Certification | ANSI/TIA-568, ISO/IEC 11801, EN 50173 standards compliance |
| Data Transfer | USB, Wi-Fi, and Bluetooth connectivity for results upload to LinkWare Live |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Fluke DSX2-5000 Options:
- DSX2-5000 - DSX2-5000 - 1GHZ DSX-5000 CableAnalyzer with Wi-Fi
- DSX2-5000 - DSX2-5000/GLD - 1GHZ DSX-5000 CableAnalyzer with Wi-Fi and 1 YR Gold Support
- DSX2-5000 - DSX2-5000QI - 1GHZ DSX-5000 CableAnalyzer with Quad OLTS, Fiber Inspection and Wi-Fi
- DSX2-5000 - DSX2-5000QI/GLD - 1GHZ DSX-5000 CableAnalyzer with Quad OLTS, Fiber Inspection, Wi-Fi and 1 YR Gold Support
- DSX2-5000 - DSX2-5000-NW - 1GHZ DSX-5000 CableAnalyzer (Non-Wireless)
- DSX2-5000 - DSX-ADD - DSX-5000 Add-on Kit
- DSX2-5000 - DSX2-ADD-R - DSX2-5000 Add-on Kit with Remote (not compatible with original Versiv main)
- DSX2-5000 - DSX2-CFP-Q-ADD-R - DSX2-5000 with Quad OLTS Add-on Kit with Remote (not compatible with original Versiv main)
- DSX2-5000 - DSX-OFP-Q-ADD - DSX-5000 with Quad OTDR Add-on Kit
- DSX2-5000 - DSX-PLA011S - DSX-5000 TERA Cat 7A/Class FA PLA Set
- DSX2-5000 - DSX-CHA011S - DSX-5000 TERA Cat 7A/Class FA CHA Set
- DSX2-5000 - DSX-CHA-5-GG45-S - DSX GG45/ARJ45 Class FA Channel Adapter Set (1 GHz)
- DSX2-5000 - GLD-DSX-5000 - 1 year Gold Support, DSX2-5000 or DSX-5000
- DSX2-5000 - GLD3-DSX-5000 - 3 year Gold Support, DSX2-5000 or DSX-5000
- DSX2-5000 - GLD-DSX-5000QI - 1 year Gold Support, DSX2-5000QI or DSX-5000QI
- DSX2-5000 - GLD3-DSX-5000QI - 3 year Gold Support, DSX2-5000QI or DSX-5000QI
- DSX2-5000 - GLD-DSX-ADD-R - 1 year Gold Support, DSX2-5000-ADD-R or DSX-ADD-R
- DSX2-5000 - GLD3-DSX-ADD-R - 3 year Gold Support, DSX2-5000-ADD-R or DSX-ADD-R
- DSX2-5000 - GLD-DSX-CFP-Q-ADDR - 1 year Gold Support, DSX2-CFP-Q-ADD/R or DSX-CFP-Q-ADD-R
- DSX2-5000 - GLD3-DSX-CFP-Q-ADD - 3 year Gold Support, DSX2-CFP-Q-ADD/R or DSX-CFP-Q-ADD-R
| Model | DSX2-5000 |
|---|

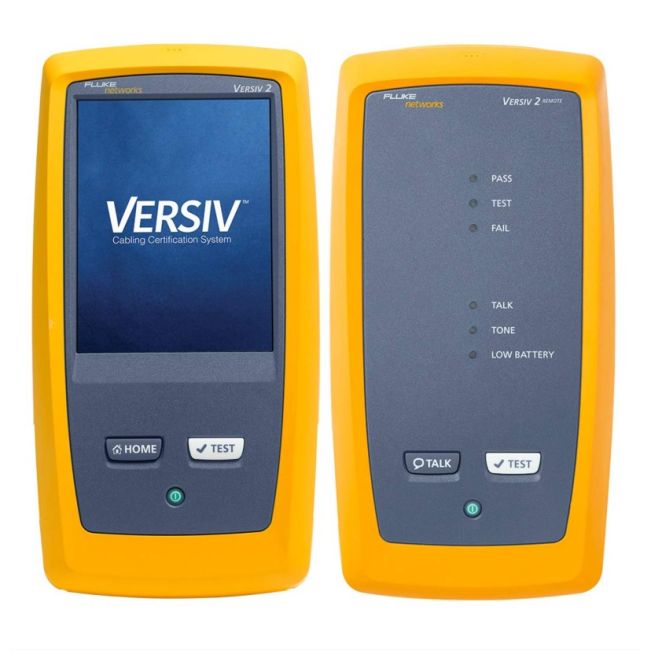

FLUKE DSX2-5000 Versiv Cable Analyzer/Certifier
The Fluke DSX2-5000 CableAnalyzer Series copper test solution enables testing and certification of twisted pair cabling for up to 40 Gigabit Ethernet deployments. As part of the Versiv cabling certification product family, the DSX2-5000 CableAnalyzer Series provides accurate, error-free certification. In the installation business there are multiple teams, varying media types and multiple testing requirements. The difference between being profitable or not is just a few percentage points. The DSX certifies copper cabling, complies with all standards including Level VI/2G accuracy, making jobs easier to manage, and getting to system acceptance faster.
The Fluke DSX2-5000 is the first field tester to support balance measurements including Transverse Conversion Loss (TCL) and Equal Level Transverse Conversion Transfer Loss (ELTCTL). TCL and ELTCTL are important measurements found in the cabling standards. They define a minimum performance for balance, a key parameter to help determine noise immunity. The ProjX management system on the DSX2-5000 CableAnalyzer Series provides individual project files for all job specific details to be saved under a simple name, eliminating the need to re-enter job specific details after starting a project.
Specifications for the FLUKE DSX2-5000 Versiv Cable Analyzer/Certifier Include:
- Eight second Cat 6A test time contributes to the fastest way to gain certification
- Graphically displays the source of failures including crosstalk and distance to shield faults for faster troubleshooting
- Manage up to 12,000 Cat 6A test results with full graphics
- Capacitive touchscreen allows quick tester setup with easily selectable cable types, standards and testing parameters
- Integrated Wi-Fi allows you to easily upload results to LinkWareTM Live
- Over 1 billion links reported on LinkWare PC management software
