Fluke I400S
| Attribute | Value |
|---|---|
| Current Range | 0 to 400 A AC |
| Output | 1 mV/A |
| Frequency Range | 40 Hz to 5 kHz |
| Conductor Size (Maximum) | 53 mm (2.1 in) diameter |
| Basic Accuracy | ±1% (40 Hz to 1 kHz), ±2% (1 kHz to 5 kHz) |
| Output Connector | 4 mm banana plug |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Safety Rating | CAT III 600 V, CAT IV 300 V |
| Weight | Approximately 300 g (10.6 oz) |
Fluke I400S Options:
- I400S - PM9081/001 - BNC/Banana adapter for DMMs
| Model | I400S |
|---|

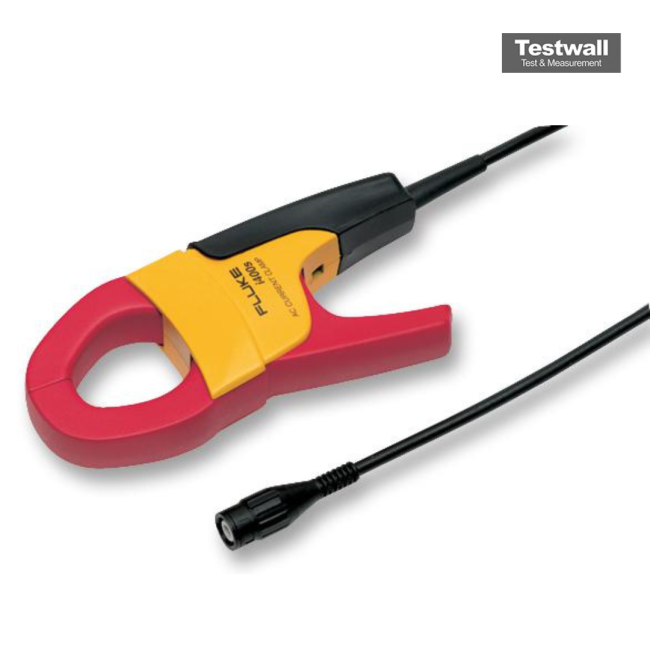

Fluke I400S AC Cur Clamp
The Fluke I400S AC Cur Clamp extends the cur ranges of digital multimeters, power quality analyzers, and portable oscilloscopes and are available for both AC and AC/DC environments. The Fluke i400s is specially designed to offer maximum utility in a compact shape and is the only cur clamp available with a CAT IV 600 V / CAT III 1000 V safety rating.
The Fluke I400S AC Cur Clamp is compatible with any instrument capable of ac millivolt measurements. It can accept a standard BNC connector, and has an input impedance of greater than or equal to 1 M e in parallel with a maximum of 47 pF. The Cur Clamp can also be used with digital multimeters using a BNC-to-banana jack adapter.
Specifications for the Fluke I400S AC Cur Clamp Include:
| Nominal cur range | 0.5 A to 40 A (40 A Range), 5 A to 400 A (400 A Range) |
| Basic accuracy | 2% + 0.015 A (40 A Range) , 2% + 0.04 A (400 A Range) |
| Typical bandwidth | 5 Hz - 10 kHz |
| Output level(s) | 10 mV/A (40 A Range), 1 mV/A (400 A Range) |
