Fluke II910
| Attribute | Value |
|---|---|
| Frequency Range | Up to 100 MHz |
| Maximum Input Voltage | 1000 V CAT II, 600 V CAT III |
| Acoustic Imaging Technology | SoundSight™ acoustic imager with 64-microphone array |
| Display | 5-inch touchscreen LCD with acoustic overlay |
| Detection Capabilities | Partial discharge, corona, compressed air leaks, and mechanical faults |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Battery Life | Up to 8 hours continuous operation |
| Storage | Internal memory with microSD card slot for extended storage |
| Ingress Protection Rating | IP54 (dust and splash resistant) |
| Weight | Approximately 1.5 kg (3.3 lbs) including battery |
| Model | II910 |
|---|

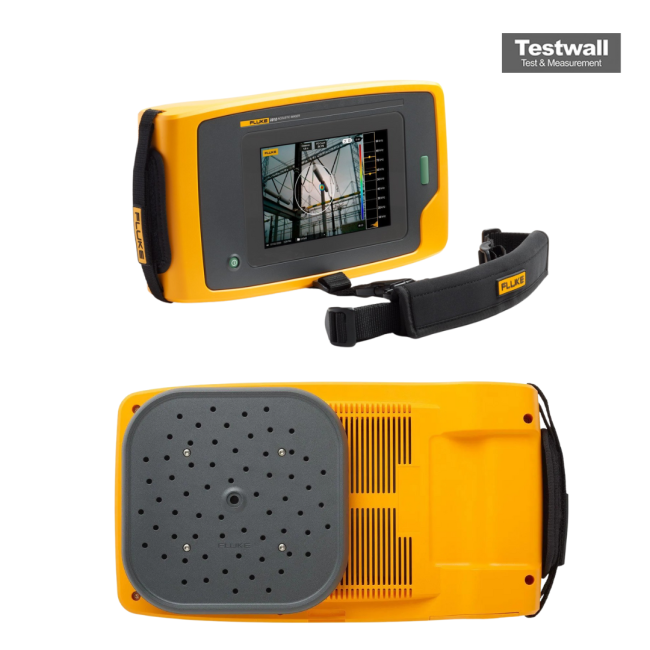

Fluke ii910 Precision Acoustic Imager
The Fluke ii910 is the all-in-one tool for all your leak, PD, and mechanical issues. It's the perfect tool for high voltage electricians, electrical test engineers, and grid maintenance teams that are constantly inspecting and maintaining power distribution and industrial high voltage equipment. The Fluke ii910 provides a safe quick and easy way to detect and locate partial discharge in order to maintain high voltage equipment and prevent catastrophic events.
Equipped with SoundSight technology, The Fluke ii1910 translates the sounds that it hears into a visual representation so that you can quickly locate problem areas. The Fluke ii910 provides increased sensitivity to detect compressed air, gas, steam and vacuum leaks that are smaller or farther away. The higher frequency capability of the Fluke ii910 allows for earlier detection to facilitate early maintenance planning and is why the Fluke ii910 has a frequency range of 2-100Khz.
Specifications for the Fluke ii910 Precision Acoustic Imager Include:
| Detection Range | .5m to >120m (1.6 to >393 feet) |
| Frequency Band | 2 kHz to 100 kHz |
| Resolution | 5 MP |
| Field of View | 63 ° ± 5 ° |
