Fluke OFP-100-Q
| Attribute | Value |
|---|---|
| Wavelengths | 850/1300 nm (multimode), 1310/1550 nm (singlemode) |
| Dynamic Range | Up to 62 dB (singlemode), up to 38 dB (multimode) |
| Fiber Types Supported | Singlemode (OS1/OS2) and Multimode (OM1, OM2, OM3, OM4) |
| Display | Color touchscreen LCD |
| Connector Interface | Universal fiber connector interface (interchangeable adapters) |
| Battery Life | Up to 8 hours of continuous operation |
| Storage | Internal memory with USB data transfer capability |
| Certification Standards | TIA-568, ISO/IEC 14763-3, IEEE 802.3 |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Loss Test Set Capability | Bi-directional optical loss testing with pass/fail reporting |
| Model | OFP-100-Q |
|---|

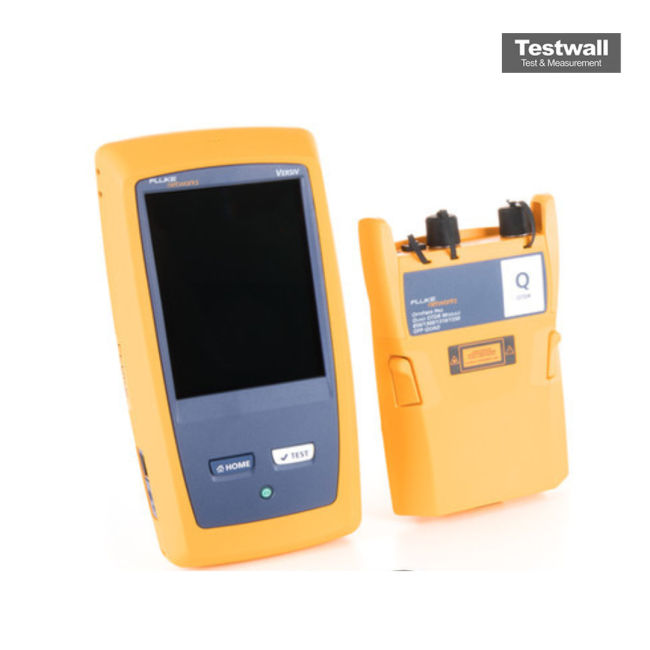

FLUKE OFP-100-Q OptiFiber Pro Quad OTDR Kit
With its simple smartphone user interface and powerful feature set, the Fluke OFP-100-Q turns anyone into an efficient and expert premise fiber troubleshooter or installer. The Fluke OFP-100-Q leverages the most sophisticated optical technology to provide the shortest event dead zone (0.5 m typical for MM) and attenuation dead zone (2.2 m typical for MM and 3.6 m typical for SM) of any OTDR. Leveraging the popular and multi-featured LinkWare cable test management software application, OptiFiber Pro users can easily access the hassle-free project management, report generation, and software upgrade capabilities to manage workflow and consolidate test results.
Another breakthrough with the Fluke OFP-100-Q is the data acquisition speed. While in Quick Test mode, a complete set of data is acquired in as little as two seconds per wavelength. OptiFiber Pro then analyzes the data and displays it as an EventMap event, Table or Trace. The end result is less time spent testing and more time performing other tasks. With a simple one-touch selection, users enter DataCenter OTDR mode €“ without setup time for fine tuning as needed in legacy OTDRs. DataCenter OTDR mode automatically detects OTDR parameters €“ end-detection algorithms, pulse widths, etc €“ without getting confused by the short links or number of connectors. The Fluke OFP-100-Q is the industry's first purpose-built OTDR that meets the unique challenges of an enterprise fiber infrastructure.
Specifications for the FLUKE OFP-100-Q OptiFiber Pro Quad OTDR Kit Include:
| Wavelengths | 850 nm +/- 10 nm, 1300 nm +35/-15 nm, 1310 nm +/- 25 nm, 1550 nm +/- 30 nm |
| Sample Resolution | 3 cm - 400 cm |
| Max Distance Range Setting | MM 40 km / SM 130 km |
| Quick Test Time Setting | MM 2 sec (typical) SM 5 sec (typical) |
