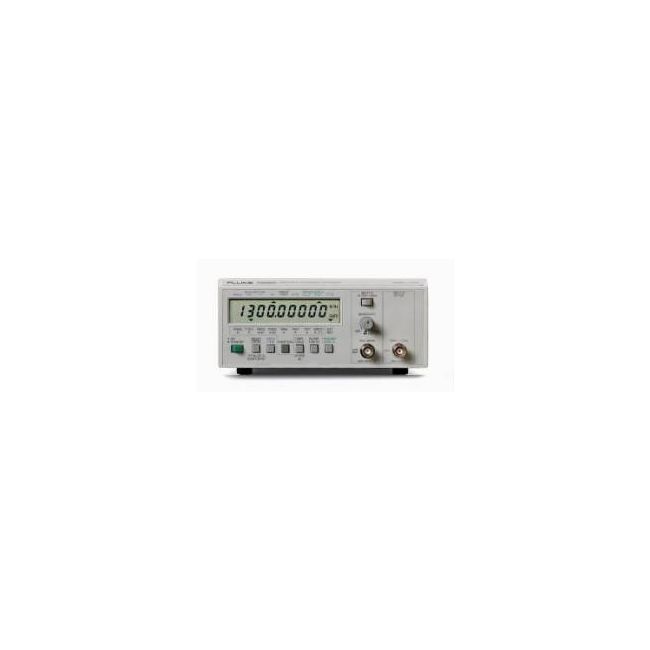

Fluke PM6666
| Attribute | Value |
|---|---|
| Frequency Range | 0.1 Hz to 3 GHz |
| Resolution | Up to 11 digits |
| Input Impedance | 50 Ω / 1 MΩ |
| Sensitivity | 25 mV RMS (100 MHz), 50 mV RMS (3 GHz) |
| Time Interval Measurement Range | 0 to 10 seconds |
| Measurement Functions | Frequency, Period, Time Interval, Pulse Width, Duty Cycle, Phase, Ratio |
| Display | 12-digit LCD display |
| Timebase Accuracy | ±1 ppm aging per year (TCXO standard) |
| Power Supply | 90 to 264 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Model | PM6666 |
|---|
The Fluke PM6666 is a programmable counter/timer offering frequency measurement from 0.1 Hz to 120 MHz, expandable to 1.3 GHz. It integrates reciprocal frequency techniques, programmable sensitivity, and advanced triggering for precision across challenging environments. The GPIB/IEEE-488 interface with bus-learn mode streamlines automated test setups efficiently.
With nine versatile front-panel functions, including voltage min/max, it supports both laboratory and field applications, ensuring adaptability in diverse measurement tasks.
Testwall can supply the used Fluke PM6666, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Fluke PM6666.
