Additel ADT761A
| Attribut | Valeur |
|---|---|
| Plage de pression | Jusqu'à 20 000 psi (1 400 bar) |
| Précision | 0,05% de la pleine échelle |
| Type de pression | Pression manométrique, absolue et différentielle |
| Médias compatibles | Huile, eau, gaz secs et non corrosifs |
| Affichage | Écran LCD numérique haute résolution |
| Alimentation | Batterie rechargeable Li-ion intégrée |
| Autonomie de la batterie | Jusqu'à 30 heures d'utilisation continue |
| Température de fonctionnement | -10°C à +50°C |
| Connectivité | Interface USB et Bluetooth pour transfert de données |
| Certification | Conforme aux normes ATEX et IECEx pour zones explosives |
Additel ADT761A Options:
- ADT761A - 1K - Pressure range 1,000 psig (70 bar.g)
- ADT761A - 500 - Pressure range 500 psig (35 bar.g)
- ADT761A - D - Differential/Gauge pressure range -13.5 to 35 psi (-0.95 to 2.5 bar)
- ADT761A - LLP - Low/Differential pressure range ±30 inH2O (±75 mbar)
- ADT761A - BP - Barometric pressure range 100 to 1200 hPa
- ADT761A - 02 - Accuracy 0.02% of full span
- ADT761A - 05 - Accuracy 0.05% of full span
- ADT761A - CP10 - Low-range module, -13.5 to 10 psig (-0.95 to 0.7 bar.g)
- ADT761A - CP15 - Low-range module, -13.5 to 15 psig (-0.95 to 1 bar.g)
- ADT761A - CP30 - Low-range module, -13.5 to 30 psig (-0.95 to 2 bar.g)
- ADT761A - CP35 - Low-range module, -13.5 to 35 psig (-0.95 to 2.5 bar.g)
- ADT761A - CP50 - Low-range module, -13.5 to 50 psig (-0.95 to 3.5 bar.g)
- ADT761A - CP100 - Low-range module, -13.5 to 100 psig (-0.95 to 7 bar.g)
- ADT761A - CP150 - Low-range module, -13.5 to 150 psig (-0.95 to 10 bar.g)
- ADT761A - CP200 - Low-range module, -13.5 to 200 psig (-0.95 to 14 bar.g)
- ADT761A - CP300 - Low-range module, -13.5 to 300 psig (-0.95 to 20 bar.g)
- ADT761A - CP500 - Low-range module, -13.5 to 500 psig (-0.95 to 35 bar.g)
- ADT761A - CP600 - Low-range module, -13.5 to 600 psig (-0.95 to 40 bar.g)
- ADT761A - DP025 - Low-range module, ±0.25 inH2O (±0.62 mbar)
- ADT761A - DP050 - Low-range module, ±0.5 inH2O (±1.25 mbar)
- ADT761A - DP1 - Low-range module, ±1 inH2O (±2.5 mbar)
- ADT761A - DP2 - Low-range module, ±2 inH2O (±5 mbar)
- ADT761A - DP5 - Low-range module, ±5 inH2O (±10 mbar)
- ADT761A - DP10 - Low-range module, ±10 inH2O (±25 mbar)
- ADT761A - DP20 - Low-range module, ±20 inH2O (±50 mbar)
- ADT761A - N - Pressure port type: 1/4 NPT female
- ADT761A - N2 - Pressure port type: 1/2 NPT female
- ADT761A - B - Pressure port type: 1/4 BSP female
- ADT761A - B2 - Pressure port type: 1/2 BSP female
- ADT761A - M - Pressure port type: M20x1.5 female
| Model | ADT761A |
|---|

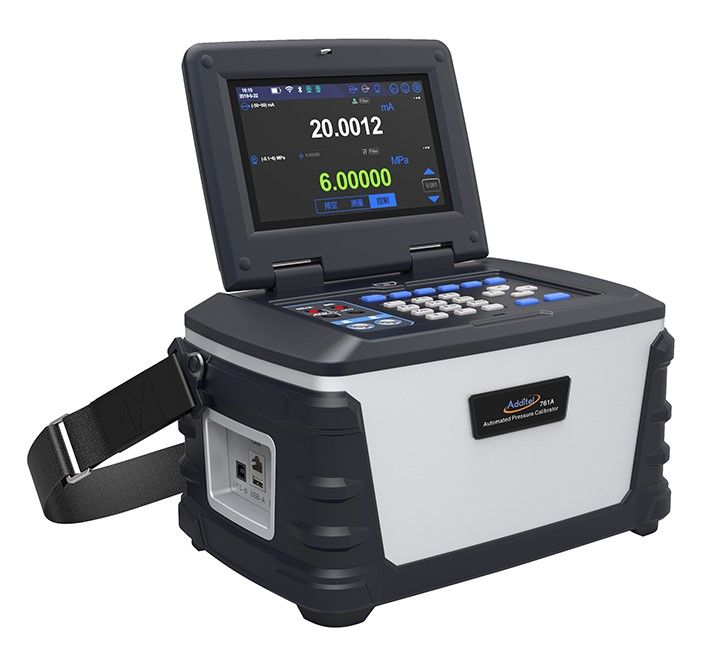

ADDITEL ADT761A Automated Pressure Calibrator
The Additel ADT761A Automated Pressure Calibrator's notable enhancements include an expanded pressure range of up to 1,000 psi, removable internal pressure modules, faster pressure generation, the ability to read two external pressure modules, and a user-friendly touch screen display. The Additel ADT761A includes various models that cater to specific calibration needs, offering exceptional accuracy and control stability, making them versatile tools for professionals across various industries.
For low-pressure calibration the Additel ADT761A-LLP comes with a ±30 inH2O ( ±75 mbar) high range module and a low range module of your choice ranging from ±20 inH2O to as low as ±0.25 inH2O ( ±50 to ±0.62 mbar). For differential and gauge measurement the ADT761A-D unit comes with a CP35 module (-13.5 to 35 psi) and one low range module of your choice ranging as low as ±10 inH2O (25 mbar). For high-pressure control the ADT761A-500 unit comes with a CP500 module (-13 to 500 psig) for the high range and the low range can be preconfigured based on the variety of modules available down to 10 psig (0.7 bar.g). For extreme 1,000 psi control the ADT761A-1K unit comes with a CP1K module (-13 to 1,000 psig) for the high range and the low range can be preconfigured based on the variety of modules available down to 30 psig (2 bar.g). Additionally, the 761A-BP is designed for precise barometer sensor calibration, making Additel ADT761A a comprehensive solution for calibration professionals.
Specifications for the ADDITEL ADT761A Automated Pressure Calibrator Include:
| Pressure Range | -30 inH20 (-75 mbar) to 1,000 psig (70 bar.g) |
| Over Range Indication | 120% |
| Resolution | 6 digits |
| Pressure Types | Differential, Gauge and Absolute |
