Additel ADT762
| Attribut | Valeur |
|---|---|
| Plage de pression | De -0,95 bar à 1 000 bar (selon le module sélectionné) |
| Précision | 0,02% de la pleine échelle |
| Type de mesure | Pression absolue, relative et différentielle |
| Affichage | Écran LCD rétroéclairé haute résolution |
| Unités de pression | 28 unités de pression disponibles (bar, PSI, kPa, MPa, etc.) |
| Alimentation | Batterie rechargeable Li-ion, autonomie jusqu'à 30 heures |
| Interface de communication | USB, RS-232 |
| Température de fonctionnement | -10°C à +50°C |
| Indice de protection | IP65 |
| Modules de pression interchangeables | Compatible avec les modules de pression Additel 700 series |
Additel ADT762 Options:
- ADT762 - 01 - Accuracy 0.01% of full span
- ADT762 - 02 - Accuracy 0.02% of full span
- ADT762 - N - Pressure port type: 1/4 NPT female
- ADT762 - N2 - Pressure port type: 1/2 NPT female
- ADT762 - B - Pressure port type: 1/4 BSP female
- ADT762 - B2 - Pressure port type: 1/2 BSP female
- ADT762 - M - Pressure port type: M20X1.5 female
| Model | ADT762 |
|---|

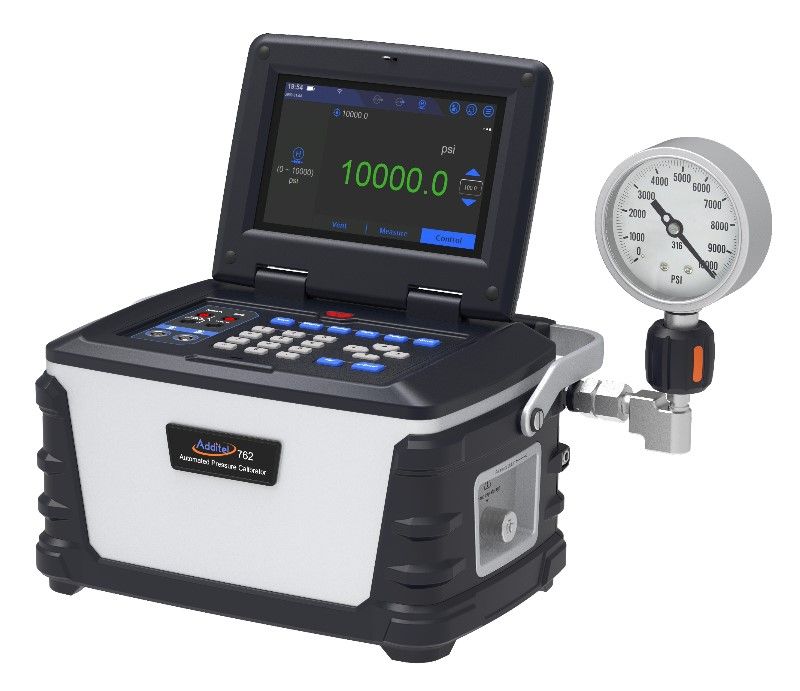

ADDITEL ADT762 Automated Hydraulic Pressure Calibrator
The Additel ADT762 Automated Hydraulic Pressure Calibrator is a groundbreaking solution for pressure calibration, capable of handling pressures up to 10,000 PSI. Designed for both field and laboratory use, it combines portability with exceptional accuracy. This state-of-the-art calibrator offers full automation for calibrating pressure transmitters, switches, gauges, and sensors, including HART/PROFIBUS devices. ADDITEL ADT762 Automated Hydraulic Pressure Calibrator can support up to 1000 documented tasks which can be stored and recalled at any time to help save time and money.
The Additel ADT762 features integrated task management, data collection, and Wi-Fi connectivity, catering to the diverse needs of lab personnel and field technicians. The ADT762 has the ability to automatically switch between diffe internal calibrations based on the control pressure, making it incredibly versatile. Moreover, its integrated auto-purge system simplifies hydraulic calibration processes, while a powerful documented calibration task application streamlines tasks and generates test reports. The Additel ADT762 Automated Hydraulic Pressure Calibrator also supports direct HART calibration, offering both automatic and manual modes, making it an all-in-one solution for pressure calibration needs.
Specifications for the ADDITEL ADT762 Automated Hydraulic Pressure Calibrator Include:
| Pressure Range | 15 - 10,000 psi (1-700 Bar) |
| Range Selection | Manual 3K psi, Manual 10K psi or Auto-Range |
| Max External Load Capacity | 80 ml@700 Bar, 50 ml recommend |
| Control Stability | 0.005%FS from 100 to 10,000 psi |
