Additel ADT875PC-155-A
| Attribut | Valeur |
|---|---|
| Plage de pression | 0 à 155 bar |
| Type de pression | Pression relative |
| Précision | 0,05% de la pleine échelle |
| Médium compatible | Huile, eau, gaz compatibles avec l'acier inoxydable 316L |
| Raccordement process | 1/4 NPT mâle |
| Raccordement électrique | Connecteur DIN 43650 |
| Signal de sortie | 4 à 20 mA |
| Alimentation électrique | 10 à 30 V CC |
| Température de fonctionnement | -20°C à +85°C |
| Indice de protection | IP65 |
Additel ADT875PC-155-A Options:
- ADT875PC-155-A - 110V - Power Option 110V
- ADT875PC-155-A - 220V - Power Option 220V
- ADT875PC-155-A - A - Insert Model A
- ADT875PC-155-A - B - Insert Model B
- ADT875PC-155-A - C - Insert Model C
- ADT875PC-155-A - D - Insert Model D
- ADT875PC-155-A - E - Insert Model E
- ADT875PC-155-A - F - Insert Model F
- ADT875PC-155-A - G - Insert Model G
- ADT875PC-155-A - H - Insert Model H
- ADT875PC-155-A - 9875-155-CYOR - Choose Your Own Range (CYOR) option for ADT875-155, Customize Range
- ADT875PC-155-A - HART - HART Communication (ADT875PC Model)
| Model | ADT875PC-155-A |
|---|

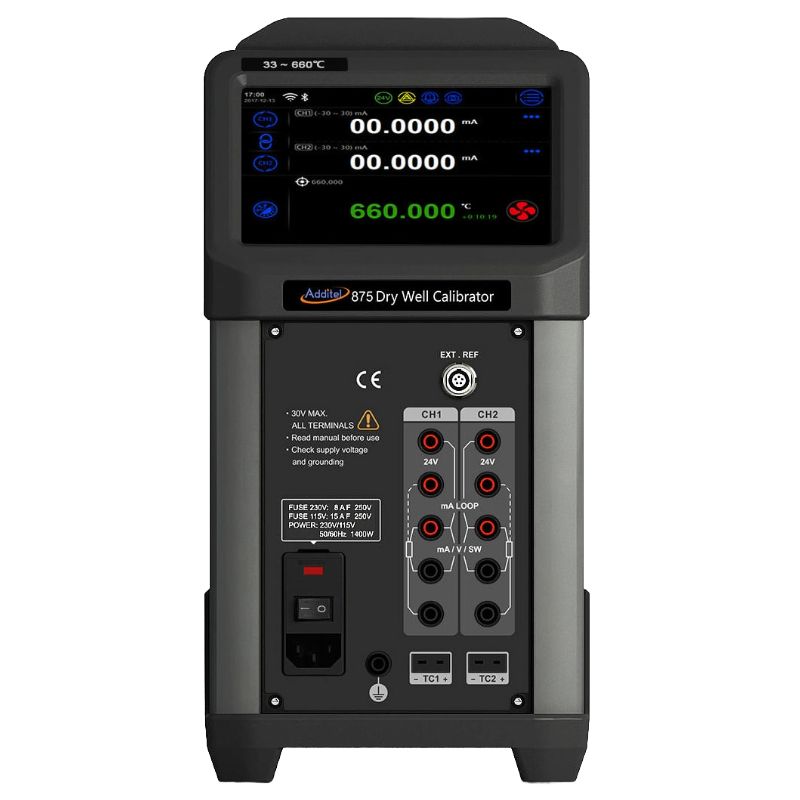

Additel ADT875PC-155-A Dry Well Calibrator
The Additel ADT875PC-155-A Dry Well Calibrator with Insert A and Process Calibrator Option, combines excellent performance in stability, radial and axial uniformity, and loading with speed, ruggedness and portability. The process calibrator option combines many features found in a fully functional HART documenting process calibrator with the temperature dry well. This option includes the ability to measure a reference PRT and two device under test channels which can measure, mA, voltage, switch, RTD or thermocouple. In addition to these measurement functions, this calibrator has full documenting capability of creating tasks, saving as found and as left results, and HART communication.
Additel ADT875PC-155-A Dry Well Calibrator has a built-in self-calibration feature allowing you to run an automated calibration of the internal control sensor using your external reference. With a few selections the calibration will run automatically giving you a fresh, traceable calibration of the control sensor which will improve its accuracy as you will not have to account for its long term drift when used as the reference. This portable and rugged dry well calibrator also features precise temperature control in both the main well and the reference well. ADT875PC-155-A Dry Well Calibrator is having user friendy interface with large color touchscreen display for easy operation and data viewing.
Specifications for the Additel ADT875PC-155-A Dry Well Calibrator Include:
| Temperature Range at 23 °C | -40 °C to 155 °C |
| Display Accuracy | ±0.18 °C at Full Range |
| Stability (30 min) | ±0.01 °C at Full Range |
| Axial Uniformity at 60 mm (2.4 in) | ±0.07 °C at Full Range |
