Additel ADT875PC-660-A
| Attribut | Valeur |
|---|---|
| Plage de pression | 0 à 660 bar |
| Type de pression | Pression manométrique |
| Précision | ±0,05% de la pleine échelle |
| Médium de pression compatible | Huile, eau, gaz compatible avec l'acier inoxydable |
| Raccordement process | 1/4 NPT mâle (acier inoxydable) |
| Sortie électrique | 4-20 mA / 0-5 V / 0-10 V |
| Alimentation électrique | 9 à 30 V DC |
| Température de fonctionnement | -20°C à +85°C |
| Matériaux en contact avec le fluide | Acier inoxydable 316L |
| Indice de protection | IP65 |
Additel ADT875PC-660-A Options:
- ADT875PC-660-A - 110V - Power Option 110V
- ADT875PC-660-A - 220V - Power Option 220V
- ADT875PC-660-A - A - Insert Model A
- ADT875PC-660-A - B - Insert Model B
- ADT875PC-660-A - C - Insert Model C
- ADT875PC-660-A - D - Insert Model D
- ADT875PC-660-A - E - Insert Model E
- ADT875PC-660-A - F - Insert Model F
- ADT875PC-660-A - G - Insert Model G
- ADT875PC-660-A - H - Insert Model H
- ADT875PC-660-A - 9875-660-CYOR - Range Selection for ADT875-660 Dry Well Calibrator, Customize Range (Choose Your Own Range)
- ADT875PC-660-A - HART - HART Communication Option (ADT875PC Model)
| Model | ADT875PC-660-A |
|---|

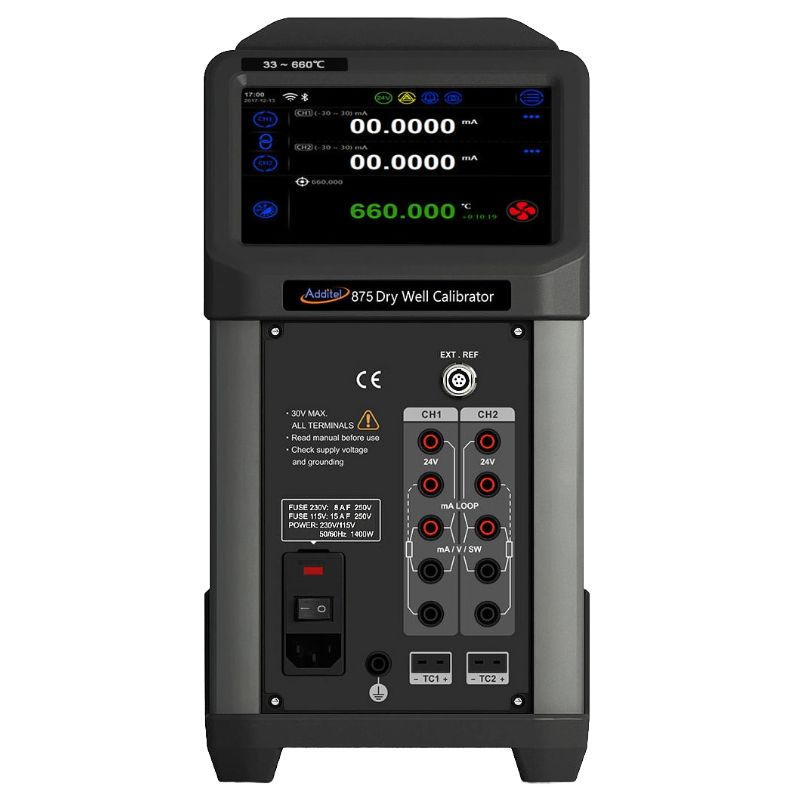

Additel ADT875PC-660-A Dry Well Calibrator
The Additel ADT875PC-660-A Dry Well Calibrator with Insert A and Process Calibrator Option, combines excellent performance in stability, radial and axial uniformity, and loading with speed, ruggedness and portability. The process calibrator option combines many features found in a fully functional HART documenting process calibrator with the temperature dry well. This option includes the ability to measure a reference PRT and two device under test channels which can measure, mA, voltage, switch, RTD or thermocouple. In addition to these measurement functions, Additel ADT875PC-660-A Dry Well Calibrator has full documenting capability of creating tasks, saving as found and as left results, and HART communication.
Additel ADT875PC-660-A Dry Well Calibrator has a built-in self-calibration feature allowing you to run an automated calibration of the internal control sensor using your external reference. With a few selections the calibration will run automatically giving you a fresh, traceable calibration of the control sensor which will improve its accuracy as you will not have to account for its long term drift when used as the reference. This portable and rugged dry well calibrator also features precise temperature control in both the main well and the reference well. ADT875PC-660-A Dry Well Calibrator is having user friendy interface with large color touchscreen display for easy operation and data viewing.
Specifications for the Additel ADT875PC-660-A Dry Well Calibrator Include:
| Temperature Range at 23 °C | 33 °C to 660 °C |
| Display Accuracy | ±0.5 °C at 660 °C |
| Stability (30 min) | ±0.04 °C at 660 °C |
| Axial Uniformity at 60 mm (2.4 in) | ±0.5 °C at 660 °C |
