Additel ADT927-N
| Attribut | Valeur |
|---|---|
| Plage de pression | 0 à 10 000 psi (0 à 700 bar) |
| Précision | 0,05% de la pleine échelle |
| Type de pression | Pression de jauge |
| Milieu compatible | Gaz et liquides compatibles avec l'acier inoxydable 316L |
| Raccord de pression | 1/4 NPT mâle (acier inoxydable) |
| Alimentation électrique | Batterie AA (4 x 1,5 V) ou alimentation externe 9-28 V DC |
| Signal de sortie | 4-20 mA / 0-5 V / 0-10 V (sélectionnable) |
| Température de fonctionnement | -20°C à 70°C (-4°F à 158°F) |
| Affichage | Écran LCD rétroéclairé haute résolution |
| Indice de protection | IP65 |
Additel ADT927-N Options:
- ADT927-N - N - 1/4NPT female pressure port
- ADT927-N - N2 - 1/2NPT female pressure port
- ADT927-N - B - 1/4BSP female pressure port
- ADT927-N - B2 - 1/2BSP female pressure port
- ADT927-N - M - M20X1.5 female pressure port
- ADT927-N - SET - Pump and carrying case included
- ADT927-N - W - Water media (deionized water) instead of default oil media
| Model | ADT927-N |
|---|

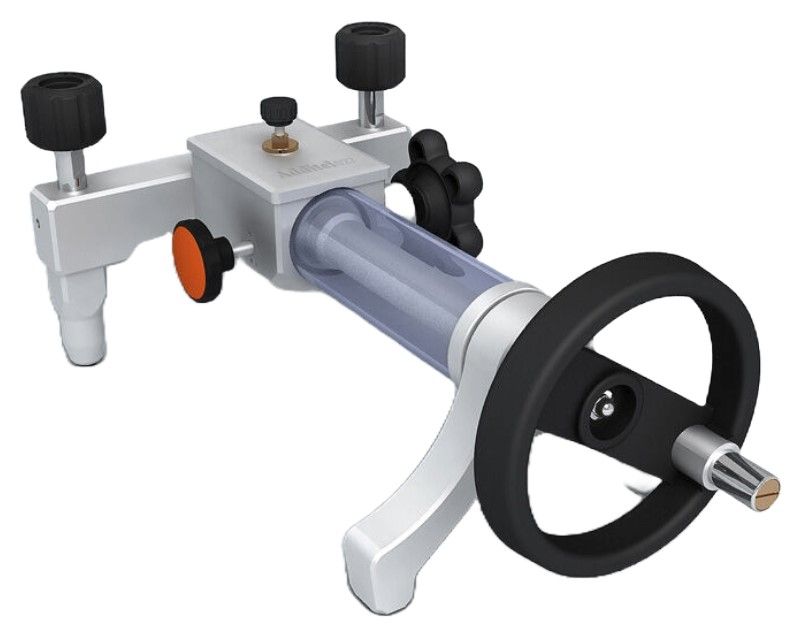

Additel ADT927-N 10,000PSI Hydraulic Test Pump
The Additel ADT927-N Hydraulic Test Pump is a hand operated pressure pump designed to generate pressure from 85% vacuum to 10,000 psi (700 bar). With the patented screw press technology, the high pressure can be easily generated, as well as increased and decreased smoothly.
Additel ADT927-N Hydraulic Test Pump is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers in the field or laboratory. With no check valve (non-returning valve), the ADT927-N avoids the troublesome leakage issues that is usually experienced with most hand pumps and allows for minimal maintenance. Two hand-tight quick connectors installed on the Additel ADT927-N Hydraulic press Test Pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches.
Specifications for the Additel ADT927-N 10,000PSI Hydraulic Test Pump Include:
| Generated Pressure Range | 85% vacuum to 10,000psi (700bar) |
| Reservoir capacity | 245 ml |
| Media | Oil or deionized water |
| Piston volume | 19 ml (Low pressure priston), 0.9 ml (High pressure priston) |
