Boonton PMX40
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 100 kHz – 40 GHz |
| Plage de puissance mesurable | -70 dBm à +20 dBm |
| Type de détecteur | Détecteur de puissance à diode |
| Connecteur RF | 2.92 mm (K-type), compatible SMA |
| Impédance d'entrée | 50 Ω |
| Temps de réponse | Inférieur à 1 µs (mode haute vitesse) |
| Incertitude de mesure | ±0,5 dB (typique sur toute la plage) |
| Interface de communication | USB, compatible GPIB via adaptateur |
| Alimentation | Alimenté par port USB (bus USB 2.0) |
| Compatibilité logicielle | Compatible Boonton Power Analyzer, LabVIEW, MATLAB |
Boonton PMX40 Options:
- PMX40 - 4CH - Adds 2 Active Channels (for a total of 4)
- PMX40 - GPIB - GPIB Control (internally installed)
- PMX40 - RTS - Moves Test Source output to the rear panel
| Model | PMX40 |
|---|

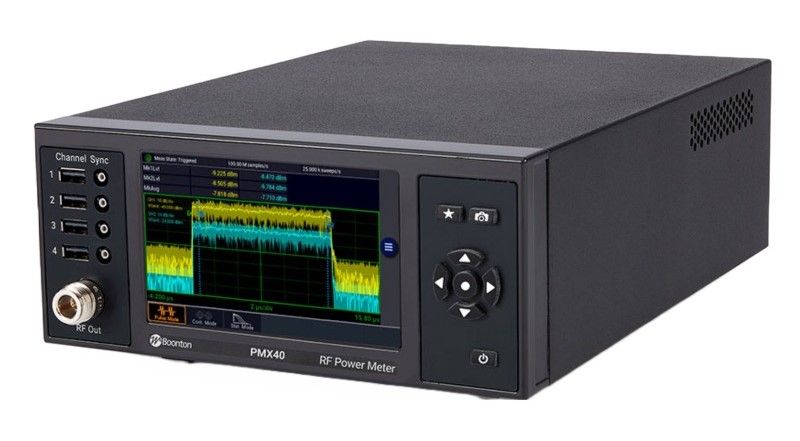

BOONTON PMX40 RF Power Meter
As a benchtop meter, the Boonton PMX40 provides a standalone solution for capturing, displaying, and analyzing peak and average RF power in both the time and statistical domains through an intuitive, multi-touch touchscreen display. The PMX40's intuitive, multi-touch display enables fast configuration of up to four sensors as well as easy access to measurement and analysis tools, providing a standalone solution for capturing, displaying, and analyzing peak and average RF power in both the time and statistical domains. The PMX40 offers the widest video bandwidth (195 MHz) making it ideal for measuring 80 MHz, 100 MHz, and 160 MHz channels.
The Boonton PMX40 Power Meter utilizes Boonton RTP and CPS families of USB RF power sensors with industry leading performance and capabilities. All RTP sensors incorporate the unique Boonton Real-Time Power Processing ™ technology, which virtually eliminates gaps in measurement suffered by other power sensors and enables industry best measurement speeds. The PMX40 enables packet power measurements to be performed independently on multiple synchronous or asynchronous transmit chains with a common timebase shared among sensors. The PMX40 can be used to easily and accurately capture SSR waveforms, and an industry-leading rise time enables characterization of the most demanding radar signals.
Specifications for the BOONTON PMX40 RF Power Meter Include:
| Frequency Range | 4 kHz to 40 GHz |
| Video Bandwidth | 195 MHz |
| Rise Time | 3 ns |
| Channels | up to 4 |
