Boonton RTP5318
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 50 MHz – 18 GHz |
| Plage de puissance | -35 dBm à +20 dBm |
| Type de capteur | Capteur de puissance RF à diode |
| Connecteur d'entrée | Type N (mâle) |
| Impédance d'entrée | 50 Ohms |
| Temps de montée | 13 ns |
| Interface de communication | USB |
| Tension maximale d'entrée | +20 dBm (100 mW) |
| Température de fonctionnement | 0 °C à +55 °C |
| Compatibilité logicielle | Compatible avec Boonton Power Analyzer et VISA |
Boonton RTP5318 Options:
- RTP5318 - ACAL0 - 17025 Accredited Calibration for RTP5318
- RTP5318 - CAL1 - Prepaid Z540 Calibration for RTP5318
- RTP5318 - ACAL1 - Prepaid 17025 Accredited Calibration for RTP5318
- RTP5318 - CARE1 - Prepaid Z540 Calibration and Repair for RTP5318
| Model | RTP5318 |
|---|

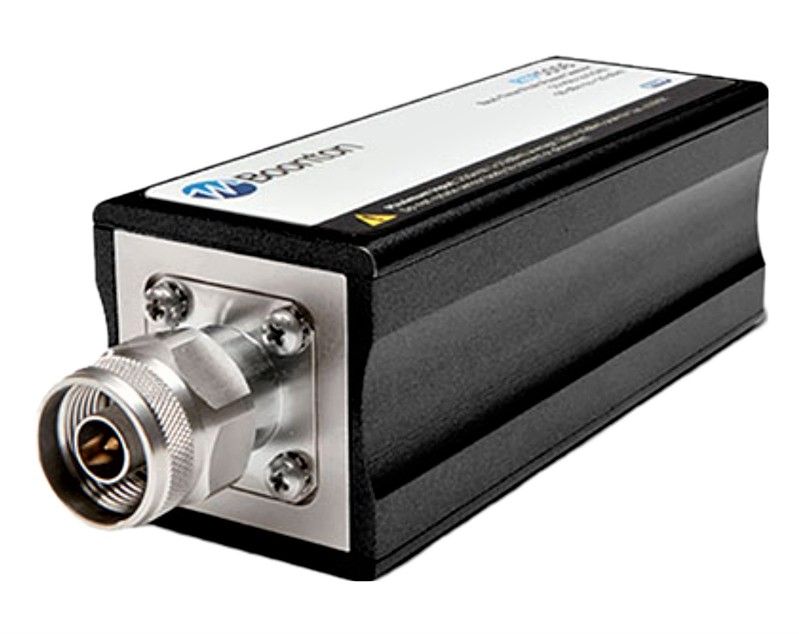

BOONTON RTP5318 Real-Time Peak Power Sensor
The Boonton RTP5318 Real-Time Peak Power Sensors are the performance leaders in RF and microwave peak power measurement. They offer industry-leading performance with the widest video bandwidth, fastest rise times, finest time resolution, narrowest minimum pulse widths, highest pulse repetition rates, and superior measurement reading rates. In addition, the RTP5318 sensors incorporate Boonton's unique Real-Time Power Processing technology. The RTP5318 features 100 ps time base resolution and with an acquisition rate up to 100 MSPS, can provide 50 points per division with a time base range as low as 5 ns / division.
With superior performance and a small form factor, the Boonton RTP5318 is ideal for many purposes ranging from design and verification, through manufacturing, to field installation and maintenance. The sensors are trusted by engineers and technicians at industry-leadering companies to measure pulsed, bursted, and/or modulated signals used in commercial and military radar, electronic warfare (EW), wireless communications (e.g., LTE, LTE-A, and 5G), and consumer electronics (WLAN), as well as education and research applications. To simplify test, the RTP5318 can measure and calculate 16 common power and timing parameters and display the parameters of interest, including rise time, fall time, pulse average, overshoot, and droop.
Specifications for the BOONTON RTP5318 Real-Time Peak Power Sensor Include:
| Frequency Range | 50 MHz to 18 GHz |
| Dynamic Range (avg) | -34 to +20 dBm |
| Rise time (fast/std) | 5 ns / < 10 µs |
| Video Bandwidth (high/std) | 70 MHz / 350 kHz |
