Chroma
Chroma 10533
SoftPanels for Chroma 63600 series Loads
GPIB / USB Type d'interface
0 à 250 V CA Tension de sortie
4 A Courant de sortie maximum
500 VA Puissance de sortie maximum
45 Hz à 500 Hz Fréquence de sortie
| Attribut | Valeur |
|---|---|
| Type d'interface | GPIB / USB |
| Tension de sortie | 0 à 250 V CA |
| Courant de sortie maximum | 4 A |
| Puissance de sortie maximum | 500 VA |
| Fréquence de sortie | 45 Hz à 500 Hz |
| Résolution de tension | 0,1 V |
| Résolution de fréquence | 0,1 Hz |
| Distorsion harmonique totale | ≤ 0,5 % |
| Dimensions (L x H x P) | 213 mm x 88 mm x 350 mm |
| Poids | 8 kg |
Chroma 63600 Options:
- 63600 - 63600-1 - Mainframe for single module
- 63600 - 63600-2 - Mainframe for 2 modules
- 63600 - 63600-5 - Mainframe for 5 modules (Max. 10 channels)
- 63600 - 63601-5 - Mainframe for 5 modules (Only one slot for dual channel load module, max. 6 channels)
- 63600 - 63610-80-20 - DC load module, 80V/20A/100Wx2
- 63600 - 63630-80-60 - DC load module, 80V/60A/300W
- 63600 - 63630-600-15 - DC load module, 600V/15A/300W
- 63600 - 63640-80-80 - DC load module, 80V/80A/400W
- 63600 - 63640-150-60 - DC load module, 150V/60A/400W
- 63600 - A636000 - GPIB interface for 63600-2/63600-5/63601-5 mainframe
- 63600 - A636001 - Ethernet interface for 63600-2/63600-5 mainframe
- 63600 - A636003 - External signal board (test pin) for 63600-2/63600-5/63601-5 mainframe
- 63600 - A636005 - External signal board (BNC) for 63600-2/63600-5/63601-5 mainframe
- 63600 - A636007 - Rack mounting kit for 63600-2 mainframe
- 63600 - A636008 - Rack mounting kit for 63600-5/63601-5 mainframe (for Europe only)
- 63600 - A636010 - Ethernet interface for 63601-5 mainframe
- 63600 - A632006 - NI USB-6211 bus-powered multifunction DAQ
| Model | 10533 |
|---|

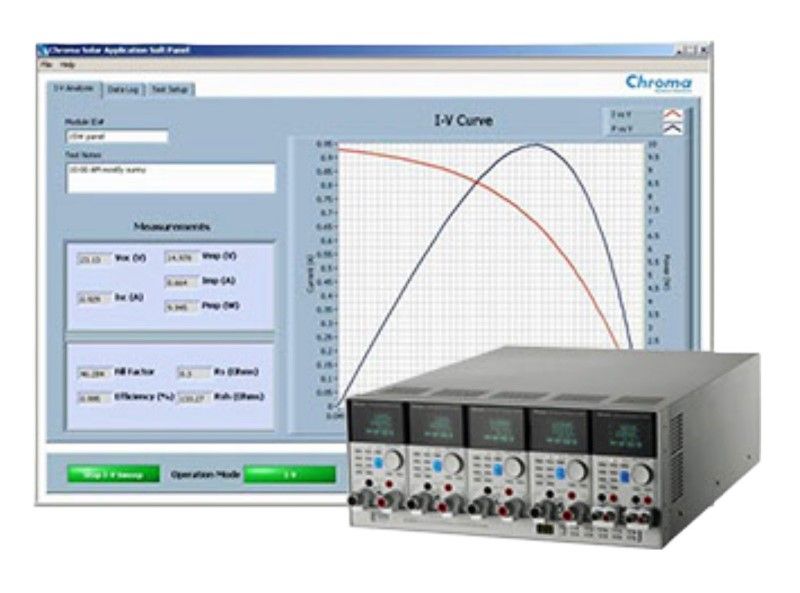

CHROMA 10533
The Chroma 10533 Softpanel (SoftWare) is a graphical user interface which provides extraordinary capability and convenience to user for delivering control to the unit. The 10533 Softpanel is designed specifically for offering users control of the 63600 series of DC Loads by applying a user friendly interface configured in graphical, instrument like settings. The self explanatory graphical interface makes enabling of the extensive functions of the DC Load easy with just few clicks of a button. Users are able to perform online and offline waveform editing with the implementation of the softpanel. The softpanel is also equipped with data recording functions as multiple measurement data can be recorded simultaneously.
