Chroma 10658
| Attribut | Valeur |
|---|---|
| Tension de sortie | 0 - 80 V CC |
| Courant de sortie | 0 - 60 A |
| Puissance maximale | 1 080 W |
| Résolution de tension | 10 mV |
| Résolution de courant | 10 mA |
| Interface de communication | GPIB / RS-232 |
| Tension d'alimentation | 100 - 240 V CA, 50/60 Hz |
| Dimensions (L x H x P) | 425 x 88 x 550 mm |
| Poids | Environ 20 kg |
| Température de fonctionnement | 0 °C à 40 °C |
Chroma 10658 Options:
- 10658 - 62006P-30-80 - Programmable DC Power Supply, 30V/80A/600W
- 10658 - 62006P-100-25 - Programmable DC Power Supply, 100V/25A/600W
- 10658 - 62006P-300-8 - Programmable DC Power Supply, 300V/8A/600W
- 10658 - 62012P-40-120 - Programmable DC Power Supply, 40V/120A/1200W
- 10658 - 62012P-80-60 - Programmable DC Power Supply, 80V/60A/1200W
- 10658 - 62012P-100-50 - Programmable DC Power Supply, 100V/50A/1200W
- 10658 - 62012P-600-8 - Programmable DC Power Supply, 600V/8A/1200W
- 10658 - 62024P-40-120 - Programmable DC Power Supply, 40V/120A/2400W
- 10658 - 62024P-80-60 - Programmable DC Power Supply, 80V/60A/2400W
- 10658 - 62024P-100-50 - Programmable DC Power Supply, 100V/50A/2400W
- 10658 - 62024P-600-8 - Programmable DC Power Supply, 600V/8A/2400W
- 10658 - 62050P-100-100 - Programmable DC Power Supply, 100V/100A/5000W
- 10658 - A620004 - GPIB Interface for Model 62000P Series
- 10658 - A620006 - Rack Mounting Kit for Model 62000P Series (2U model)
- 10658 - A620009 - Softpanel for 62000P Series
- 10658 - A620015 - Rack Mounting Kit for Model 62050P-100-100
- 10658 - A620023 - Ethernet/LXI Interface for Model 62000P Series
| Model | 10658 |
|---|
CHROMA 10658 Softpanel Kit for 62000P/62000H Series Power Supplies

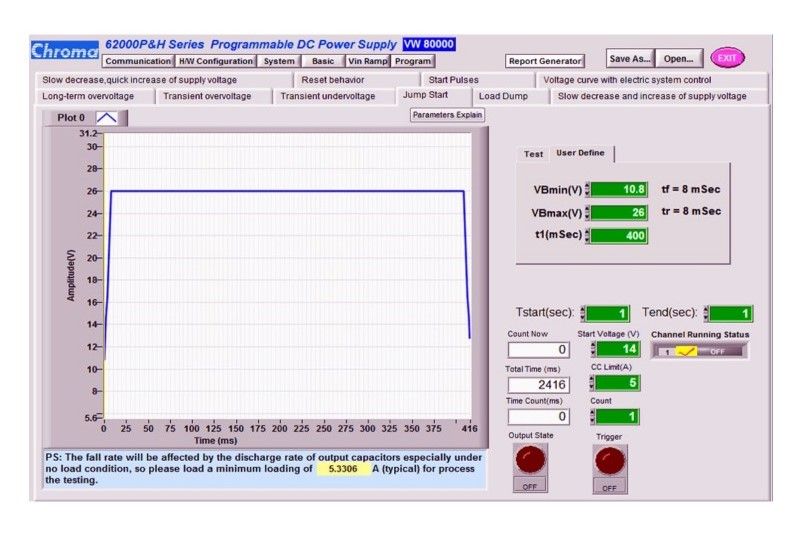

Chroma SoftPanels make bench DVT testing easy. Dedicated PC control for individual instruments provides quicker connection and configuration in getting your test sequence up and running faster. With communication via USB, LAN, GPIB or RS-232 interface, SoftPanels give you access to all of the features and functions of the 62000P/62000H series DC Power Supplies. Your saved configurations are easily accessible shortening test time and measurements are presented in an easy to read graphical interface. Easily build and call up test sequences intuitively without any programming knowledge. All programming is done by entering values, selecting drop-down menus, and clicking buttons and toggles. Your device settings are saved to device memory and can be recalled the next time you power up. Test parameters are saved to your hard drive and recalled by simply opening your saved file. Get easy access to data, graphs, and save detailed report data for analysis. Data can be exported with a specified path and filename and viewed within a few clicks.
