ETS Lindgren HI-4433-STE / HI-443
| Fabricant | ETS Lindgren |
| Modèle | HI-4433-STE / HI-443 |
| Produit | Electric Field Probe / Magnetic Field Probe Kit |
| Type | Produit Reconditionné |

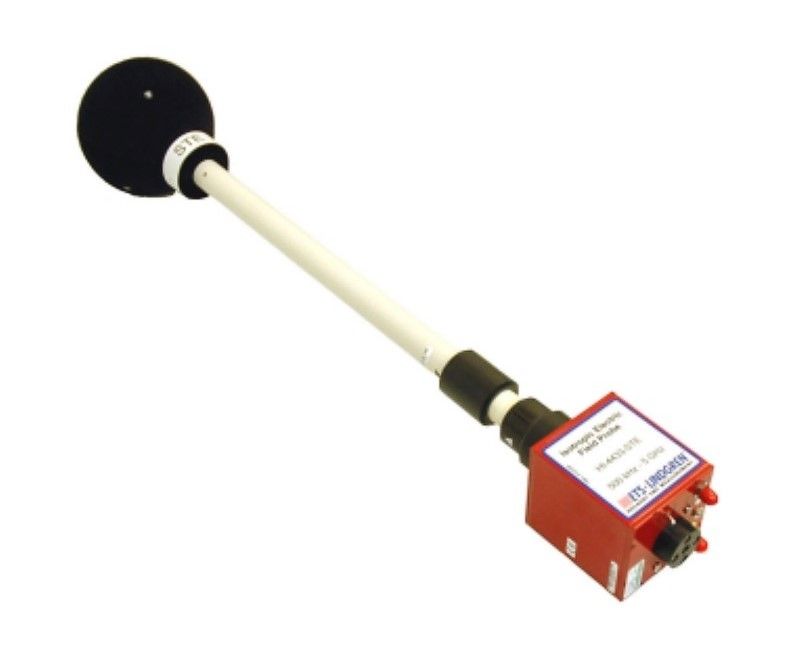

The Holaday ETS-Lindgren HI-4433-STE Electric Field Probe features:
Key Features
- Automatic Continuous Zeroing
- Data from each axis can be viewed individually
- Fiber Optic Technology
- For use with HI-4460 and HI-4416 Readouts, HI-4413P RS232 Fiber Optic Modem
Description
This Automatic Continuous Zeroing feature removes the need for internal zero adjustment and eliminates temperature drift errors associated with other instrumentation. The Automatic Zero feature allows the meter to be used immediately upon power-up, and eliminates concerns about finding a zero.
Standard Configuration
- Fast Battery Charger Included
Options
- Carrying Case
- Data can be viewed via ProbeView ™ EMF Analysis Software
- HI-4413P Optical Modem
- HI-4416 Digital Remote Readout
- HI-4460 Graphical Display
Electrical Specifications
|
Frequency Minimum |
500 kHz |
|
Frequency Maximum |
5 GHz |
|
Battery |
20 Hours Continuous Operations |
|
Calibration Accuracy |
absolute accuracy +/- 1.0 dB |
|
Data Sample Rate |
1 - 24 Samples per Second |
|
Detection |
Isotropic |
|
Dynamic Range |
30 - 3000 V/m |
|
Isotropic Deviation |
+/- 0.5 dB |
|
Linearity |
+/- 0.5 dB full scale |
|
Response Time |
86 msec (min) |
The Holaday ETS-Lindgren HI-4433-LFH Magnetic Field Probe features:
Key Features
- Automatic Continuous Zeroing
- Data from each axis can be viewed individually
- Dynamic Range down to 300 mA/m
- Fiber Optic Technology
- For use with HI-4460 and HI-4416 Readouts, HI-4413P RS232 Fiber Optic Modem
- Magnetic Field Sensing 300 kHz - 30 MHz
Description
This Automatic Continuous Zeroing feature removes the need for internal zero adjustment and eliminates temperature drift errors associated with other instrumentation. The Automatic Zero feature allows the meter to be used immediately upon power-up, and eliminates concerns about finding a zero.
Standard Configuration
- Fast Battery Charger Included
Options
- Carrying Case
- Data can be viewed via ProbeView ™ EMF Analysis Software
- HI-4413P Optical Modem
- HI-4416 Digital Remote Readout
- HI-4460 Graphical Display
Electrical Specifications
|
Frequency Minimum |
300 kHz |
|
Frequency Maximum |
30 MHz |
|
Battery |
20 Hours Continuous Operations |
|
Calibration Accuracy |
absolute accuracy +/- 1.0 dB |
|
Data Sample Rate |
1 - 24 Samples per Second |
|
Detection |
Isotropic |
|
Dynamic Range |
0.3 - 30 A/m |
|
Isotropic Deviation |
+/- 0.5 dB |
|
Linearity |
+/- 0.5 dB full scale |
|
Response Time |
86 msec (min) |
The Holaday ETS-Lindgren HI-4416 EMF Readout Unit features:
Key Features
- Data Logging and Peak Hold Features
- Recorder Output
- User Selectable Readout Units
Description
The optical isolation minimizes field perturbations, allows for highly accurate readings and provides free positioning of the probe without hindering the user interface.
The instrument has on-board recording features enabling accurate and fast data collection. Up to 150 field readings can be stored for review. Other features include continual peak (max) value storage and display, units selection, (auto) range selection, individual axis field readings and bar graph for "hot spot" determinations.
Standard Configuration
- Basic Probe Communications Software Included
- Battery Charger
- Carrying Case
Options
- ProbeView ™ EMF Software (Windows)
Specifications
|
Battery |
NiCad, approx. 80 hrs. on full charge |
|
Data Logging |
115 point scratch-pad datalogging |
|
Recorder Output |
0 - 1 VDC proportional to full scale reading |
|
Units |
V/m, V2/m2, A/m, A2/m2, mW/cm2 (Depending on probe) |
