Exfo

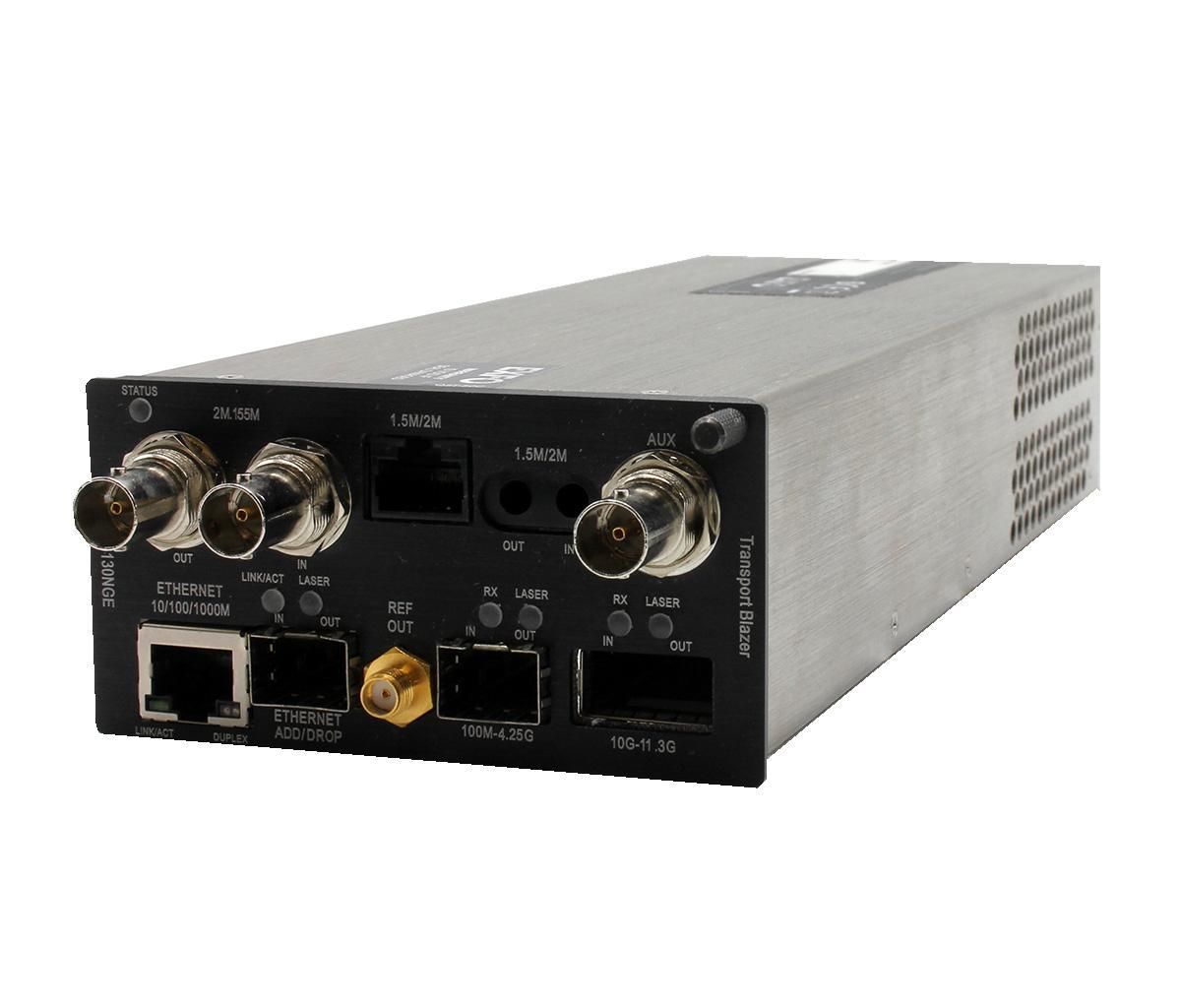

Exfo FTB-8130NGE-100
10 GB SONET/SDH/Ethernet Module
100 Gigabit Ethernet (100GbE) Débit de données
100GBASE-LR4 / ER4 / SR10 Interface de test
CFP Type de connecteur
Ethernet, OTN (OTU4) Protocoles pris en charge
EXFO FTB-500 / FTB-200 v2 Plateforme compatible
| Attribut | Valeur |
|---|---|
| Débit de données | 100 Gigabit Ethernet (100GbE) |
| Interface de test | 100GBASE-LR4 / ER4 / SR10 |
| Type de connecteur | CFP |
| Protocoles pris en charge | Ethernet, OTN (OTU4) |
| Plateforme compatible | EXFO FTB-500 / FTB-200 v2 |
| Capacité de génération de trafic | Génération et analyse de trafic à 100 Gbps en temps réel |
| Mesures de performance | Débit, latence, gigue, perte de trames (RFC 2544 / Y.1564) |
| Longueur d'onde d'émission | 1295,56 nm – 1309,14 nm (LR4) |
| Alimentation | Fournie via le châssis EXFO FTB compatible |
| Conditions d'utilisation | Température de fonctionnement : 0 °C à +40 °C |
Exfo FTB-8130NGE-100 Options:
- FTB-8130NGE-100 - SONET-BASE-SW - SONET test option
- FTB-8130NGE-100 - SDH-BASE-SW - SDH test option
- FTB-8130NGE-100 - SONET-SDH - Software option for combined SONET/SDH functionality
- FTB-8130NGE-100 - 155 - 155 Mbit/s rate option (OC-3/STM-1)
- FTB-8130NGE-100 - 622 - 622 Mbit/s rate option (OC-12/STM-4)
- FTB-8130NGE-100 - 2.5G - 2.5/2.7 Gbit/s rate option (OC-48/STM-16, OTU1)
- FTB-8130NGE-100 - 10G - 10/10.7 Gbit/s rate option (OC-192/STM-64, OTU2)
- FTB-8130NGE-100 - G.747 - Enables E1/2M in DS3/45M analysis, as per ITU-T G.747 recommendation
- FTB-8130NGE-100 - DS1-FDL - DS1 Facility Data Link option
- FTB-8130NGE-100 - DUAL RX - Dual receiver option
- FTB-8130NGE-100 - SMART-MODE - SmartMode real-time signal structure discovery and monitoring
- FTB-8130NGE-100 - TCM - Tandem connection monitoring
- FTB-8130NGE-100 - OTU1 - OTN optical rate 2.7 Gbit/s
- FTB-8130NGE-100 - OTU2 - OTN optical rate 10.7 Gbit/s
- FTB-8130NGE-100 - ODUMUX - ODU MUX functionality (must be combined with OTU1 and OTU2)
- FTB-8130NGE-100 - 100optical - 100 Mbit/s optical Ethernet
- FTB-8130NGE-100 - 00 - Without next-gen software
- FTB-8130NGE-100 - HO-VCAT - High-order virtual concatenation
- FTB-8130NGE-100 - LO-VCAT - Low-order virtual concatenation
- FTB-8130NGE-100 - LCAS - Link capacity adjustment scheme (must be combined with HO-VCAT or LO-VCAT option)
- FTB-8130NGE-100 - GFP-F - Generic framing procedure—framed
- FTB-8130NGE-100 - EoS - Ethernet-over-SONET/SDH (must be combined with GFP-F option)
- FTB-8130NGE-100 - FTB-8190 - Multirate (155/622 Mbit/s, 2.5/2.7 Gbit/s, GigE/FC/2FC) optical SFP transceiver module; LC connector; 1310 nm; 15 km reach (SFP test port)
- FTB-8130NGE-100 - FTB-8191 - Multirate (155/622 Mbit/s, 2.5/2.7 Gbit/s, GigE/FC/2FC) optical SFP transceiver module; LC connector; 1310 nm; 40 km reach (SFP test port)
- FTB-8130NGE-100 - FTB-8192 - Multirate (155/622 Mbit/s, 2.5/2.7 Gbit/s, GigE/FC/2FC) optical SFP transceiver module; LC connector; 1550 nm; 80 km reach (SFP test port)
- FTB-8130NGE-100 - FTB-8193 - Multirate (155/622 Mbit/s, 2.5/2.7 Gbit/s, GigE/FC/2FC) optical SFP transceiver module; LC connector; 1550 nm; 40 km reach (SFP test port)
- FTB-8130NGE-100 - FTB-8590 - GigE/FC/2FC optical SFP transceiver module; LC connector; 850 nm; MMF; <500 m reach (SFP Ethernet add/drop)
- FTB-8130NGE-100 - FTB-8591 - GigE/FC/2FC optical SFP transceiver module; LC connector; 1310 nm; 10 km reach (SFP Ethernet add/drop)
- FTB-8130NGE-100 - FTB-8592 - GigE/FC/2FC optical SFP transceiver module; LC connector; 1550 nm; 90 km reach (SFP Ethernet add/drop)
- FTB-8130NGE-100 - FTB-81900 - Multirate (10/10.7 Gbit/s) optical XFP transceiver module; LC connector; 1310 nm; 10 km reach
- FTB-8130NGE-100 - FTB-81901 - Multirate (10/10.7 Gbit/s) optical XFP transceiver module; LC connector; 1550 nm; 40 km reach
- FTB-8130NGE-100 - FTB-81902 - Multirate (10/10.7 Gbit/s) optical XFP transceiver module; LC connector; 1550 nm; 80 km reach
- FTB-8130NGE-100 - FTB-85900 - 10GBase-SR/-SW (850 nm, LAN/WAN PHY) LC connectors; optical XFP transceiver module
- FTB-8130NGE-100 - FTB-85901 - 10GBase-LR/-LW (1310 nm, LAN/WAN PHY) LC connectors; optical XFP transceiver module
- FTB-8130NGE-100 - FTB-85902 - 10GBase-ER/-EW (1550 nm, LAN/WAN PHY) LC connectors; optical XFP transceiver module
| Model | FTB-8130NGE-100 |
|---|
Fully integrated test solution supporting next-generation SONET/SDH, optical transport network (OTN) and Ethernet test functions1GE,10GE, DS0/E0 to OC-192/STM-64/OTU-2; 10 Mbit/s to 1000 Mbit/s as well as 10 Gbit/s LAN/WAN testing in the industry's smallest form factor Fully integrated solution for assessing the performance of Ethernet transport networks, including RFC 2544 and BERtest functionalities OTN forward error correction (FEC) and ODU1 into ODU2 multiplex testing capabilities as per ITU-T G.709 Ethernet-over-SONET/SDH (EoS) testing via optional support for GFP, VCAT and LCAS Platform Compatibility FTB-400 Universal Test System FTB-200 Compact Platform.
