Fischer Custom Communications BCICF-1

Fischer Custom Communications  BCICF-1

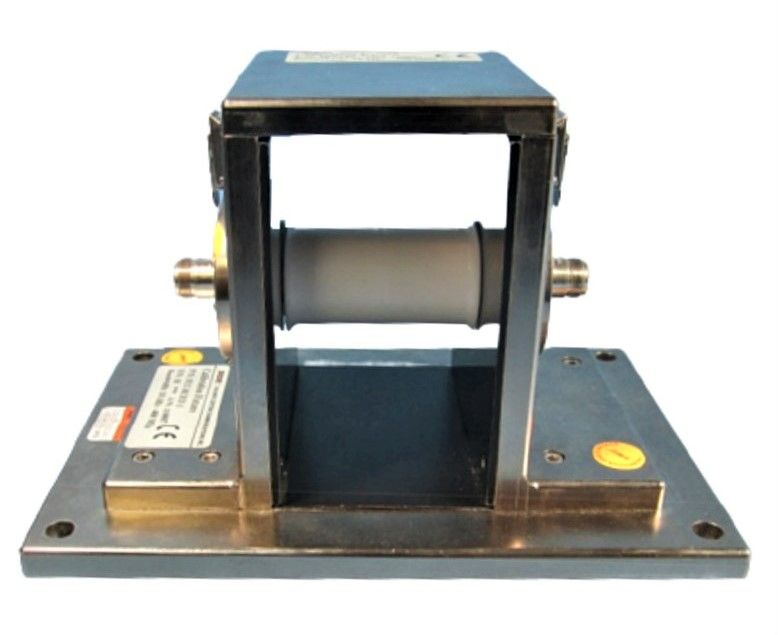

The Fischer Custom Communications  FCC-BCICF-1 Bulk Cur Injection Calibration Fixture allows EMC Engineers and Technicians to quickly and easily calibrate injection probes prior to performing their compliance tests. Injection Probe calibration fixtures are a part of the test equipment required by most of the Bulk cur Injection Test Procedure Specifications. The Fischer BCIF-1 exceeds DO-160, Section 20 VSWR fixture requirements for stand-alone injection probe calibration fixture.

The BCICF-1 Calibration Fixture is used to establish the forward power into the injection probe needed to develop the specified currents in the system under test,  necessitated by  variable circuit impedances or resonances in cables and cable looms.

The BCICF-1 is used to calibrate the following Injection Probes:  F-120-1, F-120-2, F-120-3, F-120-3B, F-120-6, F-120-6A, F-120-9, F-120-9B, F-130A, F-130-1, F-130-1A, F-130A-1, F-100701-1008-1, F-100903-1008-1, F-100602-1008-1.
